Hyster HR45-25, HR45-27, HR45-31, HR45-36L, HR45-40LS, HR45-40S, HR45-45LSX (B227) Forklift Parts Manual
These HR45 reach stackers spend their lives loading and stacking containers in rough yards, ports, and rail terminals, so parts get hammered by dust, twist, and heavy lifts. This parts manual is what I use to match what I’m seeing on the machine to the correct Hyster part callout, especially when options and revisions differ between HR45-25, HR45-27, HR45-31, HR45-36L, HR45-40LS, HR45-40S, and HR45-45LSX. If, for example, I’m tracing a hydraulic leak in the boom circuit or isolating a damaged spreader component, this book lets me positively identify the exact valve body, hose, or bracket before I place an order.
Applications & Use Cases
- Confirm correct components when tearing down boom, spreader, or mast assemblies so you don’t mix up similar-looking pins, shims, or cylinders.
- Cross-check configuration differences between the HR45 variants when you’re swapping parts from another unit or a donor machine.
- Verify superseded or updated parts with the illustrated breakdowns before ordering, reducing returns and downtime.
- Trace hose and harness routing so you can route replacements cleanly and avoid rubbing or pinch points.
- Label and bag parts during overhaul, using the manual’s naming to keep hardware and subassemblies organized for reassembly.
FAQ
Q: Can I use this manual on a tablet in the yard?
A: Yes, it’s practical to keep a digital copy on a tablet or laptop so you can zoom in on diagrams right beside the truck.
Q: Is this useful if I only need one small fitting or sensor?

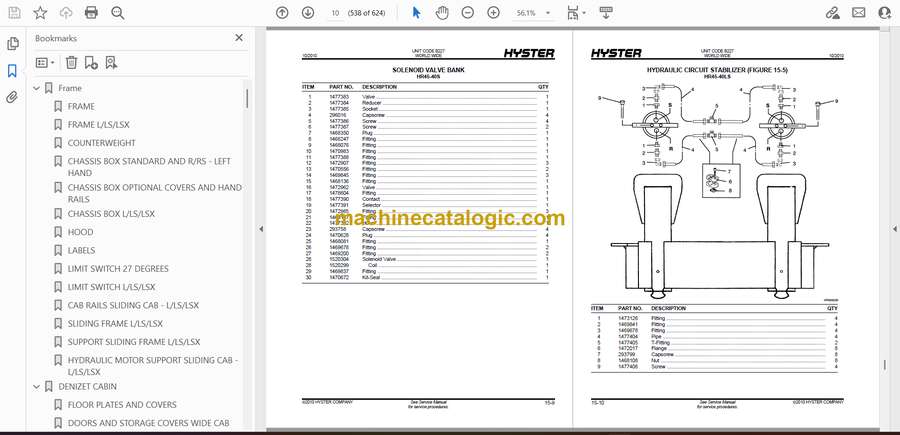

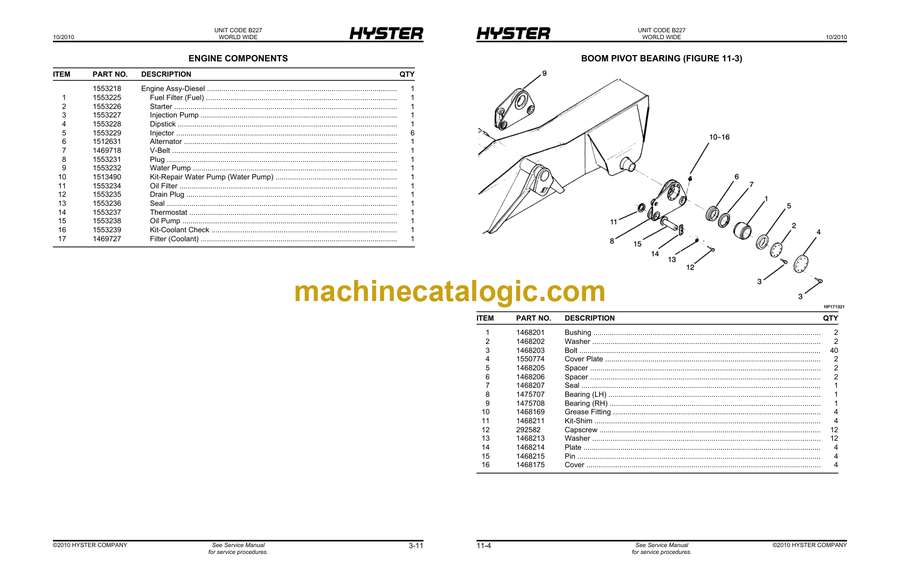

A: Very much so; you can follow the exploded views to the exact subcomponent and avoid guessing at similar fittings or connectors.
Safety Note
Always lock out, support, and isolate the reach stacker safely before inspecting or matching any parts from this manual.
📘 Show Index
Hyster HR45-25, HR45-27, HR45-31, HR45-36L, HR45-40LS, HR45-40S, HR45-45LSX (B227) Forklift Parts Manual Index:
- Frame
- FRAME
- FRAME L/LS/LSX
- COUNTERWEIGHT
- CHASSIS BOX STANDARD AND R/RS – LEFT HAND
- CHASSIS BOX OPTIONAL COVERS AND HAND RAILS
- CHASSIS BOX L/LS/LSX
- HOOD
- LABELS
- LIMIT SWITCH 27 DEGREES
- LIMIT SWITCH L/LS/LSX
- CAB RAILS SLIDING CAB – L/LS/LSX
- SLIDING FRAME L/LS/LSX
- SUPPORT SLIDING FRAME L/LS/LSX
- HYDRAULIC MOTOR SUPPORT SLIDING CAB – L/LS/LSX
- DENIZET CABIN
- FLOOR PLATES AND COVERS
- DOORS AND STORAGE COVERS WIDE CAB
- CAB SUPPORT STANDARD AND R/RS
- SEAT
- CABIN GLASS AND WIPERS WIDE CAB
- AIR CONDITIONER WIDE CAB
- AIR CONDITIONER SLIDING CAB – PRESSURIZED
- PEDAL ARRANGEMENT WIDE FIXED CAB
- PEDAL ARRANGEMENT SLIDING CAB
- INSTRUMENT PANEL WIDE CAB – STANDARD AND R/RS
- INSTRUMENT PANEL L/LS/LSX – PRESSURIZED
- CIRCUIT BREAKERS WIDE FIXED CAB – PRESSURIZED
- CABIN PRESSURIZATION FIXED CABIN
- ENGINE(S)
- AIR FILTER
- EXHAUST
- ENGINE MOUNTING AND ACCESSORIES
- ENGINE WIRING AND FITTINGS
- ENGINE COMPONENTS
- FUEL CIRCUIT AND FAN PUMP SUPPLY
- FAN PUMP
- FUSE BOX
- ENGINE COOLING SYSTEM
- ENGINE INTAKE COOLING
- ENGINE AND TRANSMISSION COOLING
- RADIATOR AND FITTINGS
- TRANSMISSION COOLING LINES
- HYDRAULIC AND BRAKE COOLING
- RADIATOR FITTINGS HYDRAULICS AND BRAKE COOLING
- PUMP CONNECTIONS
- HYDRAULIC FILTERING CIRCUIT
- ELECTRICAL SYSTEM
- WIRE HARNESS MAIN FRAME
- WIRE HARNESS MAIN FRAME – L/LS/LSX
- WIRE HARNESS CAB
- WIRE HARNESS ENGINE
- WIRE HARNESS TRANSMISSION
- LIGHTS AND HAND RAIL STANDARD AND R/RS
- LIGHTS L/LS/LSX (→ S/N B227O01510)
- LIGHTS L/LS/LSX (S/N B227O01511 →)
- FUSES AND RELAYS WIDE FIXED CAB – STANDARD AND R/RS
- FUSES AND RELAYS SLIDING CAB – PRESSURIZED
- INTERIOR COWLING WIDE FIXED CAB
- INTERIOR COWLING SLIDING CAB – WIDE
- CONTROLLER APC 100
- LOAD LIMITER
- BATTERY
- TRANSMISSION
- CONVERTER HOUSING ASSEMBLY
- TRANSMISSION CASE AND REAR COVER
- PUMP DRIVE AND SHAFT
- TORQUE CONVERTER AND DRIVE PLATE
- CLUTCH FORWARD
- CLUTCH THIRD SPEED
- CLUTCH REVERSE AND 2ND SHAFT
- CLUTCH LOW SPEED
- CLUTCH FOURTH SPEED
- CHARGE PUMP AND REGULATOR
- ELECTRIC CONTROL VALVE ELECTRONIC INCHING
- HYDRAULIC CONTROL VALVE HYDRAULIC INCHING
- FILTER TRANSMISSION OIL HR45-25, HR45-31, HR45-40S
- CHARGE PUMP FLANGE HR45-25, HR45-31, HR45-40S
- FILTER PUMP CIRCUIT L/LS/LSX
- Drive Axle
- DIFFERENTIAL AND PARK BRAKE
- DRIVE AXLE AND END DRIVE
- DRIVE AXLE CONNECTIONS
- DRIVE AXLE U-JOINT
- DRIVE AXLE U-JOINT L/LS/LSX
- COOLING CIRCUIT DRIVE AXLE HR45-25, HR45-31, HR45-40S
- COOLING CIRCUIT DRIVE AXLE L/LS/LSX
- STEERING SYSTEM
- ANTI TIPPING SWITCH
- STEER AXLE MOUNTING STANDARD
- STEER AXLE MOUNTING R/L/LS/LSX
- STEER AXLE MOUNTING LIMITED STROKE
- STEER AXLE STANDARD AND R/RS – L/LS/LSX
- STEER AXLE LIMITED STROKE
- BRAKE SYSTEM
- BRAKE CIRCUIT HR45-25, HR45-31, HR45-40S
- BRAKE CIRCUIT L/LS/LSX
- SERVICE BRAKE OIL COOLED BRAKE
- PARK BRAKE
- ACCUMULATOR HR45-25, HR45-31, HR45-40S
- ACCUMULATOR L/LS/LSX
- BRAKE OIL RESERVOIR
- PARK BRAKE SOLENOID VALVE
- SERVICE BRAKE CONTROL VALVE L/LS/LSX
- PARK BRAKE CONTROL VALVE L/LS/LSX
- FILTER BRAKE RETURN
- PARK BRAKE CIRCUIT L/LS/LSX
- BRAKE CONTROL CIRCUIT
- HYDRAULIC SYSTEM
- HYDRAULIC COOLING SYSTEM HYDRAULIC OIL
- HYDRAULIC COOLING SYSTEM
- HYDRAULIC RADIATOR
- HYDRAULIC COOLING SYSTEM BRAKE OIL
- STEERING CIRCUIT HR45-25, HR45-31, HR45-40S
- STEERING CIRCUIT L/LS/LSX
- OIL RESERVOIR
- FUEL RESERVIOR
- OIL RETURN MANIFOLD
- BRAKE OIL FILTRATION SYSTEM
- HYDRAULIC BYPASS FILTRATION SYSTEM
- OIL COOLER SOLENOID VALVE
- BOOM CIRCUIT HR45-25, HR45-31, HR45-40S
- BOOM CIRCUIT L/LS/LSX
- PILOT CIRCUIT HR45-25, HR45-31, HR45-40S
- PILOT CIRCUIT L/LS/LSX
- GENERAL RETURN CIRCUIT HR45-25, HR45-31, HR45-40S
- GENERAL RETURN CIRCUIT L/LS/LSX
- LEAK OIL CIRCUIT HR45-25, HR45-31, HR45-40S
- LEAK OIL CIRCUIT L/LS/LSX
- LOAD SENSING CIRCUIT HR45-25, HR45-31, HR45-40S
- LOAD SENSING CIRCUIT L/LS/LSX
- PRESSURE SWITCH
- CONTROL VALVE ATTACHING PARTS HR45-25, HR45-31, HR45-40S
- CONTROL VALVE AND ATTACHING PARTS L/LS/LSX
- CONTROL VALVE ASSEMBLY
- CONTROL VALVE RELIEF SECTION
- BOOM HOIST VALVE SHEET 1 OF 2
- BOOM HOIST VALVE SHEET 2 OF 2
- SPREADER VALVE
- BOOM EXTEND AND RETRACT VALVE
- MAIN PUMP CIRCUIT
- MAIN PUMP ATTACHING PARTS
- MAIN PUMP
- MAIN PUMP CONTROL VALVE
- PUMP DRIVE SHAFT
- LOAD SENSING SWITCH
- JUNCTION BLOCK JOYSTICK
- JUNCTION BLOCK BOOM AND ATTACHMENT
- BASE ELECTRO VALVE
- SOLENOID VALVE SLIDING CAB
- AMPLIFIER
- Boom
- BOOM 9 FT. 6 IN. JIB SECTION P1-P2-P3
- BOOM HEAD HR45-25, HR45-31, HR45-40S
- BOOM PIVOT BEARING HR45-25, HR45-31, HR45-40S
- CABLE SUPPORT BOOM 9 FT. 6 IN. – HR45-25, HR45-31, HR45-40S
- TELESCOPING BOOM 9 FT. 6 IN. – HR45-25, HR45-31, HR45-40S
- HYDRAULIC TUBING TELESCOPING BOOM 9 FT. 6 IN. – HR45-25, HR45-31, HR45-40S
- DERRICKING HR45-25, HR45-31, HR45-40S
- DAMPENING HR45-25, HR45-31, HR45-40S
- DAMPING CYLINDER HR45-25, HR45-31, HR45-40S
- DERRICKING CYLINDER HR45-25, HR45-31, HR45-40S
- SLIDING BLOCKS STANDARD
- SLIDING BLOCKS RS/LS
- HYDRAULIC TUBING BOOM 9 FT. 6 IN. – HR45-25, HR45-31, HR45-40S
- ELECTRICAL HR45-25, HR45-31, HR45-40S
- DAMPENING VALVE HR45-25, HR45-31, HR45-40S
- HYDRAULIC VALVE HR45-25, HR45-31, HR45-40S
- TWIST LOCK INDICATOR LIGHTS HR45-25, HR45-31, HR45-40S
- LIGHTS HR45-25, HR45-31, HR45-40S
- L/LS/LSX BOOM
- BOOM 4H 9″6″ – LSX
- BOOM HEAD
- BOOM PIVOT BEARING
- CABLE SUPPORT LSX
- HYDRAULIC TUBING LSX
- TELESCOPING CIRCUIT LSX
- TELESCOPING LSX
- TUBING TELESCOPIC CYLINDER LSX
- DERRICKING CYLINDER CONNECTIONS LSX
- DERRICKING
- DAMPENING
- DAMPING CYLINDER
- DERRICKING CYLINDER
- SLIDING BLOCKS LSX
- ELECTRICAL LSX
- DAMPENING VALVE
- HYDRAULIC VALVE
- TWIST LOCK INDICATOR LIGHTS
- LIGHTS
- Winch
- CONTROL CIRCUIT
- WINCH CIRCUIT
- PULLEY BLOCK
- CABLE GUIDE
- WINCH ATTACHING PARTS
- WINCH
- WINCH REDUCTION GEAR
- CONTROL VALVE ASSEMBLY WINCH
- CONTROL SWITCH
- LOWER LIMIT SWITCH
- SOLENOID VALVE GROUP
- CABLE AND DECALS
- CONTAINER HANDLER-ELME (B665)
- MAINFRAME B665
- HYDRAULIC STOP KIT B665 – OPTIONAL
- WEAR PADS B665
- BUMPERS B665
- FITTINGS BOOM AND ATTACHMENT – B665
- ROTATOR MOTOR AND TRANSMISSION ASSEMBLY B665
- SIDE-SHIFT CYLINDER B665
- ROTATION VALVE ASSEMBLY DUAL SPEED
- MAIN VALVE SPREADER TYPE
- ROTATOR ASSEMBLY WITHOUT POWER PILE SLOPE
- ROTATOR ASSEMBLY WITH POWER PILE SLOPE
- EXTENSION CYLINDER ASSEMBLY
- ELECTRICAL SYSTEM WITHOUT POWER PILE SLOPE
- ELECTRICAL SYSTEM POWER PILE SLOPE
- HYDRAULIC SYSTEM WITHOUT POWER PILE SLOPE
- HYDRAULIC SYSTEM WITH POWER PILE SLOPE
- TWIST LOCK ARRANGEMENT
- TWIST LOCK ASSEMBLY B665
- TWIST LOCK CYLINDER
- HYDRAULIC PENDULAR CYLINDER WITH POWER PILE SLOPE
- ROTATOR VALVE ASSEMBLY WITH POWER PILE SLOPE
- CONTAINER HANDLER-TEREX (A672)
- ROTATOR FRAME
- ROTATOR ASSEMBLY
- ROTATOR MOTOR TRANSMISSION
- ROTATOR MOTOR COMER
- SPEED REDUCER DYNAMIC OIL
- PLANETARY GEAR INTERMEDIATE – DINAMIC GEAR
- BRAKE DYNAMIC GEAR
- TELESCOPING TRANSMISSION DYNAMIC OIL
- REDUCING GEAR DYNAMIC OIL
- FLANGE COUPLING DYNAMIC GEAR
- TELESCOPING TRANSMISSION MOTOR COMER
- SPREADER FRAME WITH POWER PILE SLOPE
- SPREADER FRAME WITHOUT POWER PILE SLOPE
- END BEAMS
- TRANSMISSION TELESCOPING MOTOR
- WEAR PADS
- TWIST LOCK ASSEMBLY A672
- EXTENSION CABLE SUPPORT
- SIDE-SHIFT CABLE SUPPORT
- WIRE HARNESS MAIN
- WIRE HARNESS SENSORS
- SPREADER LIGHTS
- CONTROL BOX
- CONTROL BOX MOUNTING
- HYDRAULIC CIRCUIT MAIN
- HYDRAULIC CIRCUIT ROTATOR
- HYDRAULIC SYSTEM TELESCOPING
- HYDRAULIC CIRCUIT TWISTLOCKS
- HYDRAULIC SYSTEM PILE SLOPE
- HYDRAULIC CIRCUIT SIDE-SHIFT
- SIDE-SHIFT CYLINDER A672
- ROTATOR VALVE
- ROTATOR BRAKE RELEASE VALVE
- CYLINDER POWER PILE SLOPE
- SPREADER CONTROL VALVE
- DIRECTIONAL VALVE WITHOUT POWER PILE SLOPE
- SIDE-SHIFT CYLINDER VALVE
- Stabilizer
- HYDRAULIC CONTROL CIRCUIT HR45-40LS
- HYDRAULIC CONTROL CIRCUIT HR45-40S
- SOLENOID VALVE BANK HR45-40LS
- SOLENOID VALVE BANK HR45-40S
- HYDRAULIC CIRCUIT STABILIZER HR45-40LS
- HYDRAULIC CIRCUIT STABILIZER HR45-40S
- HYDRAULIC SUPPLY CIRCUIT HR45-40LS
- HYDRAULIC SUPPLY CIRCUIT HR45-40S
- LIMIT SWITCH MOUNTING HR45-40LS
- LIMIT SWITCH MOUNTING HR45-40S
- STABILIZER MOUNTING
- STABILIZER CYLINDER
- LOAD MOMENT LIMITER
- HYDRAULIC CIRCUIT CEC
- CABLE WINDER
- DISPLAY AND PRINTER
- OPTIONS
- DRIVE TIRE AND WHEEL 21 X 25 GOODYEAR
- DRIVE TIRE AND WHEEL 21 X 25 BRIDGESTONE
- DRIVE TIRE AND WHEEL 18 X 25 GOODYEAR
- DRIVE TIRE AND WHEEL 18 X 33 BRIDGESTONE
- DRIVE TIRE AND WHEEL 18 X 25 MICHELIN – HR45-25, HR45-31, HR45-40S
- DRIVE TIRE AND WHEEL 18 X 33 MICHELIN
- DRIVE TIRE AND WHEEL 18 X 33 GOODYEAR – HR45-36L, HR45-40LS
- DRIVE TIRE AND WHEEL 18 X 25 PLAIN
- DRIVE TIRE AND WHEEL 18 X 25 BRIDGESTONE – HR45-36L, HR45-40LS
- STEER TIRE AND WHEEL 21 X 25 GOODYEAR
- STEER TIRE AND WHEEL 21 X 25 BRIDGESTONE
- STEER TIRE AND WHEEL 18 X 25 GOODYEAR – HR45-25, HR45-31, HR45-40S
- STEER TIRE AND WHEEL 18 X 33 BRIDGESTONE – HR45-36L, HR45-40LS
- STEER TIRE AND WHEEL 18 X 25 MICHELIN – HR45-24, HR45-31, HR45-40S
- STEER TIRE AND WHEEL 18 X 33 MICHELIN – HR45-36L, HR45-40LS
- STEER TIRE AND WHEEL 18 X 33 GOODYEAR
- STEER TIRE AND WHEEL 18 X 25 PLAIN
- STEER TIRE AND WHEEL 18 X 25 BRIDGESTONE
- SOUND REDUCTION
- HYDRAULIC LIFTING JACK
- COLD CLIMATE KIT
- FUEL HEATER
- TOOL KIT
- CAMERA ASSEMBLY
- NUMERICAL INDEX
