John Deere 2355, 2555, 2755 and 2855N Tractors Technical Manual (TM4434)

John Deere 2355, 2555, 2755 and 2855N Tractors Technical Manual (TM4434)

John Deere 2355, 2555, 2755 and 2855N Tractors INDEX:

05 – SAFETY
to – GENERAL
05 — Specifications
10 — Predelivery, delivery and after-sales inspections
15— Lubrication and service

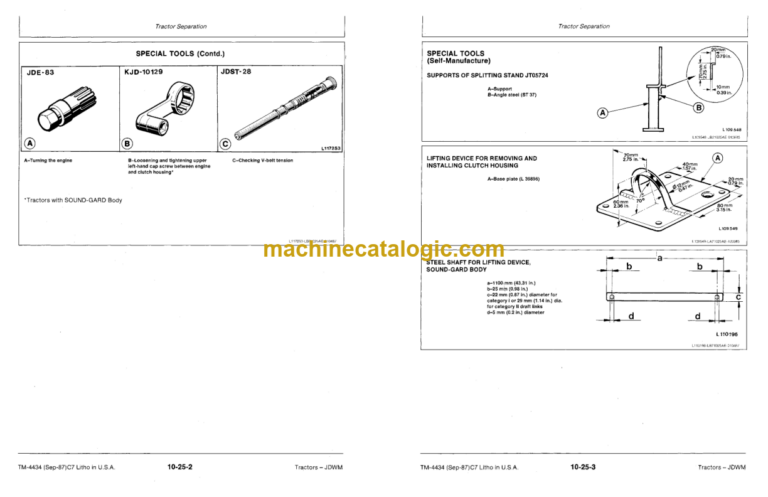

25 — Tractor separation
20 – ENGINE
05 — Radiator, viscous fan drive and fan
30 – FUEL AND AIR INTAKE SYSTEM
05 — Fuel tank, auxiliary fuel tank and water trap
IO — Cold weather starting aids
15 — Speed control linkage
20 — Air cieaner
40 – ELECTRICAL SYSTEM
05 — Wiring harnesses
10 — Controls and instruments
(without SOUND-GARD body:
15 — Controls and instruments
(with SOUND-GARD body)
20 — Lighting system
25 — Starting motor
3C — Alternator

50 – POWER TRAIN
05 — Clutch operating systems
IO — Engine single-stage Clutch (Without Reverser)
15 — Engine single„stage clutch (with Reverser)
20 — Engine dual-stage crutch
25 — Hi-Lo shift unit
30 — Reverser
35 — Creeper transmission
40 — Transmission — console Shift
45 — Transmission — center shift
50 — Synchronized transmission and
transmission oil pump
55 — Collar-shift transmission and
transmission Oil pumps
60 — Differential
65 — Final drives
7C — Independent PTO shafts
75 — Continuous-running PTO’s
80 – Front PTO
85 — Front wheel drive u.j. drive shaft
and disk clutch
60 – STEERING SYSTEM AND BRAKES

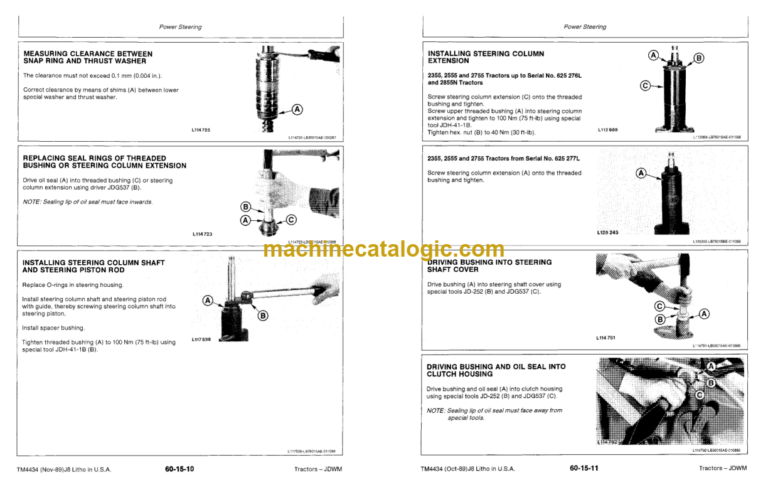

05 — Hydrostatic steering
IO — Steering cylinder (without front Wheel drive)
20 — Hydraulic brakes
25 — Handbrake

70 – HYDRAULIC SYSTEM
05 — Valves
10— Hydraulic pumps
15 — Rockshaft
25 — Selective control valves (spool type)
30 — Selective control valves (poppet valve type)
35 — ISO breakaway couplers
40 — ISO quick couplers
45 — Remote cylinder
80 – MISCELLANEOUS
05 — Front axie

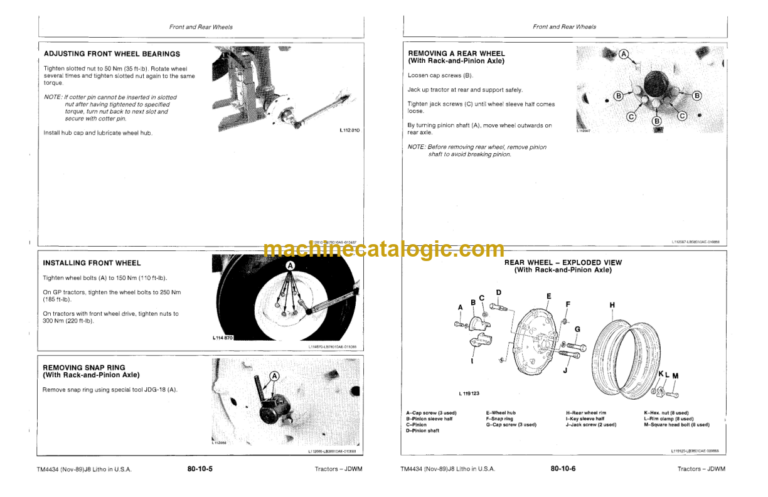

IO — Front and rear wheels
90 – OPERATOR’S STATION
05 — Safe handling of refrigerants
06 — Servicing air conditioning system
07 — Compressor (up to tractor Serial No. 663 473L)
08 — Compressor (from tractor Serja’ No. 663 4741-)
09 — Components of air conditioning system
10 — Cao ventilation and heating
15 — Operator’s seats
20 – SOUND-GARO Body
25 — 2-post roll guard
30 — 2-post telescopic rou guard
