John Deere 3375 Skid Steer Loader Operator’s Manual (OMM121047)
John Deere 3375 Skid Steer Loader INDEX:
Safety Signs
Pictorial Safety Signs……………
Avoid Overturn.
Avoid Injury
Avoid Death ….. ….. ….. ……………………
No Riders—Avoid Death
Avoid Injury
Warning
Stop engine.
Avoid Tipping.
Controls
Hand
Foot Controls
Instrument
Control Panel
Indicator Lights
Lift Arm Stop Control Lever
Operate Safely
Operator Training Required
Use Seat Belt Properly
Protect Children.
Keep Riders Off
Park safely ………………………………
Avoid Tipping.
Avoid Death ..
Remember The Other Guy .
Avoid Injury ….. ….. ….. ………..
Avoid Hazards .
Use Handholds And
Operate Safely Continued:
Wear Appropriate Clothing..
Check Wheel Bolts.
Prevent Machine Runaway.
Avoid An Explosion
Work In Ventilated Area ….
Transport Safely………………………………………………….
Operating Engine
Daily Operating Checklist…………
Testing Safety Systems
Checking Boom Safety Interlock..
Starting Engine……………..
After Starting
Warming Engine…………………………………………… .. …..
Operating Engine Under Load
Stopping Engine
Operating Loader
Operate Loader Safely
Engine Will Not Start And Boom Will Not Operate…….
Using Park Brake
Using Traction Drive
IJsing Drive Control Levers.
Using Lift Arm And Bucket Control
Using Lift Arm Stop Control Lever…………………………..
Driving On A Road
Operating Tips….
Operating Tips Continued: ..
Digging With Bucket….
Backfilling Or Leveling With Bucket
Operating Loader Continued:
Loading Bucket—Arc Penetration
Loading Bucket—Step Penetration
Dumping Bucket
Parking Loader
After Operation .
Installing Bucket
Park Vehicle Safely….
Avoid High Pressure Fluids .
Installing
Removing Bucket
Park Vehicle Safely……………………
Avoid High Pressure Fluids
Removing
Service Machine Safely
Service Machine Safely ….. ….. ….. ….. .. . .
Wear Appropriate Clothing
Handling Waste Product and Chemicals.
Avoid High Pressure Fluids
Service Cooling System………………………..
Service Interval Chart
Service Intervals ….. ….. ……………….
Hour Meter…
,Service – Engine and Hydraulics
Avoid Fumes ….. ….. ….. …………………………………..
Diesel Engine Oil/Lubricants ..
General Purpose Grease ..
Hydraulic

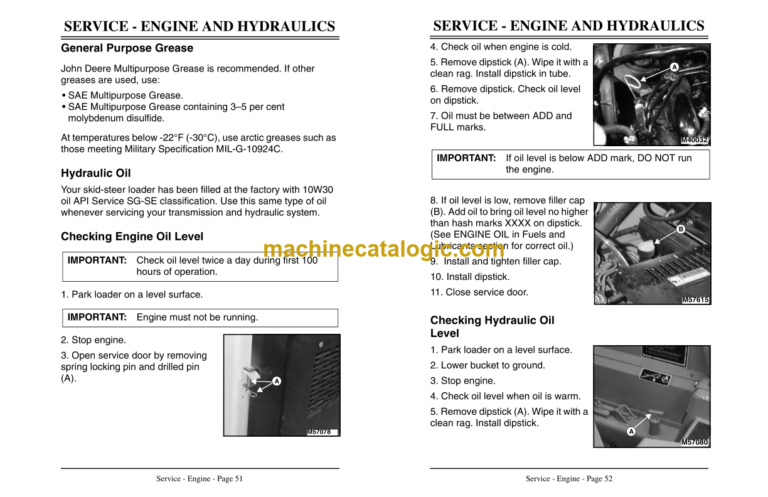

Checking Engine Oil Level
Checking Hydraulic Oil Level
Checking Coolant Level ..
Emptying Dust
Cleaning Radiator ….. ……………..
Lubricating Traction Drive Pivot Arm..
Cleaning Hydraulic System Breathers
Changing Engine Oil And Filter……………………….
Cleaning Hydraulic Oil Screen
Replacing Hydraulic Filter
Replacing Fuel Filters
Replacing Air Cleaner Element
Changing Hydraulic Oil
Bleeding Fuel System
Draining, Flushing, And Filling Cooling System ….
Engine Coolant……….
Service – Electrical
Cleaning Or Replacing Battery
Checking And Cleaning Battery ..
Checking Battery Electrolyte Level .
Charging The Battery ….. …………………………………
Charging Rates ……
Using Booster Battery
Limited Battery Warranty……..
Replacing Fuse
Replacing Control Module…………………….
Service – Miscellaneous
Metric Bolt And Cap Screw Torque Values ..
Metric Bolt And Cap Screw Torque Values Continued:
Checking Tire Pressure.
John Deere Tire Warranty ….. ….. ………….
Refueling Machine
Before Filling Fuel Tank….
Filling Fuel Tank .
Fuel
Fuel Storage ………………………………
Do Not Use Galvanized Containers…………
Opening Service Door
Removing Seat ….. ….. …………………………
Checking And Adjusting Alternator Belt Tension.
Checking Drive Chain Tension
Adjusting Chain
Tightening Idler Bracket Bolts
Tightening Wheel Bolts………………………………… ..
Lubricating Lift Arm Pivot
Adjusting Lift Arm Stop Linkage………………………………
Adjusting Pedals
Adjusting Traction Drive Belt
Adjusting Drive Controls
Adjusting Steering Controls (Vertical Position)
Adjusting Stop

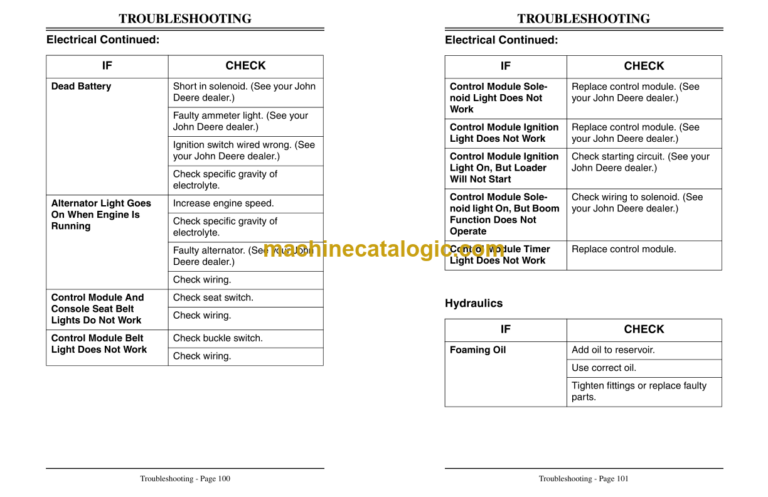

Troubleshooting
Using Troubleshooting
Engine .
Electrical
Hydraulics……………………………………………………………
Hydraulics Continued:..
Hydrostatic
Hydrostatic System Continued:
Storing Loader
Storing Safety..
Using Engine Storage Kit
Storing The Loader
Removing Loader From Storage……….
Assembly
Installing Wheels—Loader On Pallet….
Checking Tire Pressure……………..

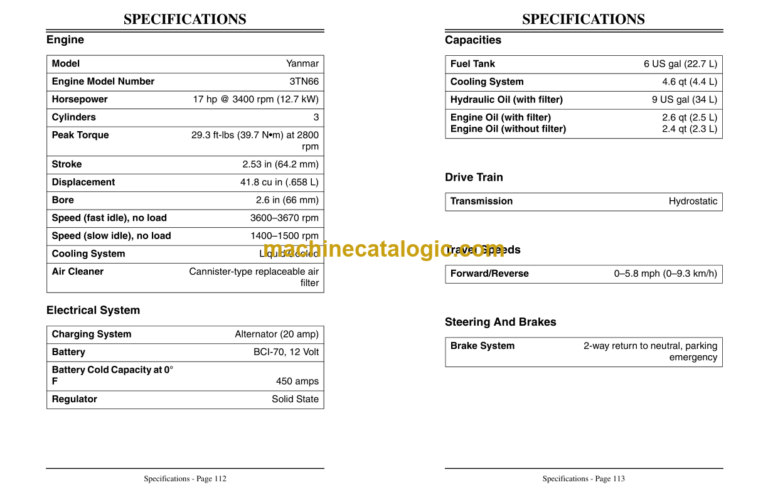

Specifications
Electrical System………………………………..
Capacities ..
Drive Train.
Travel Speeds
Steering And Brakes ………………………
Dimensions
Tire Air Pressure
Performance Ratings .
