Kobelco 7080 Crawler Crane Parts Manual

On a heavy-lift job site, the Kobelco 7080 moves loads with a crawler-mounted crane setup for long-duration work. Parts staff, fleet mechanics, and crane technicians use a parts manual to identify an assembly, match an item number, and order the correct replacement. For a Kobelco 7080 parts lookup, this is the right type of document.

What this manual helps you do

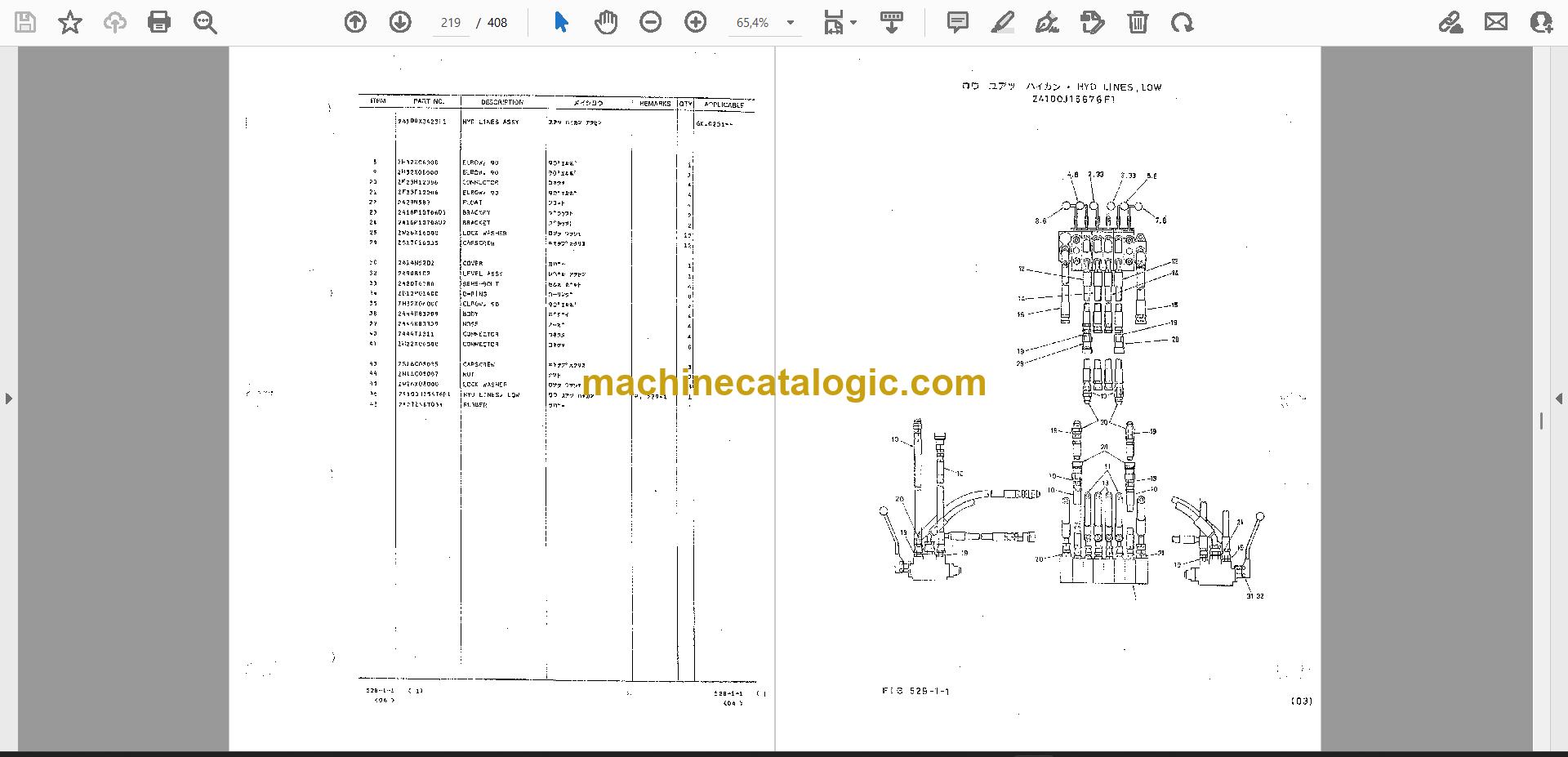

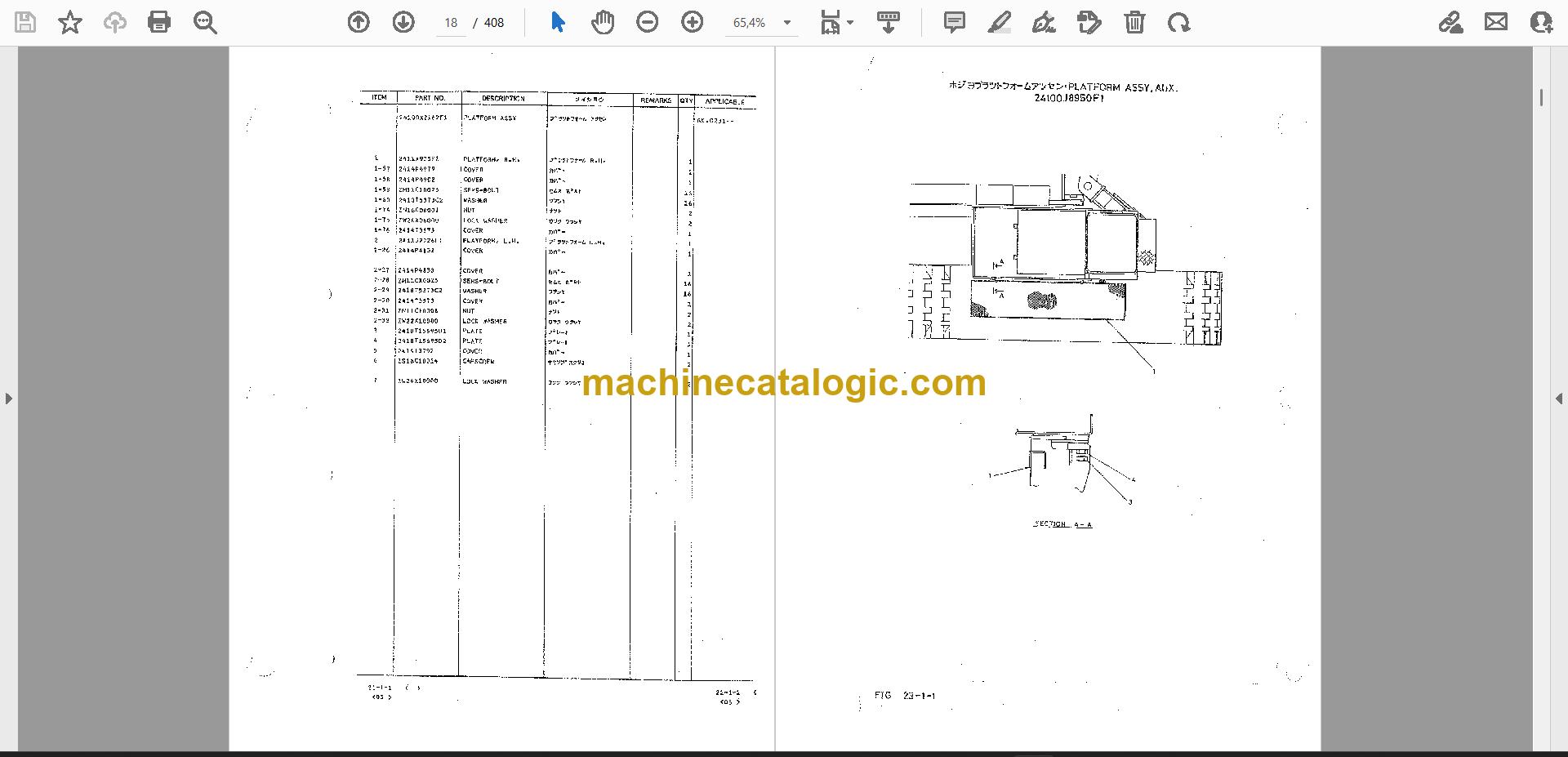

• Identify replacement parts from exploded-view drawings and descriptions.
• Look up item numbers within assemblies such as the main hoist, boom hoist, gantry, swing system, cab sheet metal, and lower mount.
• Match components to the correct assembly before placing an order.
• Confirm related parts in the frame, power plant, electric, jib, hook block, and safety-device sections.
• Order parts with a clearer understanding of how each component fits into the crane.

Who this is for

This is suited to a parts counter, rental fleet maintenance team, independent crane service shop, or dealer technician handling Kobelco 7080 parts identification. It is also useful when a used crane arrives without its original parts documentation.

FAQ

Q: What do I receive, and how is it organised?

A: You receive one 408-page PDF in English, with multilingual content. It is organised by crane assembly and uses illustrated parts breakdowns, item numbers, descriptions, and quantities.

Q: Which machine or serial number does it fit?

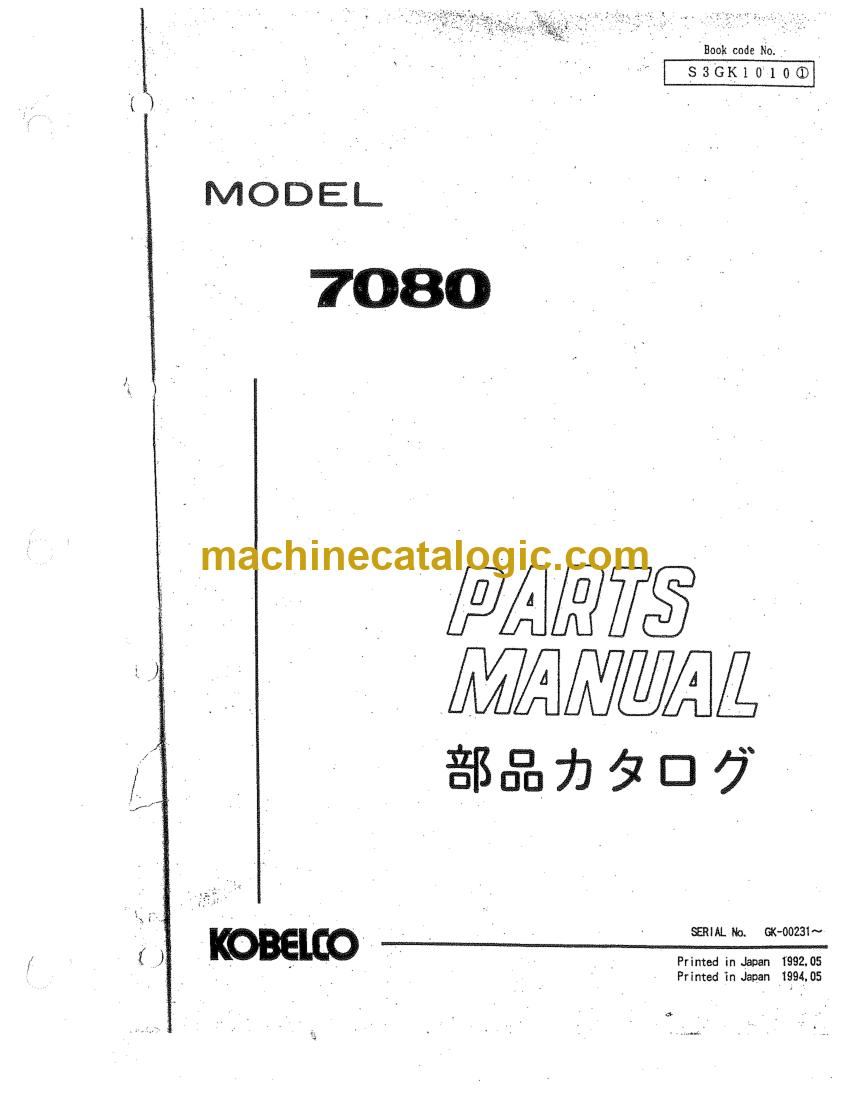

A: It is for the Kobelco 7080 crawler crane. The publication number is S3GK0100, and the serial number printed on the main catalog cover is GK-00231.

Q: How does it fit the job I am doing?

A: Use it when you need to identify a crane component, verify its assembly position, or prepare a parts order. It covers the major crane assemblies needed for practical parts lookup.

You can open the PDF, find the relevant assembly, and work from the illustrated breakdown to identify and order the part you need.

Click here to view the preview (PDF)

Does this manual fit your machine?

The serial number shown is the one printed on the catalog cover. Check the model and serial number on your machine's data plate before ordering.
