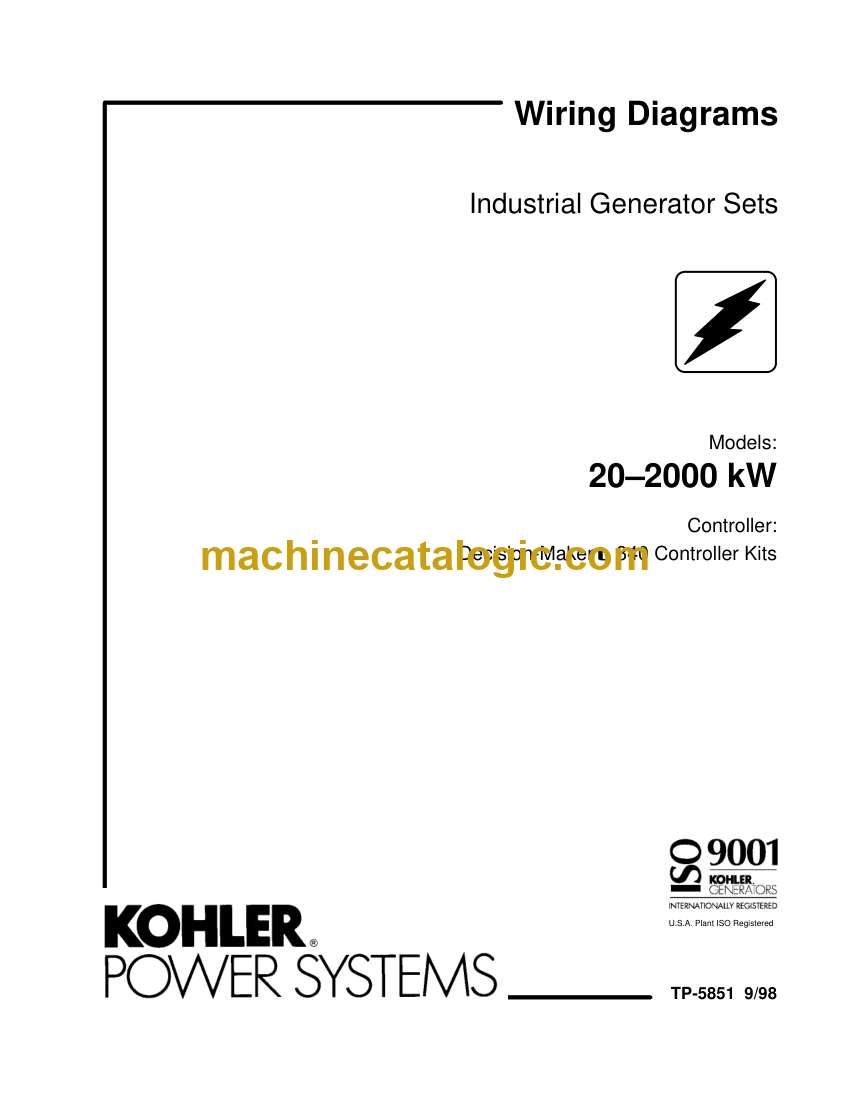

Kohler 20–2000 kW Industrial Generator Sets Wiring Diagrams (tp5851)

Format: PDF (Printable Document)

File Language: English

File Pages: 41

File Size: 4.89 MB (Speed Download Link)

Brand: Kohler

Model: 20–2000 kW Industrial Generator Sets

Book No: tp5851

Type of Document: Wiring Diagrams

Categories: ,

$ 40

Share:

Kohler 20–2000 kW Industrial Generator Sets Wiring Diagrams (tp5851)

Kohler 20–2000 kW Industrial Generator Sets Wiring Diagrams (tp5851)

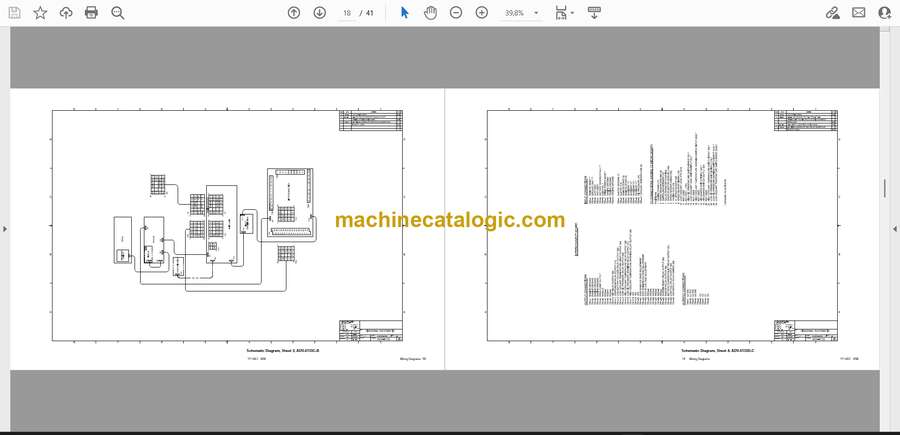

These Kohler industrial generator sets usually sit in plant rooms, rooftops, or outdoor enclosures, backing up critical loads when the grid drops. This wiring-diagram manual is what I grab when I need to trace circuits across different generator sizes and specs, especially after a control upgrade or harness repair. If a unit won’t start after a panel swap, for example, this lets me follow the start/stop, safety, and sensing wires from the controller through every connector to the engine and alternator so I can spot mis-pins or broken splices.

Applications & Use Cases

  • Verify correct wire routing and pin locations after replacing a control panel or main harness.
  • Trace safety circuits (emergency stop, shutdowns, sensors) to isolate a no-start or nuisance trip.
  • Confirm which terminals to use when retrofitting accessories like remote start, alarms, or monitoring.
  • Perform continuity tests end‑to‑end so repaired or extended harnesses match Kohler’s logic.
  • Check grounding and power feeds before energizing a rebuilt or relocated generator set.

FAQ

Q: Can I use this on a tablet at the generator?

A: Yes, but zoom in on connector views and keep the screen clean so color codes and pin labels stay readable.

Q: Is it worth printing pages?

A: For repeated tests, print the relevant diagrams and mark your continuity readings and connector IDs directly on them.

Safety Note

Always de-energize and lock out the generator and connected circuits before probing or rerouting any wiring.

📘 Show Index

Kohler 20–2000 kW Industrial Generator Sets Index:

Wiring Diagram Cross-Reference
Generator Set
Model No. Hz
Generator Set
Spec No.
Wiring Diagram
Version No.
600ROZM 60 GM13277-GA1 1-1
600ROZM 60 GM16981-GA1 1-2 or 1-3
900ROZM 60 PA-111001 1-1
900ROZM 60 GM16982-GA1 1-2 or 1-3
900ROZM 50 PA-111002 1-1
900ROZM 50 GM16982-GA2 1-2 or 1-3
1000ROZM 60 PA-111004 1-1
1000ROZM 60 GM16983-GA1 1-2 or 1-3
1000ROZM 50 PA-111003 1-1
1000ROZM 50 GM16983-GA2 1-2 or 1-3
2000ROZM 60 GM16647-GA1 2-1

600–1000ROZM Controller Wiring Diagrams Reference
Controller Description Version 1-1 Page Version 1-2 Page Version 1-3 Page
Decision-Maker550 (190–600 Volt)
Point-to-Point Wiring Diagram
Sheet 1 — — GM22222A 37 GM15497A-B 20
Sheet 2 — — GM22222B 38 GM15497B-B 21
Schematic Diagram
Sheet 1 — — ADV-6689A 12 ADV-6588A-B 6
Sheet 2 — — ADV-6689B 13 ADV-6588B-B 7
Accessory Connections
Sheet 1 — — GM16088A-D 22 GM16088A-D 22
Sheet 2 — — GM16088B-D 23 GM16088B-D 23
Sheet 3 — — GM16759B-C 30 GM16759B-C 30
Sheet 4 — — GM16759C-C 31 GM16759C-C 31
Sheet 5 — — GM16759D-C 32 GM16759D-C 32
Decision-Maker340
Point-to-Point Wiring Diagram
Sheet 1 GM11409A-C 16 — — — —
Sheet 2 GM11409B-C 17 — — — —
Schematic Diagram
Sheet 1 ADV-6531A-C 3 — — — —
Sheet 2 ADV-6531B-C 4 — — — —
Accessory Connections
Sheet 1 354246A-D 42 — — — —
Sheet 2 354246B-D 43 — — — —
Sheet 3 GM16758C-B 25 — — — —
Sheet 4 GM16758E-B 27 — — — —
Sheet 5 GM16758G-B 29 — — — —
Decision-Maker3+
Point-to-Point Wiring Diagram
Sheet 1 GM11001A-B 14 GM11001A-B 14 GM11001A-B 14
Sheet 2 GM11001B-B 15 GM11001B-B 15 GM11001B-B 15
Schematic Diagram
Sheet 1 ADV-6528-B 2 ADV-6528-B 2 ADV-6528-B 2
Accessory Connections
Sheet 1 328912A-F 39 328912A-F 39 328912A-F 39
Sheet 2 328912B-F 40 328912B-F 40 328912B-F 40
Sheet 3 328912C-F 41 328912C-F 41 328912C-F 41
Sheet 4 GM16758B-B 24 GM16758B-B 24 GM16758B-B 24
Sheet 5 GM16758D-B 26 GM16758D-B 26 GM16758D-B 26
Sheet 6 GM16758F-B 28 GM16758F-B 28 GM16758F-B 28
Engine Gauge Box for Paralleling Switchgear
Point-to-Point Wiring Diagram
Sheet 1 GM11410A-B 18 GM11410A-B 18 GM11410A-B 18
Sheet 2 GM11410B-B 19 GM11410B-B 19 GM11410B-B 19
Schematic Diagram
Sheet 1 ADV-6532-B 5 ADV-6532-B 5 ADV-6532-B 5
Generator Reconnections ADV-5875B-D 1 ADV-5875B-D 1 ADV-5875B-D 1
Note: Version 1-1 uses the Decision-Maker340 controller.
Version 1-2 uses the Decision-Maker550 controller and Marathon DVR2000 voltage regulator.
Version 1-3 uses the Decision-Maker550 controller with integral voltage regulator.
iv Wiring Diagrams TP-6058 3/02
2000ROZM Controller Wiring Diagrams Reference
Controller Description Version 2-1 Page
Decision-Maker550 (190–600 Volt)
Point-to-Point Wiring Diagram
Sheet 1 GM18092A-B 33
Sheet 2 GM18092B-B 34
Schematic Diagram
Sheet 1 ADV-6615A-B 8
Sheet 2 ADV-6615B-B 9
Accessory Connections
Sheet 1 GM16088A-D 22
Sheet 2 GM16088B-D 23
Sheet 3 GM16759B-C 30
Sheet 4 GM16759C-C 31
Sheet 5 GM16759D-C 32
Decision-Maker550 (1905–4160 Volt)
Point-to-Point Wiring Diagram
Sheet 1 GM18093A 35
Sheet 2 GM18093B 36
Schematic Diagram
Sheet 1 ADV-6616A 10
Sheet 2 ADV-6616B 11
Accessory Connections
Sheet 1 GM16088A-D 22
Sheet 2 GM16088B-D 23
Sheet 3 GM16759B-C 30
Sheet 4 GM16759C-C 31
Sheet 5 GM16759D-C 32
Generator Reconnections ADV-5875B-D 1
Note: Version 2-1 uses the Decision-Maker550 controller with integral voltage regulator
