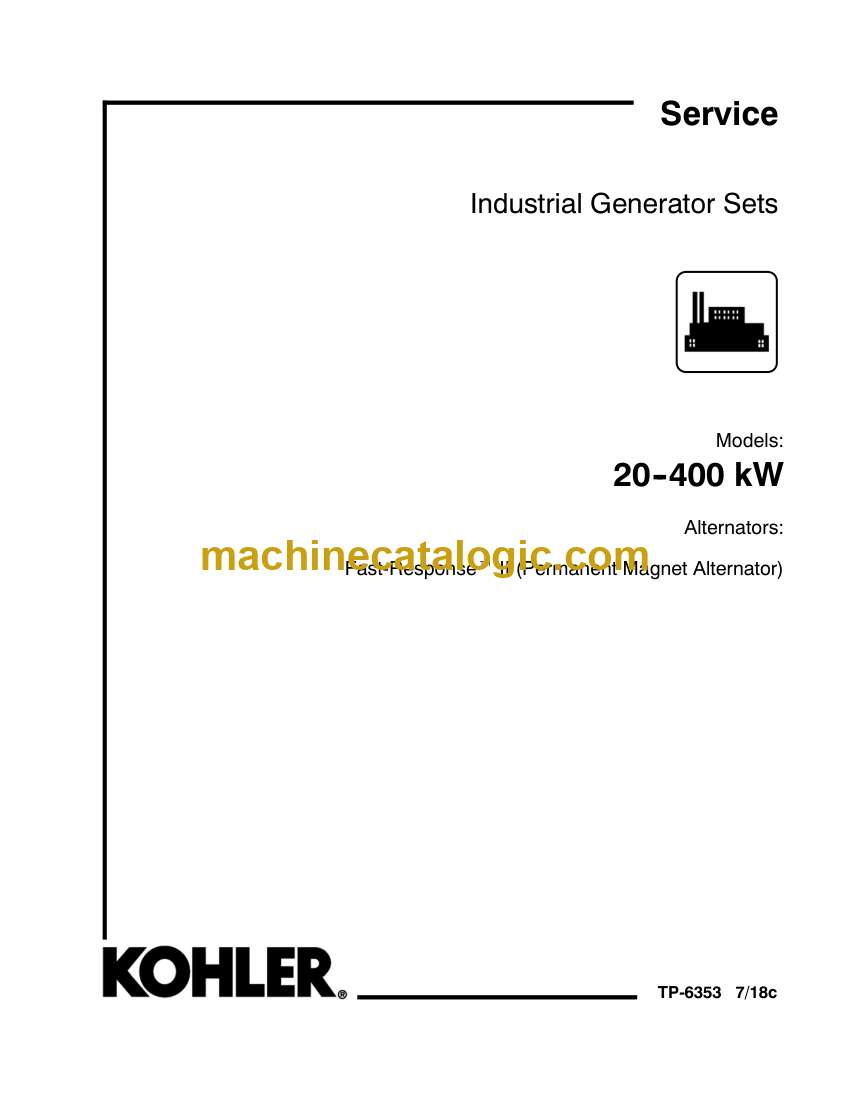

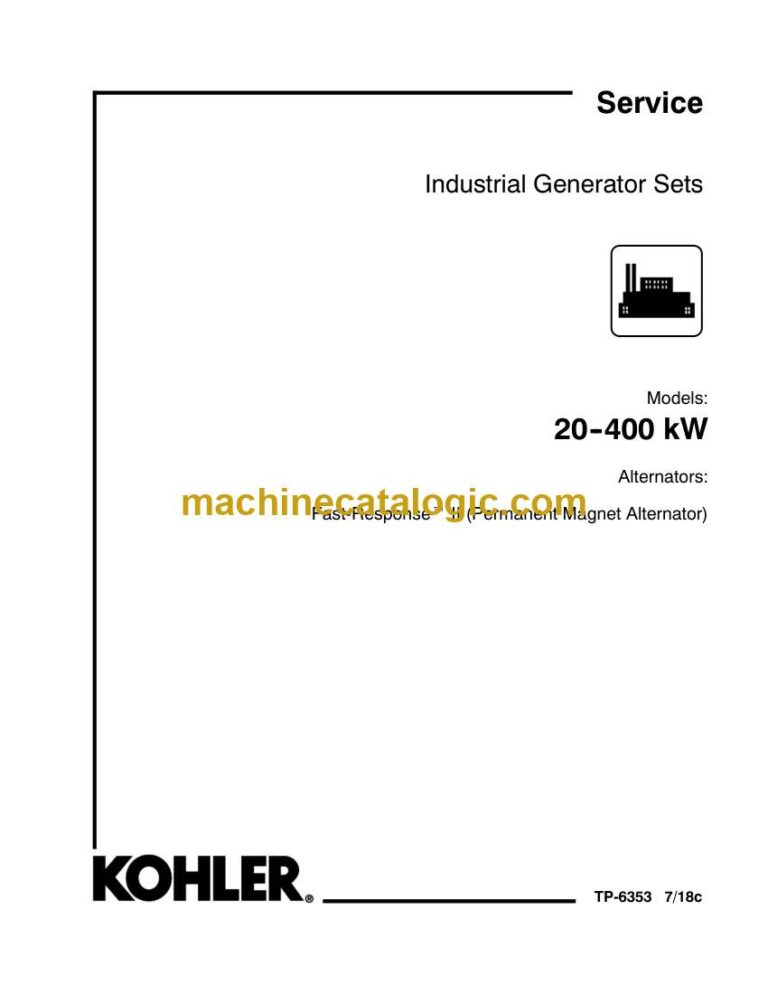

Kohler 20-400 kW Industrial Generator Sets Service Manual (tp6353)

These Kohler 20–400 kW industrial generator sets usually sit in plants, data centers, or backup rooms and only get noticed when something goes wrong. This service manual is what I’d pull out when I need to trace a no‑start, chase down an odd vibration, or confirm a control-side fault before ordering parts. It walks you through logical checks so you can verify wiring, fuel, and mechanical issues step by step instead of guessing and throwing components at the problem.

Applications & Use Cases

• Isolate no‑start or hard‑start issues by following the recommended sequence of electrical and fuel checks.
• Diagnose unstable voltage or frequency and verify whether it’s the governor, controls, or the alternator side causing it.
• Guide disassembly and reassembly of major components so you don’t miss seals, shims, or alignment steps.
• Confirm sensor or control-module failures by comparing expected responses to actual readings before replacing parts.
• Support scheduled maintenance with proper adjustment concepts for linkages, belts, and connections after inspection.

FAQ

Q: Can I use this manual on a tablet at the generator site?

A: Yes, it’s practical to use digitally; you can zoom diagrams and search terms while working beside the set.

Q: Is it worth printing sections of this manual?

A: Many techs print the key procedures or diagrams they use often and keep them in a binder near the unit.

Safety Note

Always lock out the generator and verify it cannot start automatically before opening panels or disconnecting components.
