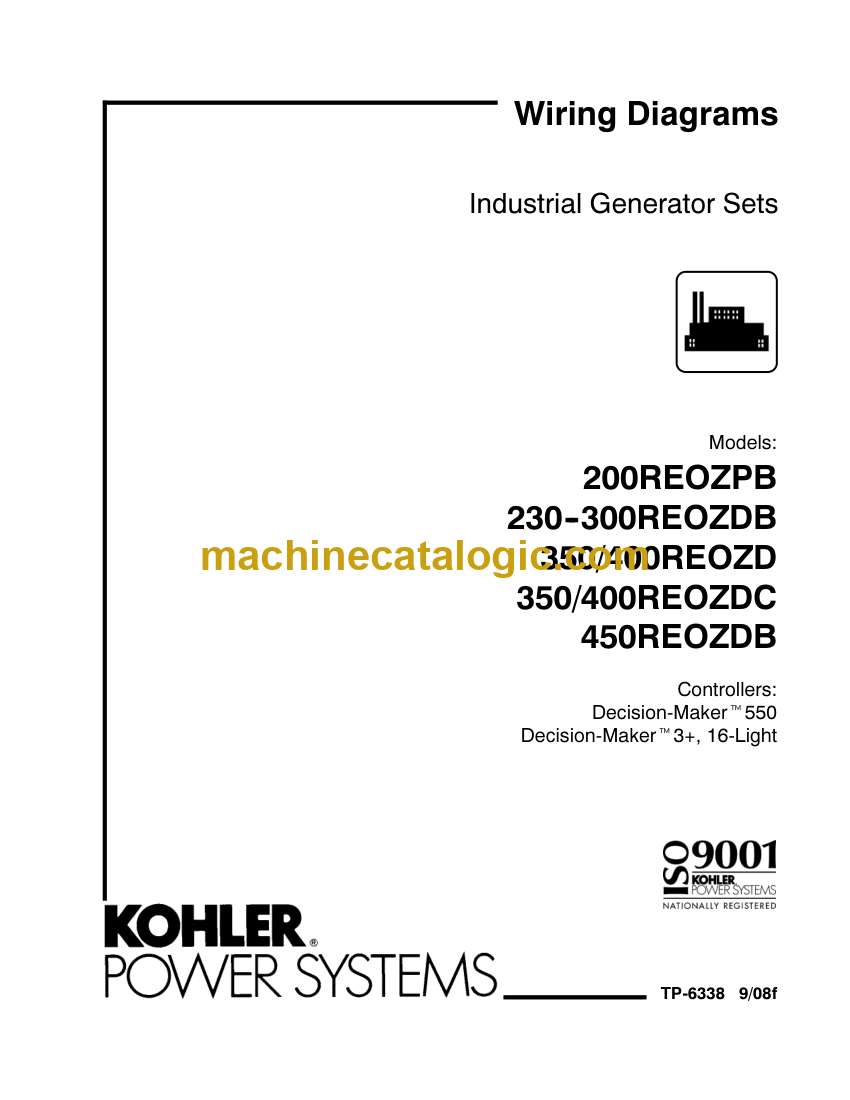

Kohler 200REOZPB, 230REOZDB, 300REOZDB, 350REOZD, 400REOZD, 350REOZDC, 400REOZDC, 450REOZDB Industrial Generator Sets Wiring Diagrams (tp6338)

These Kohler industrial generator sets usually sit in plant rooms or outdoor enclosures, backing up hospitals, factories, or data centers when the utility drops out. This wiring-diagram manual is what I grab when I need to trace control circuits, verify harness repairs, or sort out add‑on wiring someone’s done over the years. If, for example, the generator won’t transfer load after a start signal, I use this to follow the control wiring from the controller, through relays and sensors, right out to the switchgear and confirm what’s live and what should be.

Applications & Use Cases

• Trace wire routing between the controller, engine sensors, and alternator to isolate intermittent shutdowns or no-start conditions.
• Verify connector pinouts after replacing a damaged harness or swapping a control module.
• Continuity-test circuits safely by knowing exactly which terminals should be tied together and which are separate.
• Plan and check retrofits, like remote start/stop or monitoring, without overloading existing circuits.
• Identify misrouted or spliced wires from previous repairs and bring the system back to factory logic.

FAQ

Q: Can I use this on a tablet while I’m in the generator room?

A: Yes, the diagrams work well zoomed in on a tablet, which makes it easier to read wire IDs at the unit.

Q: Is this worth printing, or should I keep it digital only?

A: I recommend both: a printed set for quick tracing at the panel and a digital copy for zooming into tight connector details.

Safety Note

Always de-energize and lock out the generator and associated switchgear before probing or moving any wiring.

Kohler 200REOZPB, 230REOZDB, 300REOZDB, 350REOZD, 400REOZD, 350REOZDC, 400REOZDC, 450REOZDB Industrial Generator Sets Index:

Wiring Diagram Cross-Reference
Generator Set
Model No.
Generator Set
Spec No.
50 Hz
Generator Set
Spec No.
60 Hz Version No.
200REOZPB GM19608-GA1 GM19608-GA1 1-1
230REOZDB GM13659-GA8 GM13659-GA7 2-1 or 2-2
250REOZDB GM13659-GA6 GM13659-GA5 2-1 or 2-2
275REOZDB GM13659-GA4 GM13659-GA3 2-1 or 2-2
300REOZDB GM13659-GA2 GM13659-GA1 2-1 or 2-2
350REOZD GM13280-GA5 GM13280-GA3, 4, 6 3-1
350REOZDC GM35142-GA8 GM35142-GA5, 6, 7 4-1 or 4-2
400REOZD GM13280-GA1 GM13280-GA2 3-1
400REOZDC GM35142-GA4 GM35142-GA3 4-1 or 4-2
450REOZDB GM35142-GA2 GM35142-GA1 4-1 or 4-2
