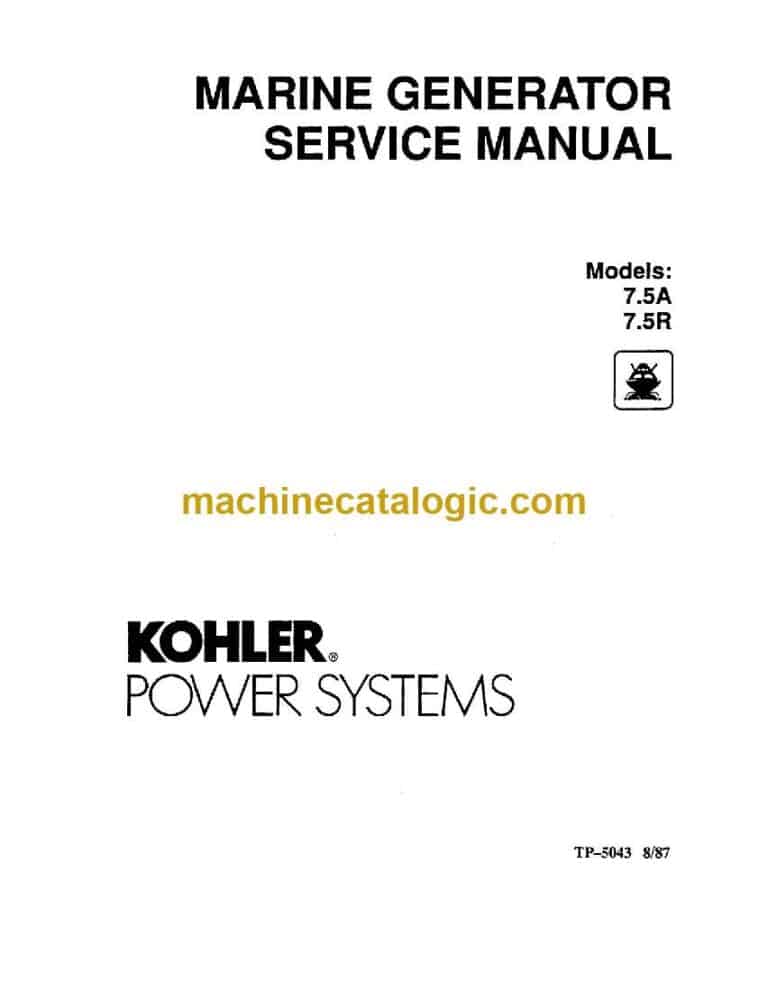

Kohler 7.5A, 7.5R Marine Service Manual (tp5043)

On a small marine generator like the Kohler 7.5A/7.5R, this set runs in tight spaces, hot engine rooms, and often gets ignored until it acts up. This service manual is what I’d pull when I need to trace a no‑start, chase an uneven voltage issue, or verify governor and fuel adjustments before condemning any parts. It walks you through logical checks so you confirm the real fault instead of just throwing a new carb, regulator, or stator at it.

Applications & Use Cases

• Step through systematic diagnostics when the set won’t start, keeps stalling, or won’t carry load.
• Follow disassembly/assembly sequences so you don’t mis-route wiring, linkages, or cooling hoses in the cramped genset enclosure.
• Use the adjustment guidance to set linkages, governor, and idle/load speed after repairs, avoiding over‑rev or hunting.
• Isolate fuel, ignition, or charging faults by comparing your test readings to the manual’s procedures.
• Verify you’re using correct service practices and torque patterns so components seal and stay aligned under vibration.

FAQ

Q: Can I keep this manual on a tablet in the engine room?

A: Yes, it’s practical to use digitally; just zoom in on diagrams and keep the device in a dry, protected case.

Q: Is it worth printing sections of this manual?

A: Many techs print the relevant procedures for a job so they can mark notes, oil‑stain them, and tape them near the work area.

Safety Note

Always lock out the generator, secure fuel sources, and verify ventilation before opening covers or turning a wrench.

Kohler 7.5A, 7.5R Marine Index:

Reference Material
Safety Precautions

Section 1. Introduction and Specifications
Introduction
Oil Specifications
Fuel Specifications

Section 2. Operation
General
Prestart Checklist
Starting-Stopping
Test Operation
Reset Procedure

Section 3. Scheduled Maintenance
General
Maintenance Schedule

Section 4. Troubleshooting
General
Remote – Solid State Circuitry – Models 7.5R
Automatic – Solid State Circuitry – Models 7.5A
Remote – Relay Circuitry – Models 7.5R

Section 5. Controller
General
Solid State Circuitry
Fuses
Harness Assemblies
Battery Charging
Circuit Boards
Voltage Checks
Sequence of Operation
Relay Circuitry
Fuses
Battery Charging
Voltage Checks
Sequence of Operation

Section 6. Generator Disassembly

Section 7. Generator Inspection and Service
General
Build-up Circuit
Separate Field Excitation
Brushes
Slip Rings
Rotor
Stator
Exciter Voltage Regulator
Speed Sensor
Interlock Circuit Board

Section 8. Generator Reassembly

Section 9. Backfire Flame Arrestor, Fuel System, and Governor
Backfire Flame Arrestor
Carburetor
Fuel Collection System
Choke
Governor

Section 10. Cooling System
General
Heat Exchanger
Direct
Belt Tension

Section 11. Ignition System
General
Operational Test
Timing Magneto to Engine

Section 12. Wiring Diagrams

Kohler
