Komatsu HD1400B-3 Bottom Dump Truck Operation and Maintenance Manual (SEAM05850300)

On a HD1400B-3 bottom dump truck working in quarries or large earthmoving jobs, this manual is what I’d keep handy to keep the truck loading, hauling, and dumping all day without surprises. It walks you through how to run the machine correctly and set up a solid maintenance rhythm so you’re not wrenching on it when you should be moving material. If, for example, the dump doors start cycling slower or not closing square, this is what I’d use to trace the issue, verify basic adjustments, and decide if it’s an operator habit, a service item, or a deeper hydraulic problem.

Applications & Use Cases

• Plan preventive maintenance so inspections, greasing, and filter changes are done before failures sideline the truck.
• Set a daily/shift inspection routine to catch leaks, loose hardware, or tire damage before they turn into breakdowns.
• Verify correct operating practices for loading, dumping, and braking on long hauls or grades.
• Trace performance changes like sluggish travel or inconsistent dumping back to basic checks and service points.
• Coordinate shop and field work by lining up parts and labor ahead of scheduled downtime.

FAQ

Q: Can I use this manual on a tablet in the field?

A: Yes, it’s practical to keep a digital copy on a tablet or laptop so you can zoom diagrams and search quickly at the truck.

Q: Is it worth printing sections of this manual?

A: Many mechanics print the key service and inspection pages to keep in the service truck or site office for quick reference.

Safety Note

Always follow the manual’s shutdown, lockout, and support procedures before inspecting or working under the truck.

Komatsu HD1400B-3 Bottom Dump Truck Index:

• COVER

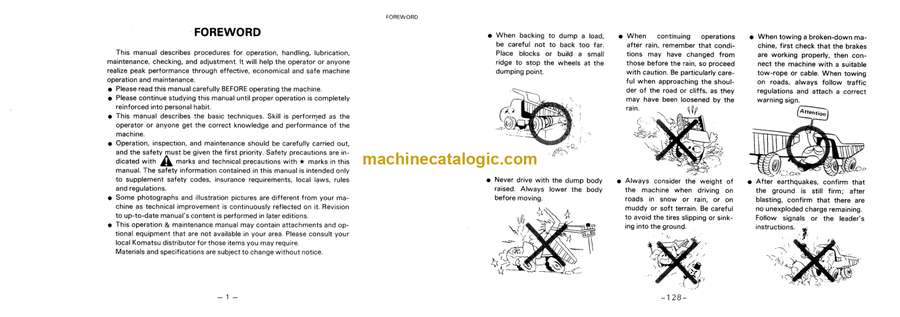

• FOREWORD
• BREAKING IN YOUR NEW MACHINE
• CONTENTS
• GENERAL LOCATIONS AND SPECIFICATIONS
• INSTRUMENTS AND CONTROLS
• CHECK BEFORE STARTING
• OPERATING YOUR MACHINE
• WAGGON DOORS OPERATION
• METHOD OF RELEASING PARKING BRAKE AND EMERGENCY BRAKE WHEN ACTUATED IN A EMERGENCY
• INSTRUCTIONS FOR TOWING THE MACHINE
• HANDLING THE TIRES
• COLD WEATHER OPERATION
• PERIODIC MAINTENANCE
  • PERIODIC REPLACEMENT OF COMPONENTS PARTS FOR THE SAFETY DEVICES
  • MAINTENANCE TABLE
  • OIL FILLER AND LEVEL GAUGE POSITIONS
  • INITIAL 250 HOURS SERVICE
  • EVERY 250 HOURS SERVICE
  • EVERY 500 HOURS SERVICE
  • EVERY 1000 HOURS SERVICE
  • EVERY 2000 HOURS SERVICE
  • EVERY 4000 HOURS SERVICE

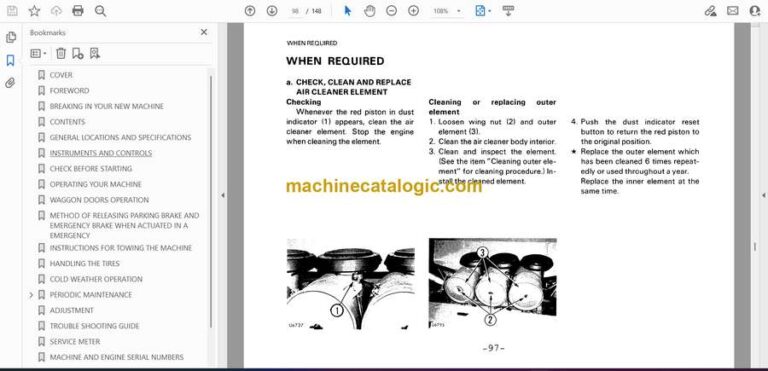

  • WHEN REQUIRED
• ADJUSTMENT
• TROUBLE SHOOTING GUIDE
• SERVICE METER
• MACHINE AND ENGINE SERIAL NUMBERS
• FUEL,COOLANT AND LUBRICANTS
• SAFETY AND OPERATION
  • CONTENTS
  • SAFETY HINTS
  • PRECAUTIONS FOR MAINTENANCE
  • CAR STEREO
  • HANDLING OF BATTERY
  • STORAGE
  • COOLANT AND LUBRICANTS
