Description

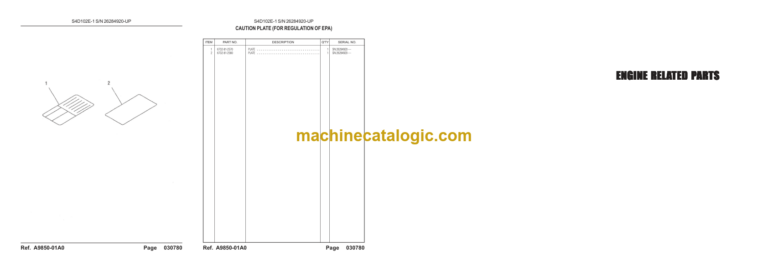

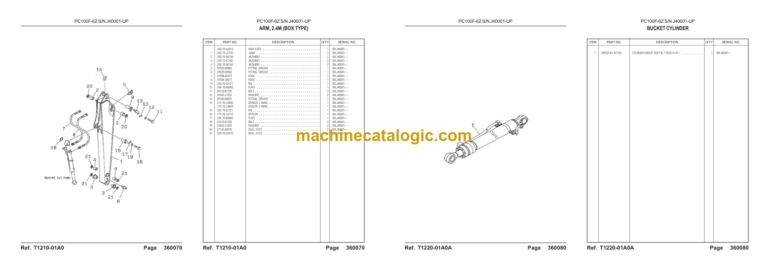

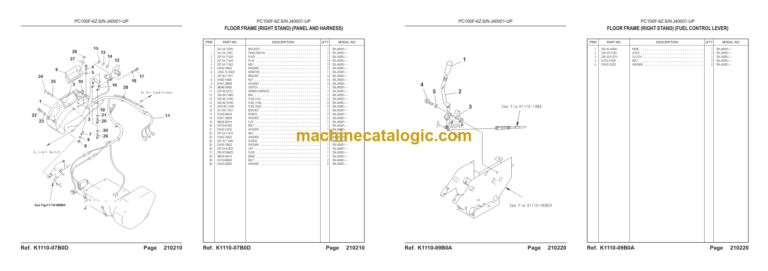

Komatsu PC100F-6Z Parts Catalog

Product includes high-quality images, diagrams, and instructions to help you understand and repair spare part numbers and arrangements. This document can be printed without any restrictions and contains searchable text and bookmarks for easy navigation.

TABLE OF CONTENT

HEAD ASS’Y ……………………….. 1 SN:26284920 —
1 j .HEAD …………………………… 1 SN:26284920 —
2 6736-11-1150 .PLUG …………………………… 3 SN:26284920 —
3 6732-11-1170 .INSERT, EXHAUST …………………….. 4 SN:26284920 —
4 6732-11-1180 .INSERT, INTAKE ……………………… 4 SN:26284920 —
5 6732-11-1910 .PLUG …………………………… 5 SN:26284920 —
6 6732-11-1930 .PLUG …………………………… 2 SN:26284920 —
7 6732-41-4540 SEAL, INTAKE ………………………. 8 SN:26284920 —
6736-41-4110 INTAKE VALVE A ……………………… 4 SN:26284920 —
8 j .VALVE …………………………… 1 SN:26284920 —
9 6732-41-4520 .COTTER …………………………. 2 SN:26284920 —
6736-41-4210 EXHAUST VALVE A …………………….. 4 SN:26284920 —
10 j .VALVE …………………………… 1 SN:26284920 —
11 6732-41-4520 .COTTER …………………………. 2 SN:26284920 —
12 6732-41-4410 SPRING ………………………….. 8 SN:26284920 —
13 6732-41-4510 RETAINER …………………………. 8 SN:26284920 —
14 6732-11-1610 BOLT ……………………………. 4 SN:26284920 —
15 6732-11-1620 BOLT ……………………………. 10 SN:26284920 —
16 6732-11-1151 GASKET ………………………….. 1 SN:26284920 — and more
