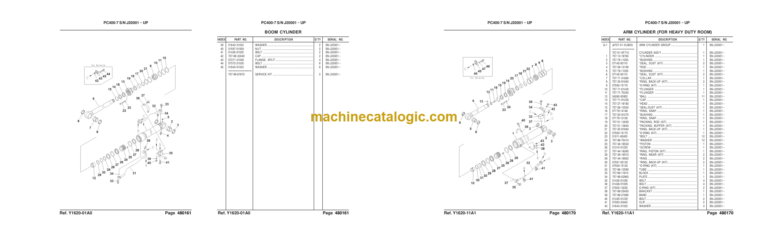

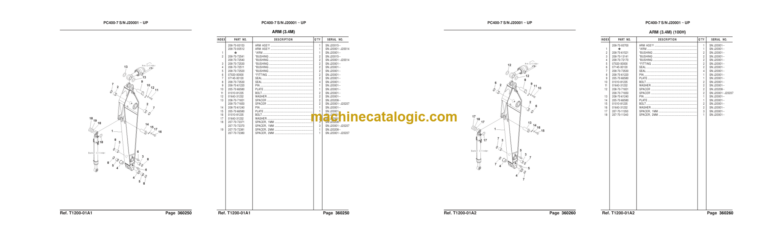

Komatsu PC400SE-7 PC400LCSE-7 Parts Catalog

Product includes high-quality images, diagrams, and instructions to help you understand and repair spare part numbers and arrangements. This document can be printed without any restrictions and contains searchable text and bookmarks for easy navigation.

TABLE OF CONTENT

CYLINDER ASS’Y VALVE LESS ……………………… 6 SN:312635–
1 *HEAD,CYLINDER …………………………………………… 1 SN:312635–
2 6136-11-1130 *SLEEVE …………………………………………………………. 1 SN:312635–
3 6150-11-1130 *INSERT.EXHAUST VALVE (STD) …………………… 2 SN:312635–
6150-19-1320 *INSERT, 0.25MM,EXHAUST VALVE (OS) ……… 2 SN:312635–
6150-18-1320 *INSERT, 0.50MM,EXHAUST VALVE (OS) ……… 2 SN:312635–
6150-17-1320 *INSERT, 0.75MM,EXHAUST VALVE (OS) ……… 2 SN:312635–
6150-16-1320 *INSERT, 1.00MM,EXHAUST VALVE (OS) ……… 2 SN:312635–
4 6150-12-1380 *INSERT,INTAKEVALVE (STD) ………………………… 2 SN:312635–
6150-19-1380 *INSERT, 0.25MM,INTAKE VALVE (OS) …………. 2 SN:312635–
6150-18-1380 *INSERT, 0.50MM,INTAKE VALVE (OS) …………. 2 SN:312635–
6150-17-1380 *INSERT, 0.75MM,INTAKE VALVE (OS) …………. 2 SN:312635–
6150-16-1380 *INSERT, 1.00MM,INTAKE VALVE (OS) …………. 2 SN:312635–
5 6150-12-1370 *IGUIDE,VALVE (SERVICE ONLY) …………………… 4 SN:312635–
6 6162-13-1150 *PLUG …………………………………………………………….. 10 SN:312635–
7 07046-41810 *PLUG …………………………………………………………….. 1 SN:312635–
8 07043-70108 *PLUG …………………………………………………………….. 1 SN:312635–
9 6150-11-1140 *GUIDE ……………………………………………………………. 2 SN:312635–
10 04020-00820 *PIN,DOWEL …………………………………………………… 2 SN:312635–
11 6150-42-4110 VALVE,INTAKE ………………………………………………… 12 SN:312635–
12 6150-42-4210 VALVE,EXHAUST ……………………………………………. 12 SN:312635–
13 6150-41-4510 SEAT,UPPER ………………………………………………….. 24 SN:312635–
14 6150-41-4430 SEAT,LOWER ………………………………………………….. 24 SN:312635–
15 6136-42-4520 COTTER,VALVE ……………………………………………… 48 SN:312635–
16 6150-41-4450 SPRING ………………………………………………………….. 24 SN:312635–
17 6150-41-4570 SEAL,VALVE STEM (K1) …………………………………. 24 SN:312635–
6150-42-5600 CROSSHEAD ASS’Y ……………………………………….. 12 SN:312635–
18 6150-42-5610 CROSSHEAD ………………………………………………….. 1 SN:312635–
19 6150-41-5610 SCREW …………………………………………………………… 1 SN:312635–
20 6150-41-5630 NUT ………………………………………………………………… 1 SN:312635–
STANDARD
21 6151-12-1810 GASKET (K1) ………………………………………………….. 6 SN:312635–
*GROMMET, OIL …………………………………………….. 1 SN:312635–
*GROMMET, OIL …………………………………………….. 1 SN:312635–
*GROMMET, WATER ……………………………………… 4 SN:312635–
*GROMMET, WATER ……………………………………… 1 SN:312635–
22 6151-19-1810 GASKET …………………………………………………………. 6 SN:312635–
*GROMMET, OIL …………………………………………….. 1 SN:312635–
*GROMMET, OIL …………………………………………….. 1 SN:312635–
*GROMMET, WATER ……………………………………… 4 SN:312635–
*GROMMET, WATER ……………………………………… 1 SN:312635–
26 6150-11-1610 BOLT ……………………………………………………………….. 36 SN:312635–
27 01438-01020 BOLT ……………………………………………………………….. 6 SN:312635–
