Format: PDF (Printable Document)
File Language: English
File Pages: 120
File Size: 10.33 MB (Speed Download Link)
Brand: Komatsu
Model: PC850-8R1
Book No: GEN00152-01
Serial No: 70106 and up
Type of Document: Shop Manual
$ 39
1. Introduction
2. Items to be performed before assembly
3. Items to be performed during assembly
4. Items to be performed after assembly
5. Remove and install large-sized components
6. Replace spring box and install relief valve, flow control sleeve, etc.
7. Install attachment shuttle valve
Install block to hydraulic tank
8.
9. Install check valve drain port
10. Add cutout to floor mat

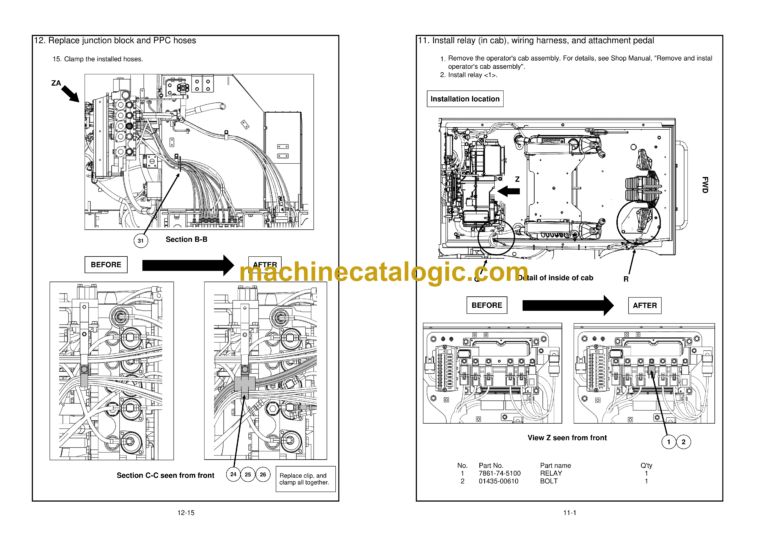

11. Install relay (in cab), wiring harness, and attachment pedal
12. Replace junction block and PPC hoses
13. Install wiring harness (on chassis side)
14. Install attachment tower bracket
15. Install PPC hose clamp
16. Change quick return circuit to attachment specification
17. Install bucket HI piping
18. Install parts for attachment and drain

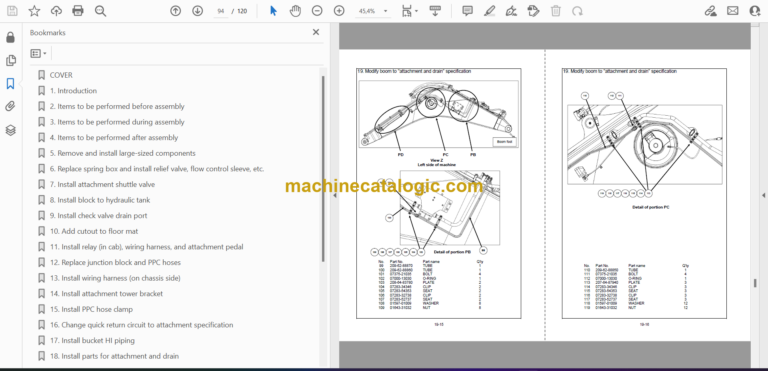

19. Modify boom to “attachment and drain” specification
20. Modify arm to “attachment and drain” specification
21. Install hoses between chassis and “boom attachment and drain”
22. Install bucket cylinder hoses
23. Install attachment hoses between boom and arm
24. Piping fitting size for attachment

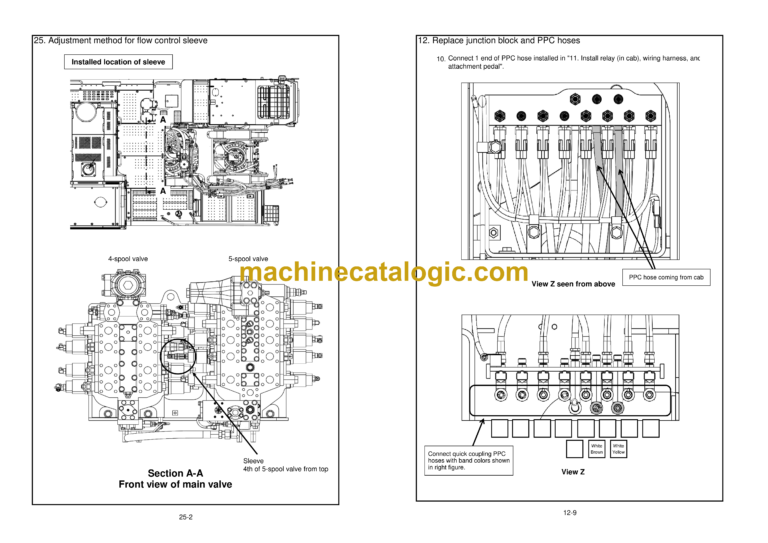

25. Adjustment method for flow control sleeve
26. Adjustment method for attachment circuit relief pressure
27. Maintenance procedure after completion of assembly
