Kubota B1241D-EC-M-S5 Compact Tractor Parts Manual (BKIDA5180)

The Kubota B1241D-EC-M-S5 is a compact tractor, the kind you’ll see on small farms, acreages, and grounds crews. The Kubota B1241D-EC-M-S5 parts manual is what parts counters, farm mechanics, and owner‑operators grab when they’re trying to nail down exactly which bolt, seal, or linkage they’re looking at. You’d use this before tearing something apart so you can order the right bits and cut downtime when you really can’t afford it during planting or harvest. If you’re trying to see how assemblies fit together or what to ask your Kubota dealer for, this is the right type of book.

What this manual helps you do

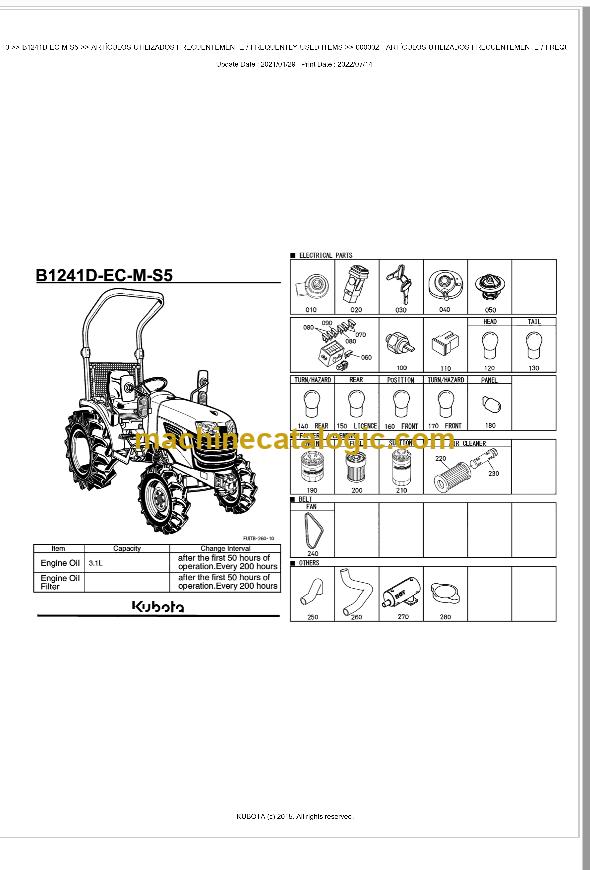

• Identify OEM Kubota part numbers for engine, transmission, axles, hydraulics, PTO, 3‑point hitch, steering, and electrical components on the B1241D-EC-M-S5.

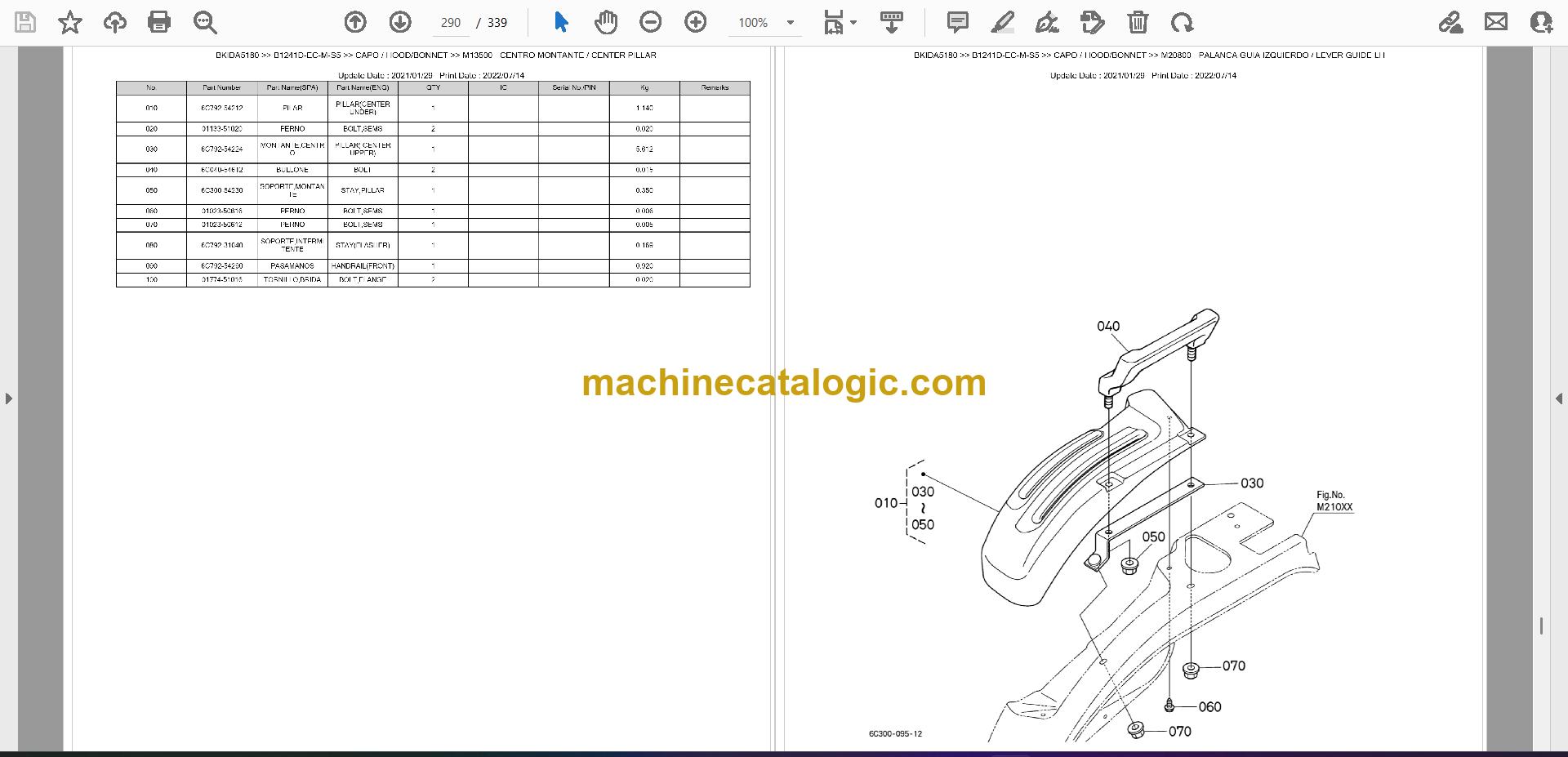

• Locate the exact seal, bearing, bushing, or gasket in exploded diagrams so you don’t guess at parts when you’re standing at the bench with it in your hand.
• Look up quantity‑per‑tractor for hardware and small parts so you can order everything for a job in one run instead of making three trips to town.
• Cross-reference older part numbers to the newer superseded Kubota numbers shown in the catalog before you place an order.
• Verify that the parts you’re about to buy actually match your B1241D-EC-M-S5 configuration by using the illustrated assemblies and callouts.

Who this is for

This parts manual is aimed at independent ag mechanics, farm owner‑operators, Kubota dealer parts staff, and anyone maintaining a small fleet of these compact tractors. If you’re looking for torque specs, wiring diagnostics, or step‑by‑step repair procedures, you want the Workshop/Service Manual instead, not this parts catalog.

FAQ

Q: Does this cover the hydraulic system, PTO, and 3‑point hitch assemblies?

A: Yes, this kind of Kubota parts manual typically includes exploded views and part numbers for the hydraulics, PTO drive, and 3‑point hitch hardware.

Q: Are the part numbers in here current, or does it show superseded numbers?

A: The manual usually shows Kubota superseded part numbers, but your dealer’s parts system is the final word on the latest replacements.

Bottom line: If your goal is to identify and order the correct Kubota parts for a B1241D-EC-M-S5, this BKIDA5180 parts manual is what you need; if you want how‑to repair info, keep looking for the service manual instead.
