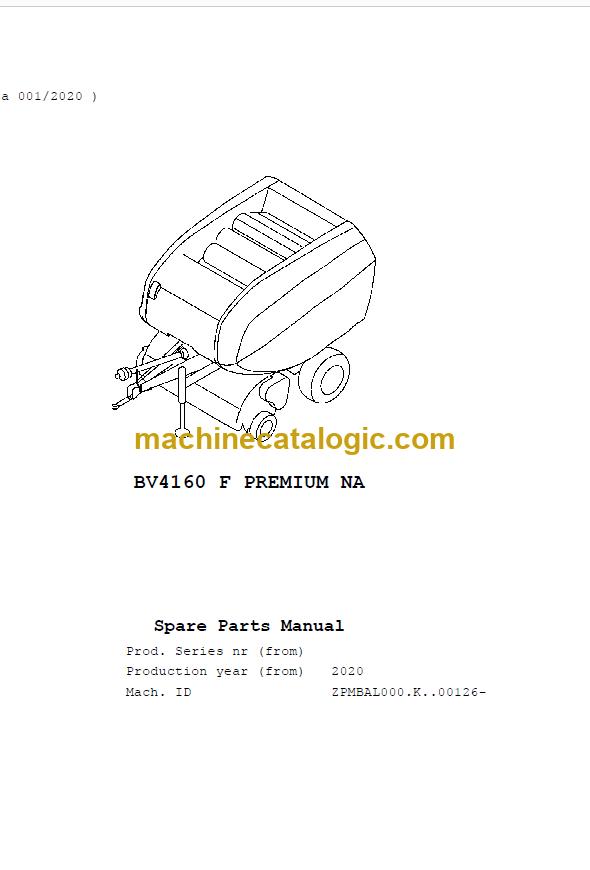

Kubota BV4160 F PREMIUM NA Variable Chamber Round Baler Parts Manual

The Kubota BV4160 F PREMIUM NA is a variable chamber round baler that most of us lean on hard during hay season, so downtime is expensive. This Kubota BV4160 F PREMIUM NA parts manual is what my crew would use at the bench or parts counter when we’re trying to ID a broken pickup tine bracket, match belts, or line up bearings and chains before a scheduled service window. If your main goal is to see every assembly exploded on paper and walk into the dealer with the right Kubota numbers, you’re in the right place. If you’re hoping for repair procedures or setup specs, that’s a different book.

What this manual helps you do

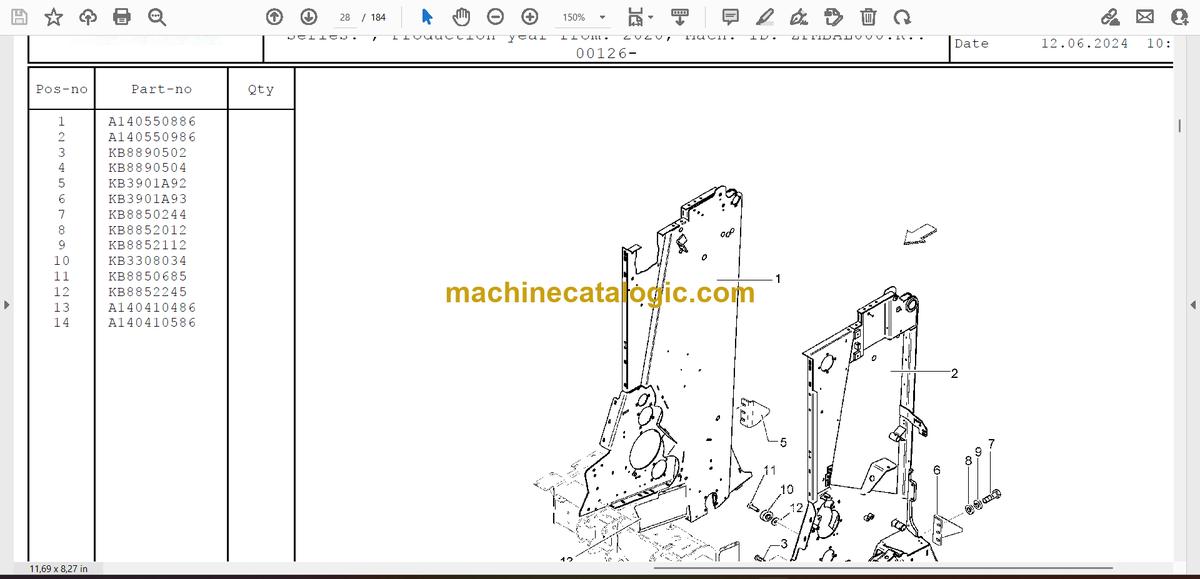

• Identify every component in the baler (pickup, chamber, net wrap system, driveline, etc.) from exploded view diagrams tied to Kubota OEM part numbers.
• Locate the exact fasteners, spacers, seals, and bearings you’ll need so you can order complete kits and avoid mid-job parts runs.
• Look up the correct Kubota part number for worn chains, belts, and rollers and hand your dealer a clean pick list instead of a guess.
• Cross-reference older part numbers shown in the diagrams to updated Kubota supersessions that most parts desks usually recognize.
• Verify quantities-per-machine so you don’t under-order hardware when planning preseason rebuilds across multiple balers.

Who this is for

This parts manual fits how a farm owner-operator, independent ag mechanic, or fleet maintenance manager actually works when keeping a BV4160 F PREMIUM NA in rotation. If you need torque specs, setup procedures, troubleshooting trees, or hydraulic test steps, you want the Kubota workshop/service manual, not this parts catalog.

FAQ

Q: Does this cover the full baler, including pickup, chamber, net wrap, driveline, and electrical?

A: Yes, this kind of Kubota parts manual typically covers all major assemblies on the BV4160 F PREMIUM NA with exploded diagrams and parts lists.

Q: Are the part numbers in the manual current, or does it show superseded numbers too?

A: The manual lists Kubota OEM part numbers and usually notes superseded numbers, but your dealer will confirm the latest live number in their system.

Bottom line: If your goal is to identify and order the correct Kubota parts for a BV4160 F PREMIUM NA round baler, this parts manual is what you need; if you’re trying to learn how to repair or adjust the baler, keep looking for the service manual instead.
