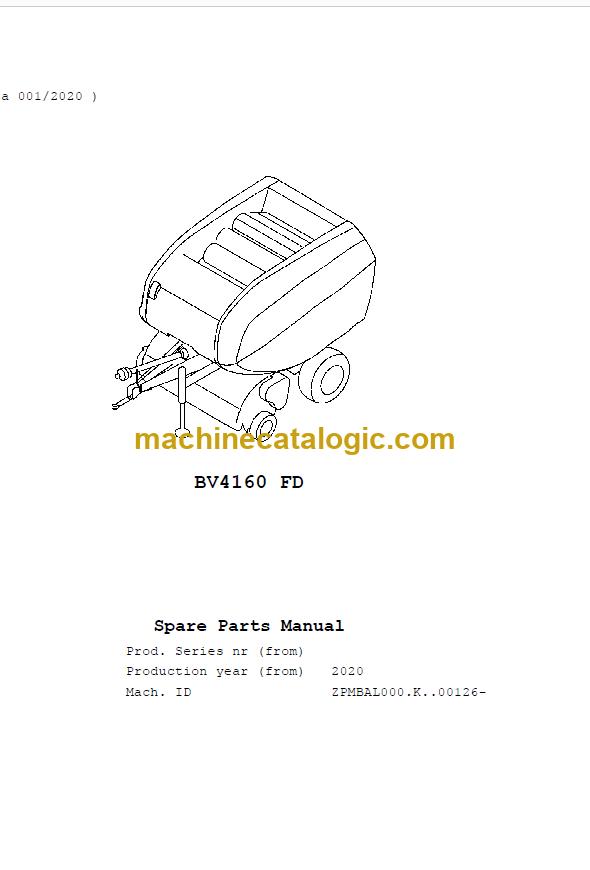

Kubota BV4160 FD Variable Chamber Round Baler Parts Manual

The Kubota BV4160 FD is a variable chamber round baler, the kind you hook behind the tractor when you’re rolling hay all day. The Kubota BV4160 FD parts manual is what folks like me reach for when a pickup tooth snaps, a roller bearing goes, or you want to line up all the right belts and chains before a rainy-day tear-down. If you’re the type who likes to order parts ahead and avoid three trips to the dealer, this is the book you’re thinking of. It’s about “what part is that and what’s the number,” not “how do I fix it.”

What this manual helps you do

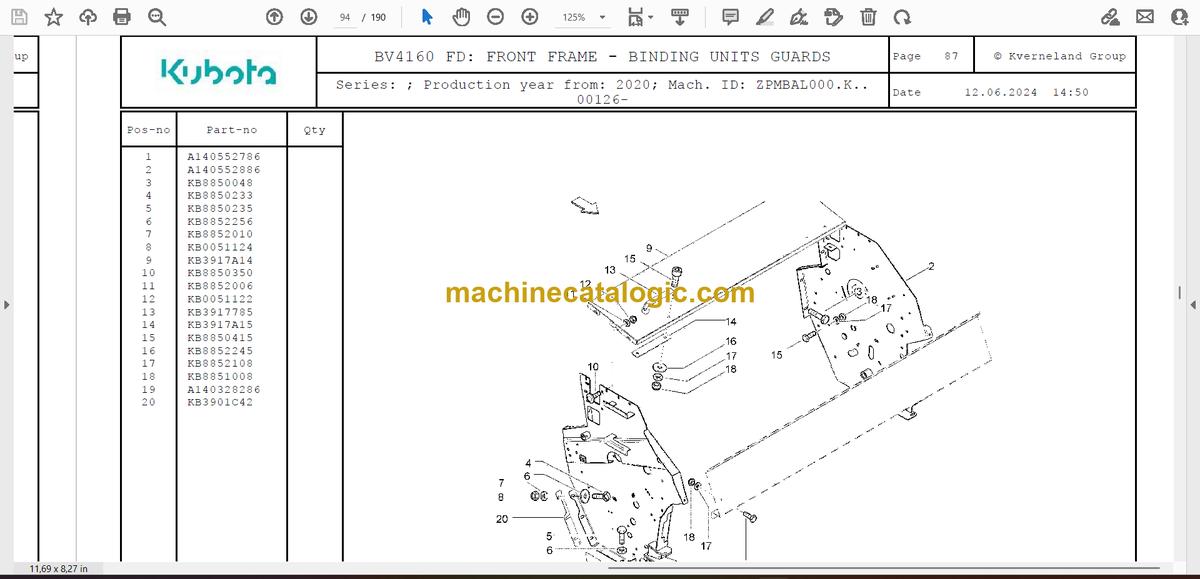

• Identify every component on the BV4160 FD baler in exploded diagrams so you can see how each assembly fits together before you pull it apart.
• Locate the exact OEM Kubota part number for things like pickup tines, belts, chains, sprockets, bearings, and shields when you’re standing at the parts counter.
• Look up how many of each fastener, seal, or small hardware item you need so you can order a full set and not come up one bolt short on a Sunday.
• Cross-reference older part numbers shown in the BV4160 FD parts manual with updated Kubota numbers when parts have been superseded.
• Verify that the parts you’ve got in a box actually match the diagram and callouts before you button the baler back up and head to the field.

Who this is for

This suits a farm owner-operator, independent ag mechanic, or Kubota dealer parts person who already knows how to wrench and just needs the correct parts breakdown. If you’re after torque specs, timing/adjustment procedures, or troubleshooting like I use the WSM for my L3901 or BX, you need the workshop/service manual instead, not this parts catalog.

FAQ

Q: Does this cover the whole baler, including pickup, hydraulics, and net/twine systems?

A: Yes, a Kubota parts manual for the BV4160 FD normally breaks down all major assemblies on the baler, including pickup, bale chamber, drive, hydraulic, and tying systems.

Q: Are the part numbers in this manual current?

A: The manual shows the OEM part numbers used at publication and often notes superseded numbers, but your Kubota dealer will confirm the latest valid number at the counter.

Bottom line: If you already know how to do the repair and just need diagrams and part numbers for your BV4160 FD, this is exactly what you want; if you need “how-to” instructions, keep looking for the service/WSM manual instead.

Table of Contents:

• Major Assemblies
  • Primary Component Groups
  • Sub-Assembly Breakdowns
  • Exploded View Diagrams
• Engine Components (if equipped)
  • Engine Block & Internals
  • Cooling & Lubrication
  • Fuel System
  • Air Intake & Exhaust
  • Electrical Components
• Mechanical Systems
  • Drivetrain Components
  • Hydraulic System (if equipped)
  • Controls & Linkages
  • Bearings, Shafts & Couplings
• Frame & Structure
  • Main Frame / Chassis
  • Body Panels & Covers
  • Mounting Hardware
• Electrical System (if equipped)
  • Battery & Cables
  • Wiring Harness
  • Switches, Lights & Sensors
• Reference
  • Fasteners (Bolts, Nuts, Washers)
  • Gaskets, Seals & O-Rings
  • Decals & Warning Labels
  • Numerical Part Number Index

Note: Topics above are typical for Kubota parts manuals of this equipment type. The actual manual may contain additional sections and detailed breakdowns.
