Kubota KX101-3ALPHA Compact Excavator Parts Manual (BKIDA0303)

The Kubota KX101-3ALPHA is a rubber-track compact excavator you’ll see on farms and small jobsites for trenching, drainage, and general digging. The Kubota KX101-3ALPHA parts manual is what parts counters and independent shops grab when they need to see how an assembly fits together and what to order. Most folks use it to ID pins, bushings, cylinder kits, undercarriage bits, or hydraulic components before they tear the machine down. If you’re trying to plan a repair and price parts without guessing, this is the right style of book.

What this manual helps you do

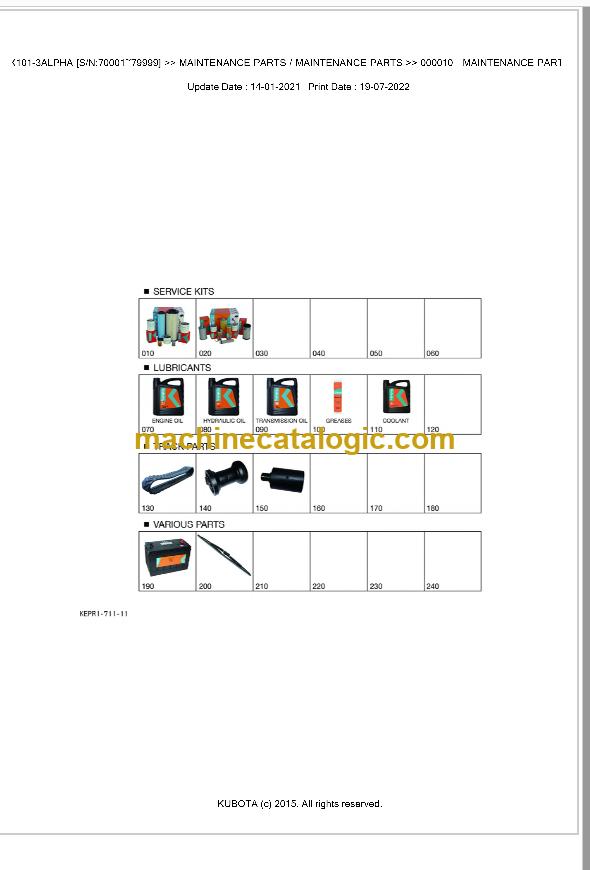

• Identify the exact OEM Kubota part number for things like boom, arm, and bucket pins, bushings, and linkages on the KX101-3ALPHA.

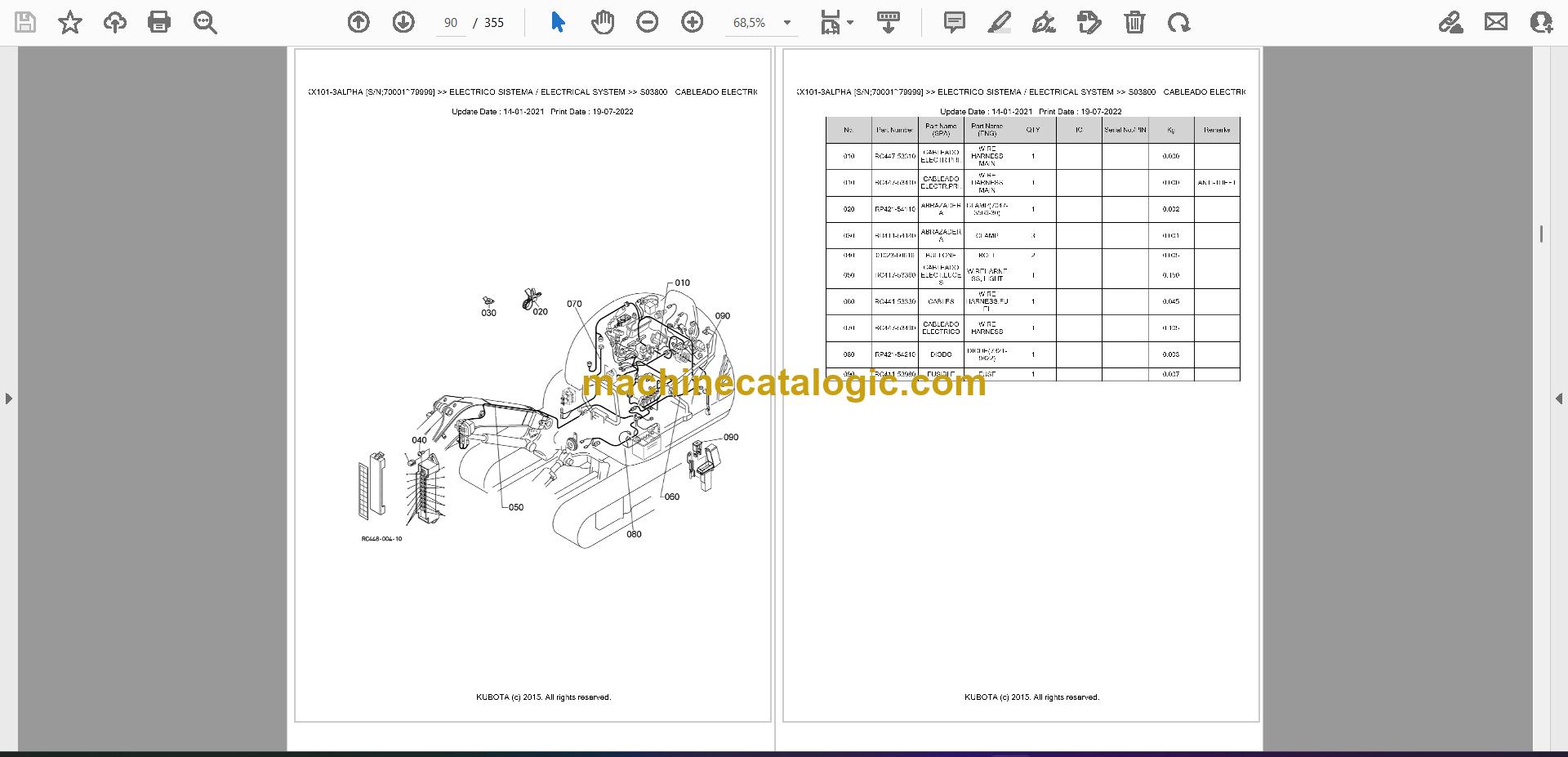

• Locate every component in the engine, swing motor, travel motors, and hydraulic valve stacks using exploded diagrams so you know what’s actually inside.
• Look up seals, o-rings, and gasket sets for cylinders, pumps, and final drives by diagram callout instead of guessing from a parts bin.
• Cross-reference older Kubota part numbers to newer superseded numbers shown in the parts listings so the dealer gives you the current part.
• Verify quantities of bolts, shims, filters, and wear parts per machine so you order everything in one shot and don’t lose a day’s work waiting on one $2 piece.

Who this is for

This suits an independent ag mechanic, farm owner-operator, fleet maintenance tech, or Kubota dealer parts staff who already know how to wrench and just need the correct numbers. If you’re looking for torque specs, wiring tests, or step-by-step repair procedures, you want the Kubota Workshop Manual, not this parts catalog.

FAQ

Q: Does this cover the engine, hydraulics, and undercarriage on the KX101-3ALPHA?

A: Yes, this type of Kubota parts manual typically shows exploded views and part listings for the engine assembly, hydraulic system, swing and travel drives, and full undercarriage.

Q: Are the part numbers in here the latest ones from Kubota?

A: The manual shows the OEM numbers used at print time and usually notes superseded numbers, but your dealer can confirm if anything has been updated again.

Bottom line: If your main goal is to see how the KX101-3ALPHA is built and get the right Kubota part numbers so you can source parts smart and save some money, this is the right manual; if you need repair instructions, keep looking for the WSM instead.
