Kubota KX101-3ALPHA2 Compact Excavator Parts Manual (BKIDA0407)

The Kubota KX101-3ALPHA2 is a rubber-track compact excavator, the kind you see on utility jobs, drainage work, and tighter construction sites. The Kubota KX101-3ALPHA2 parts manual is what parts counters, independent shops, and owner-operators grab when something’s worn, bent, or leaking and they need the exact Kubota number before ordering. People use this sort of book to plan a cylinder reseal, sort out which pin and bushing kit fits which joint, or check what’s inside a swing or travel motor before they tear into it.

What this manual helps you do

• Identify the correct OEM Kubota part number for pins, bushings, cylinders, valves, hoses, and hardware on the KX101-3ALPHA2.
• Locate every component in assemblies like the boom, arm, bucket linkage, swing motor, track drives, undercarriage, cab, and electrical harness.

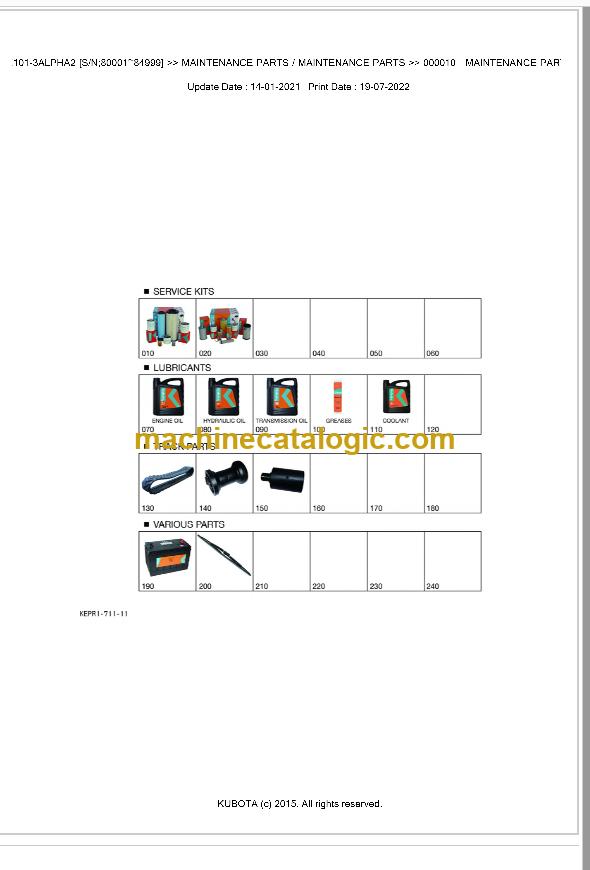

• Look up seal kits, gasket sets, O-rings, and small hardware with quantity-per-machine so you don’t come up short mid-rebuild.
• Cross-reference older Kubota numbers to the newer superseded part numbers shown in the catalog so the dealer can still order it.

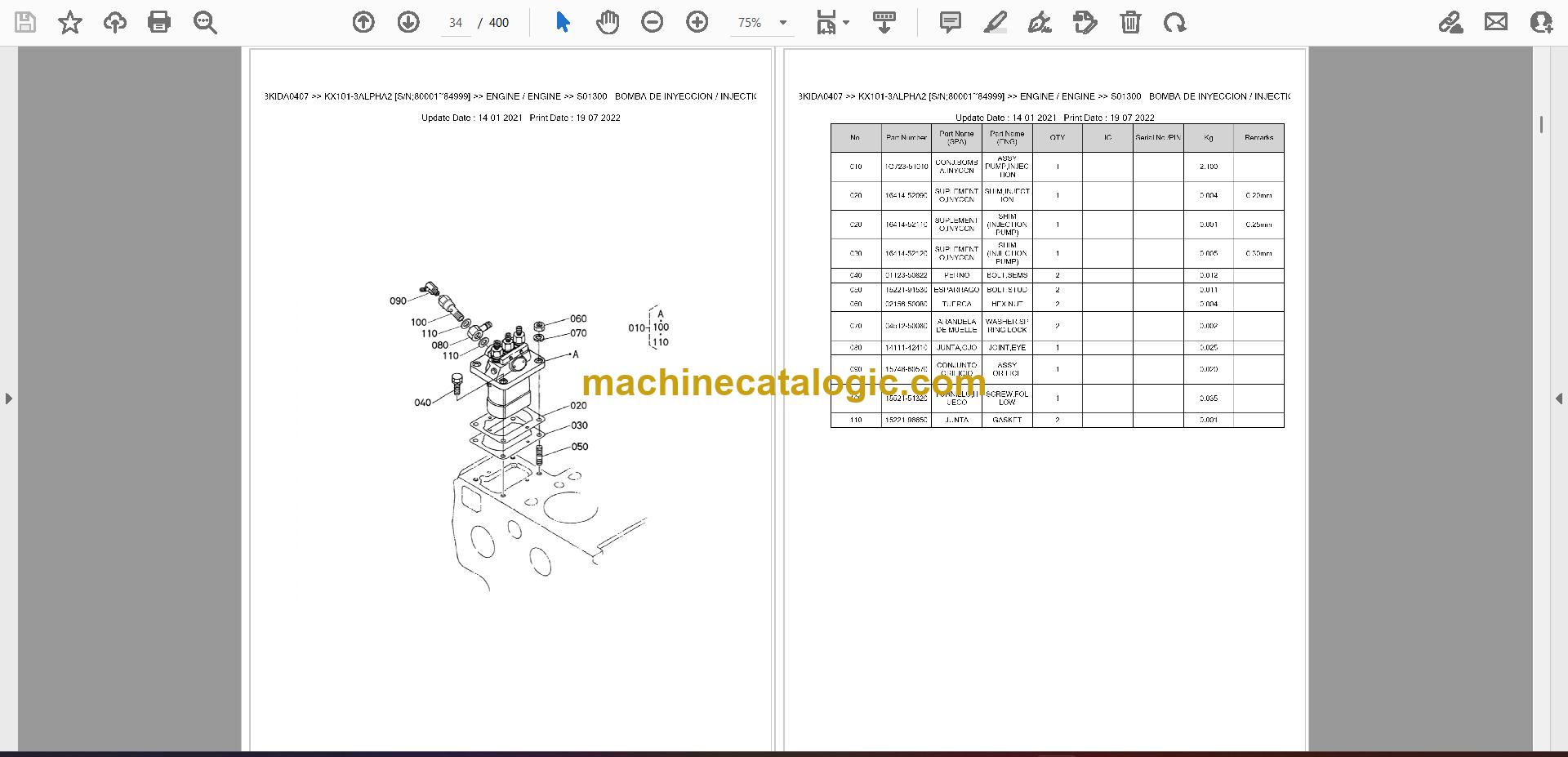

• Verify that the parts you’re about to buy or pull off a donor machine actually match your KX101-3ALPHA2 by illustration and callout.

Who this is for

This parts manual is aimed at an independent mechanic, contractor, or Kubota dealer parts person who already knows how to do the work and just needs the right numbers and diagrams. If you’re looking for torque specs, hydraulic test procedures, or step-by-step repair instructions, you need the Workshop/Service Manual, not this parts catalog.

FAQ

Q: Does this cover the engine, hydraulics, and travel gearboxes, or just the boom and bucket?

A: It typically breaks down the whole machine: engine assemblies, hydraulic pumps and valves, cylinders, swing and travel motors, undercarriage, and structures.

Q: Are the part numbers in here the latest ones from Kubota?

A: The manual shows the OEM numbers used when it was printed and usually notes superseded numbers, but the dealer’s system is the final word on current part numbers.

Bottom line: If you already know how to fix a Kubota excavator and just need clear exploded views and correct Kubota numbers for a KX101-3ALPHA2, this is the right book; if you’re hunting for “how-to” repair steps, keep looking for the WSM instead.
