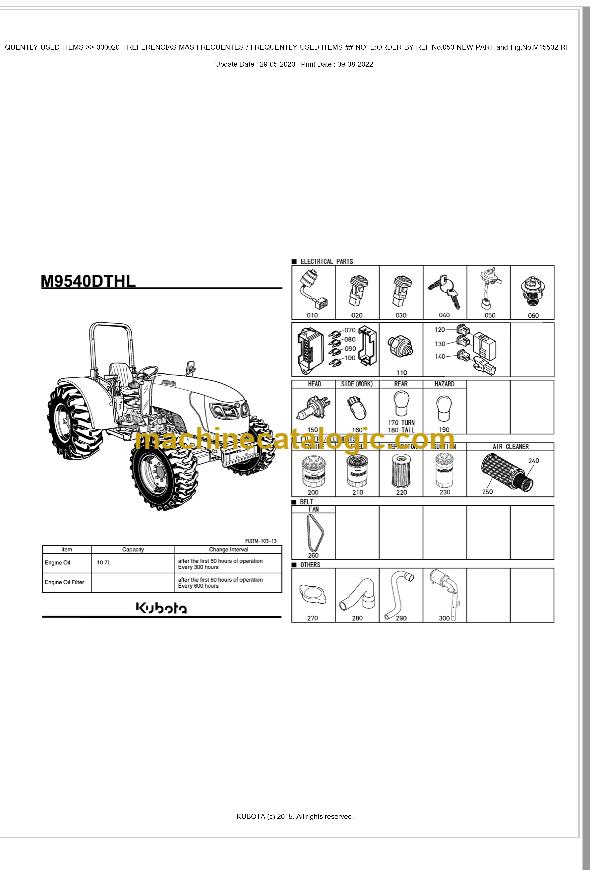

Kubota M9540DTHL Utility Tractor Parts Manual (BKIDK0660)

The Kubota M9540DTHL is a mid-size utility tractor that most folks use for haying, loader work, and general farm chores. The Kubota M9540DTHL parts manual is what I grab when I’m trying to figure out exactly which piece, seal, or bracket I’m dealing with before I spend money at the dealer. If you’re planning a repair, want to price parts online, or don’t want the tractor sitting torn apart while you “guess” at part numbers, this is the book that keeps you out of trouble.

What this manual helps you do

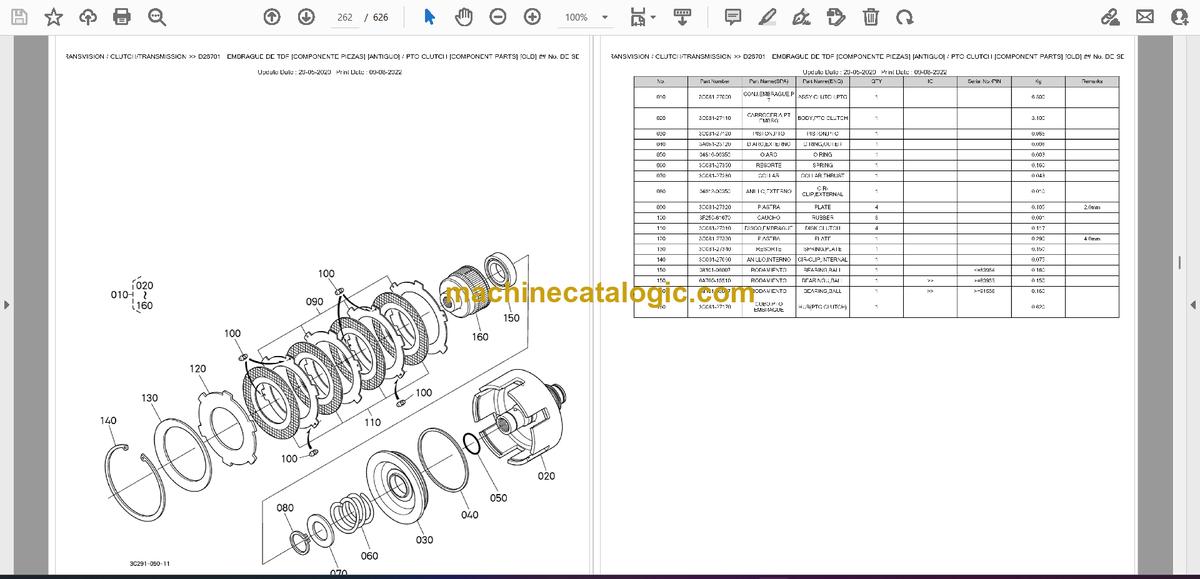

• Identify every component in the engine, transmission, front axle, hydraulics, PTO, 3‑point hitch, and electrical system by exploded diagrams.
• Locate the exact Kubota OEM part number for worn bushings, seals, filters, linkage pieces, and hardware so you can shop dealer vs aftermarket.
• Look up how many of each gasket, O‑ring, bolt, or bearing the M9540DTHL uses in a given assembly before you tear it down.
• Cross-reference older part numbers to newer superseded Kubota numbers shown in the catalog so you don’t order obsolete stock.
• Verify that the parts your dealer or online seller is offering actually match what was fitted to the M9540DTHL from the factory.

Who this is for

This parts manual fits people who turn their own wrenches: independent ag mechanics, farm owner‑operators, and small contractors running an M9540DTHL. If you’re after torque specs, wiring tests, or step‑by‑step repair procedures, you’ll want the Kubota Workshop/Service Manual instead, not this parts catalog.

FAQ

Q: Does this cover the engine, hydraulics, PTO, and 3‑point hitch on the M9540DTHL?

A: Yes, this kind of Kubota parts manual normally shows full breakdowns for the engine, hydraulic system, PTO drive, and 3‑point hitch assemblies.

Q: Are the part numbers in this manual current?

A: The manual shows the original Kubota part numbers and usually notes superseded numbers, but I still recommend checking any critical items against a dealer’s current system.

Bottom line: If you already know how to fix the tractor and just need diagrams and part numbers for the Kubota M9540DTHL, this parts manual (BKIDK0660) is the right buy; if you need “how-to” repair steps, keep looking for the service manual instead.
