Kubota ME5700DTH Compact Tractor Parts Manual (BKIDK0515)

The Kubota ME5700DTH is a mid-size compact tractor that most folks use for haying, loader work, and general farm chores. The Kubota ME5700DTH parts manual is what I reach for when I’m trying to ID a worn pin, seal, or casting before I ever pick up a wrench. If you’re planning a front axle refresh, chasing a hydraulic leak, or pricing parts against your local dealer, this is the book that lays the machine out in pieces so you can see what’s what.

What this manual helps you do

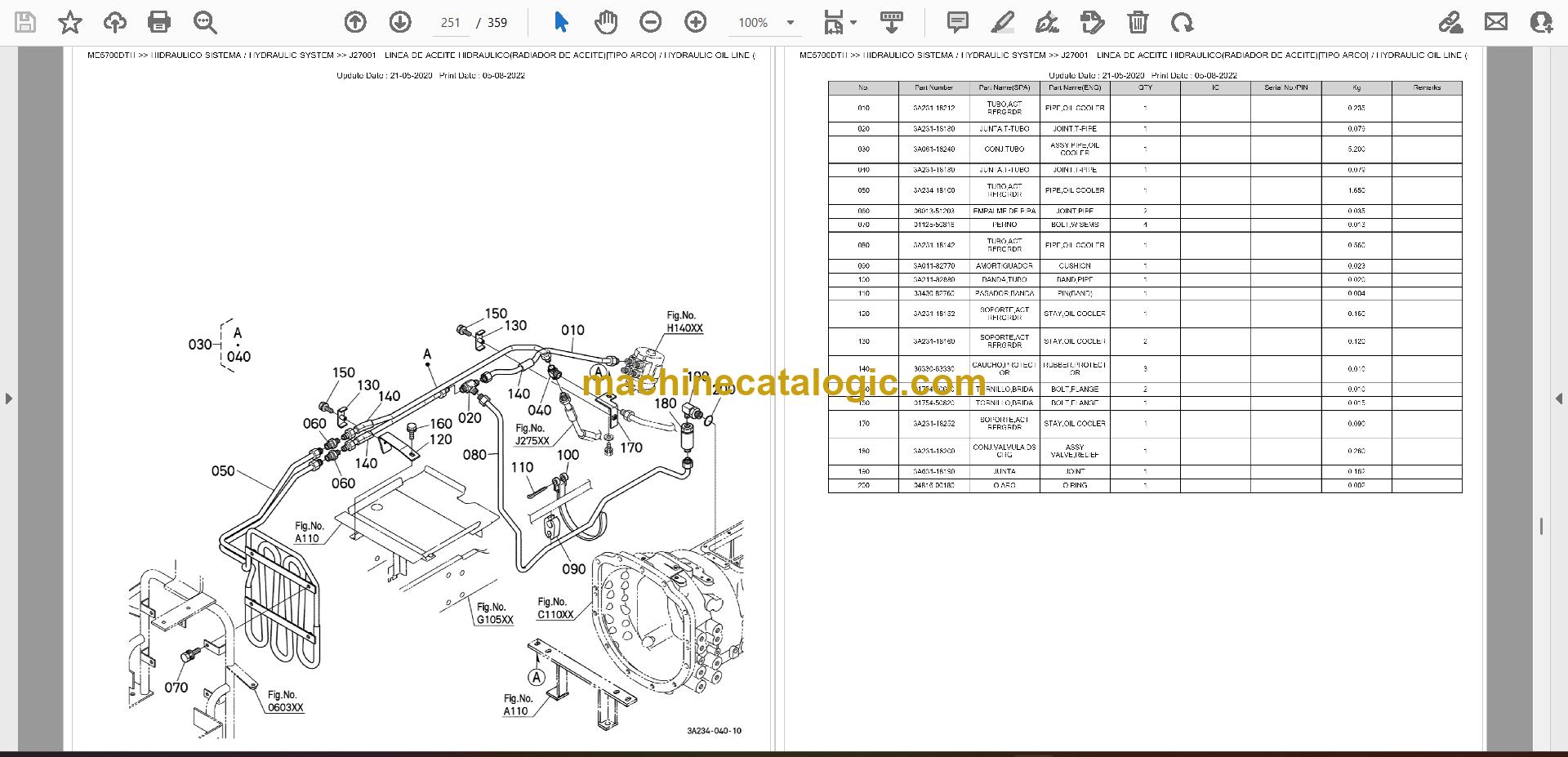

• Identify every OEM Kubota part number on the ME5700DTH using exploded diagrams of the engine, transmission, axles, hydraulics, PTO, and 3-point hitch.
• Locate exactly where a gasket, seal, bushing, or fitting sits in an assembly so you don’t order the wrong one or tear down more than you need.
• Look up the correct quantity of bolts, washers, snap rings, and small hardware when you’re rebuilding a subassembly or replacing broken fasteners.
• Cross-reference older Kubota part numbers to the newer superseded numbers that most parts counters now use, so you’re speaking the dealer’s language.
• Verify the part number before you order online or from a wrecker, so you can compare prices and maybe save some money versus walking straight into the dealer blind.

Who this is for

This parts manual is aimed at an independent ag mechanic, farm owner-operator, Kubota dealer parts counter, or anyone maintaining a small fleet of orange tractors. If you need torque specs, wiring tests, clutch or valve adjustment procedures, you want the Kubota Workshop Manual instead; this is a parts catalog, not a repair guide.

FAQ

Q: Does this cover the engine, hydraulics, PTO, and 3-point hitch on the ME5700DTH?

A: Yes, a Kubota ME5700DTH parts manual like BKIDK0515 typically shows full breakdowns of the engine, hydraulic system, PTO drive, and 3-point assemblies.

Q: Are the part numbers in this manual still current?

A: The manual shows the original Kubota numbers and usually notes superseded part numbers, but I still tell folks to have the dealer or online catalog confirm any critical items.

Bottom line: If you’re trying to identify and order the right Kubota ME5700DTH parts by number, this is the right manual; if you’re trying to learn how to do the repair step-by-step, you’ll need the Workshop Manual instead.
