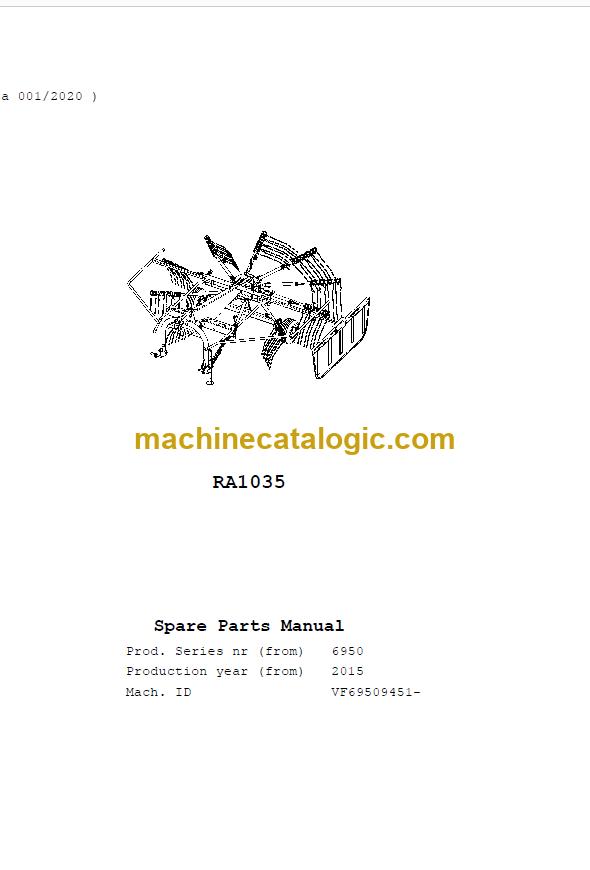

Kubota RA1035 Rotary Rake Parts Manual

Kubota’s RA1035 is a PTO-driven rotary rake used behind compact and utility tractors for clean windrows. The Kubota RA1035 parts manual is what people grab at the parts counter or in the shop when a tine arm’s bent, a hub is loose, or they’ve scattered hardware in the gravel and need to see what goes where. Buyers are usually trying to identify the exact Kubota part number, see how the assemblies stack together, and order everything they need before they tear the rake apart.

What this manual helps you do

• Identify every OEM Kubota part number on the RA1035 rake: tine arms, tines, guards, gearbox internals, PTO shaft pieces, wheels, and frame hardware.
• Locate where each washer, bolt, spacer, and seal fits in the assembly using exploded diagrams, so you don’t guess during reassembly.
• Look up quantity-per-machine for fasteners, bushings, and bearings when you’re pricing a full refresh of the rake.
• Cross-reference older RA1035 part numbers to the superseded Kubota numbers the dealer’s system now uses.
• Verify that the parts you’re about to order match your existing configuration before you spend money or park the rake mid-season.

Who this is for

This parts manual fits an independent ag mechanic, farm owner-operator, Kubota dealer parts staff, or a hay equipment collector keeping an RA1035 alive. If you need torque specs, gearbox setup procedures, or PTO driveline adjustment steps, you want the Kubota workshop/service manual instead, not this parts catalog.

FAQ

Q: Does this parts manual cover the rake gearbox, PTO shaft, and running gear, or just the tines?

A: It covers the whole RA1035 rotary rake assembly, including gearbox, PTO driveline, rake basket, frame, wheels, and related hardware.

Q: Are the part numbers in this manual current, or will my dealer have different numbers?

A: The manual shows the original Kubota numbers and usually notes superseded numbers, but your dealer’s system is always the final word on the latest updates.

Bottom line: If your goal is to see every RA1035 component exploded out with Kubota part numbers so you can order and reassemble correctly, this is the right manual; if you’re trying to learn how to repair or adjust the rake, keep looking for the service manual instead.

Table of Contents:

• Main Frame
  • Frame Assembly
  • Hitch / Mounting Brackets
  • 3-Point Hitch Pins
• Working Components
  • Tines / Blades / Tools
  • Tine Carriers / Holders
  • Wear Plates
  • Shear Bolts (if equipped)
• Drive System

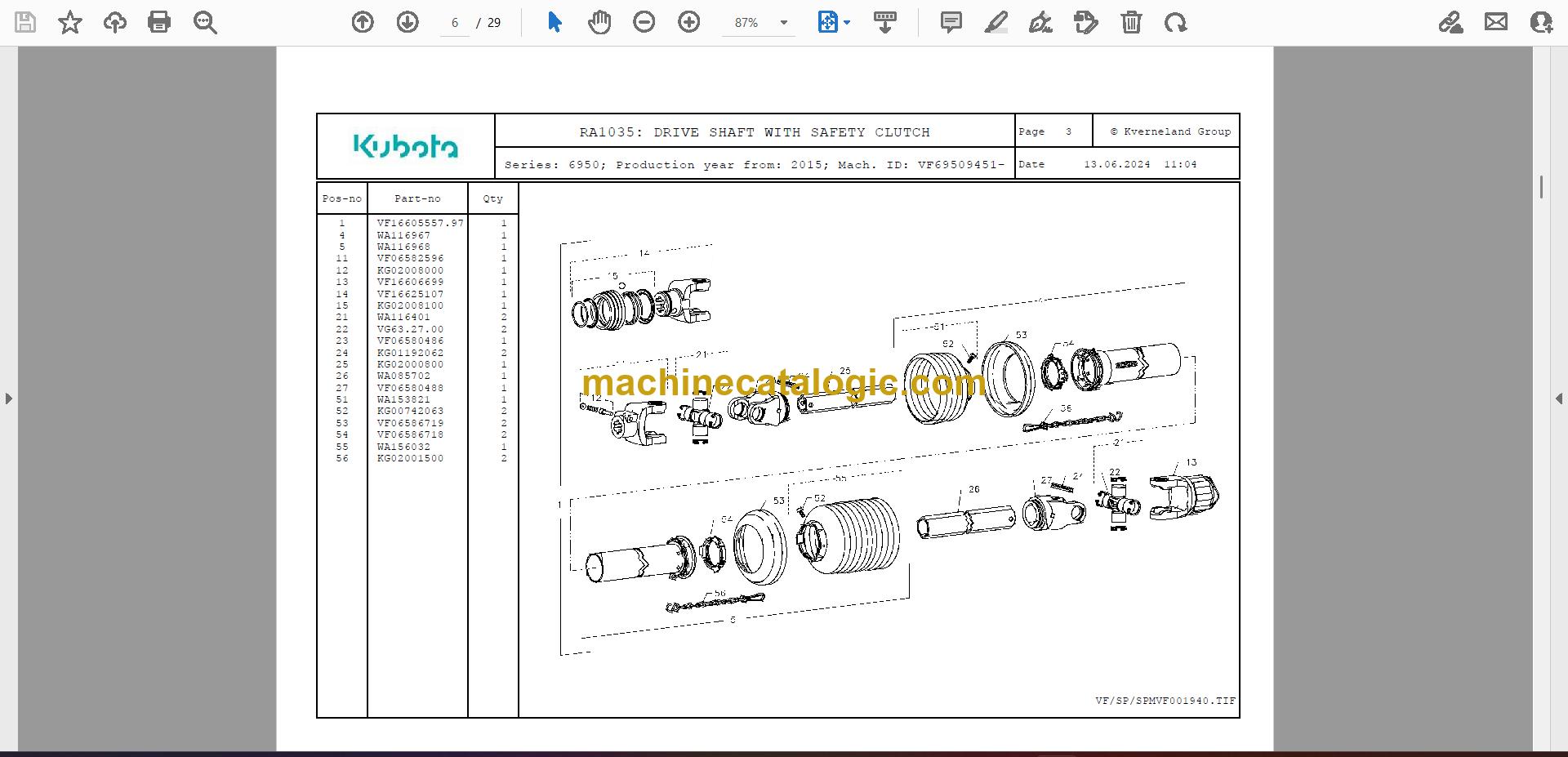

  • Drive Shaft & PTO Connection
  • Gear Box
  • Chains / Belts (if equipped)
  • Slip Clutch / Shear Pin Drive
• Hydraulic Components
  • Hydraulic Cylinders (if equipped)
  • Hoses & Fittings
  • Adjustment Mechanisms
• Wheels & Rollers
  • Gauge Wheels
  • Packer Rollers (if equipped)
  • Wheel Hardware
• Reference
  • Bolts, Nuts & Washers
  • Decals & Warning Labels
  • Numerical Part Number Index

Note: Topics above are typical for Kubota parts manuals of this equipment type. The actual manual may contain additional sections and detailed breakdowns.
