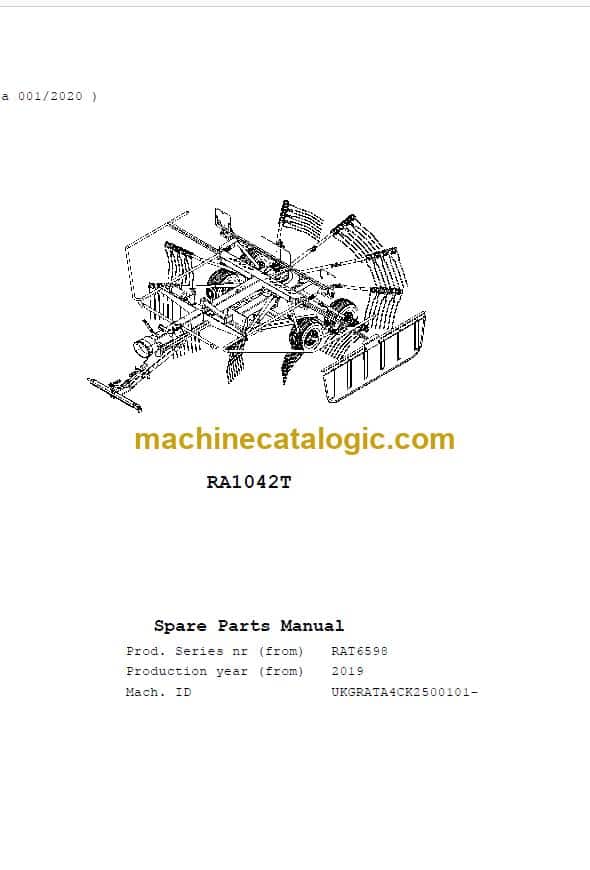

Kubota RA1042T Rotary Rake Parts Manual

The Kubota RA1042T is a rotary rake used behind a tractor for windrowing hay and straw, so downtime usually hits right when the crop is ready. The Kubota RA1042T parts manual is what mechanics, farm owners, and dealer parts counters reach for when a tine arm breaks, a bearing goes out, or they’re planning to refresh wear parts before the next cutting. You’d use this parts manual to see how the rake is built and to get the right Kubota numbers before you spend money at the dealer or online.

What this manual helps you do

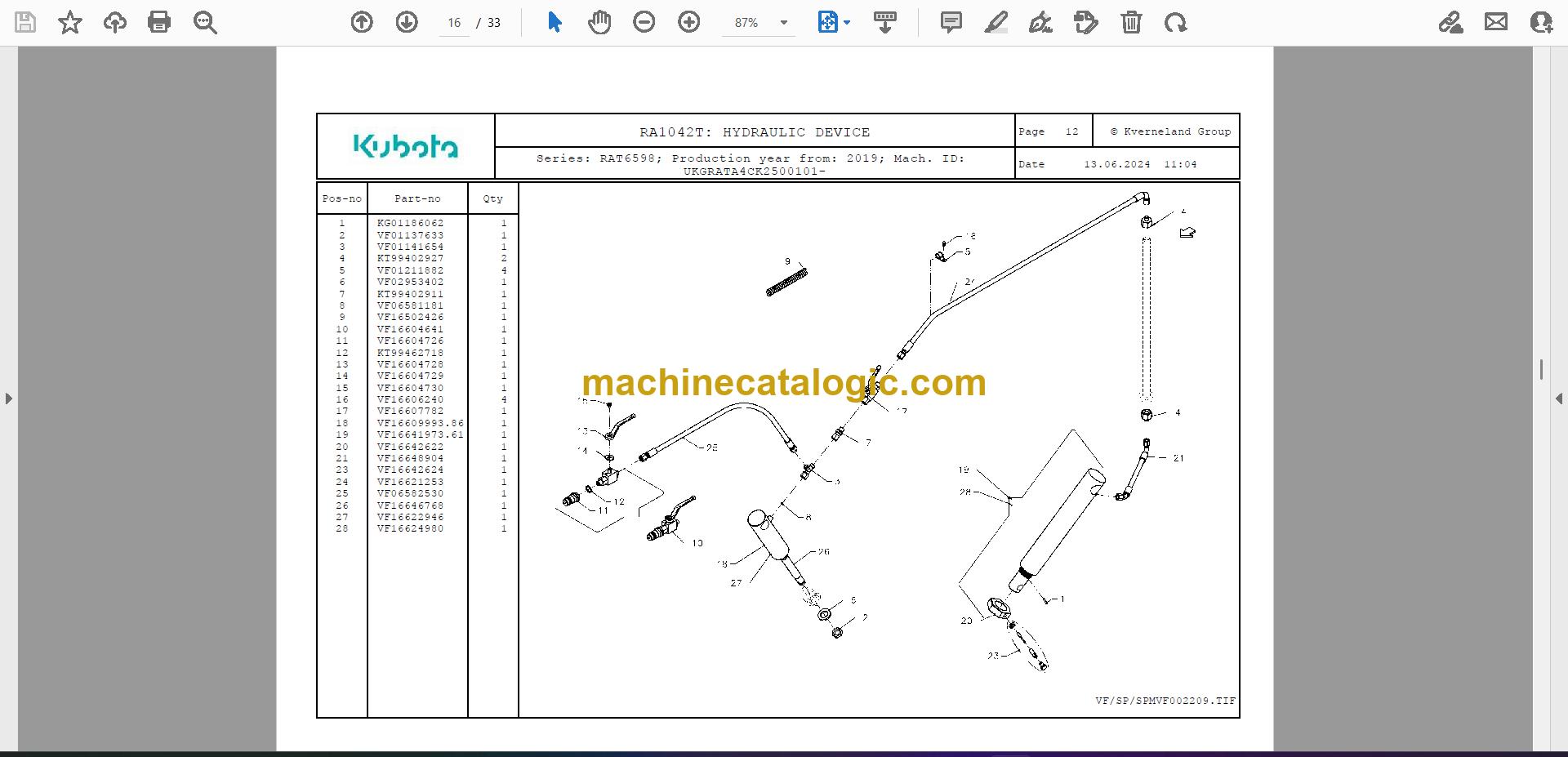

• Identify every component on the RA1042T rake using exploded diagrams so you know exactly which arm, hub, shield, or bracket you’re dealing with.
• Locate the correct Kubota OEM part numbers so you can order from a dealer, aftermarket source, or salvage yard without guessing.
• Look up how many tines, bolts, nuts, seals, and small hardware pieces are on the machine so you buy the right quantities for a full repair.
• Cross-reference older or superseded part numbers shown in the manual so you and the parts desk are talking about the same updated Kubota parts.
• Verify that a used or aftermarket part actually matches what your RA1042T rake left the factory with, before you tear into it.

Who this is for

This suits an independent ag mechanic, farm owner-operator, small hay contractor, or Kubota parts person who needs to identify and source RA1042T rotary rake parts accurately. If you’re after repair procedures, torque specs, or adjustment instructions, you need the Workshop/Service Manual instead; this is strictly a parts catalog.

FAQ

Q: Does this cover the whole rake, including gearbox, rotor, and running gear?

A: Yes, a Kubota RA1042T parts manual typically includes exploded views and part listings for the gearbox, rotor assemblies, frame, wheels, PTO shaft, and related hardware.

Q: Are the part numbers in this manual current?

A: The manual shows the OEM numbers used when it was published and often notes superseded numbers, but your dealer can confirm the latest live Kubota numbers.

Bottom line: If your goal is to correctly identify and order parts for a Kubota RA1042T rotary rake, this is the right manual; if you need how-to repair steps, keep looking for the service manual instead.
