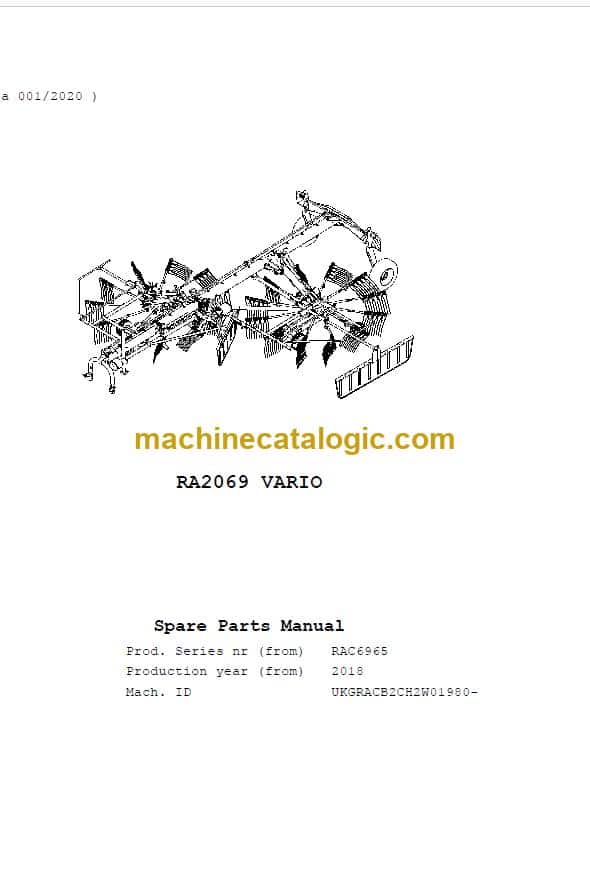

Kubota RA2069 VARIO Rotary Rake Parts Manual

The Kubota RA2069 VARIO is a rotary rake used behind a tractor to clean up windrows and keep hay moving efficiently. The Kubota RA2069 VARIO parts manual is what the mechanic, parts guy, or fleet manager grabs when a tine arm is bent, a gearbox seal is weeping, or a guard goes missing and you need the exact Kubota number. You use this before you call the dealer, so you’re not guessing at parts or waiting twice for backorders.

What this manual helps you do

• Identify the correct OEM part number for rake tines, tine arms, guards, wheels, and frame components on the RA2069 VARIO.

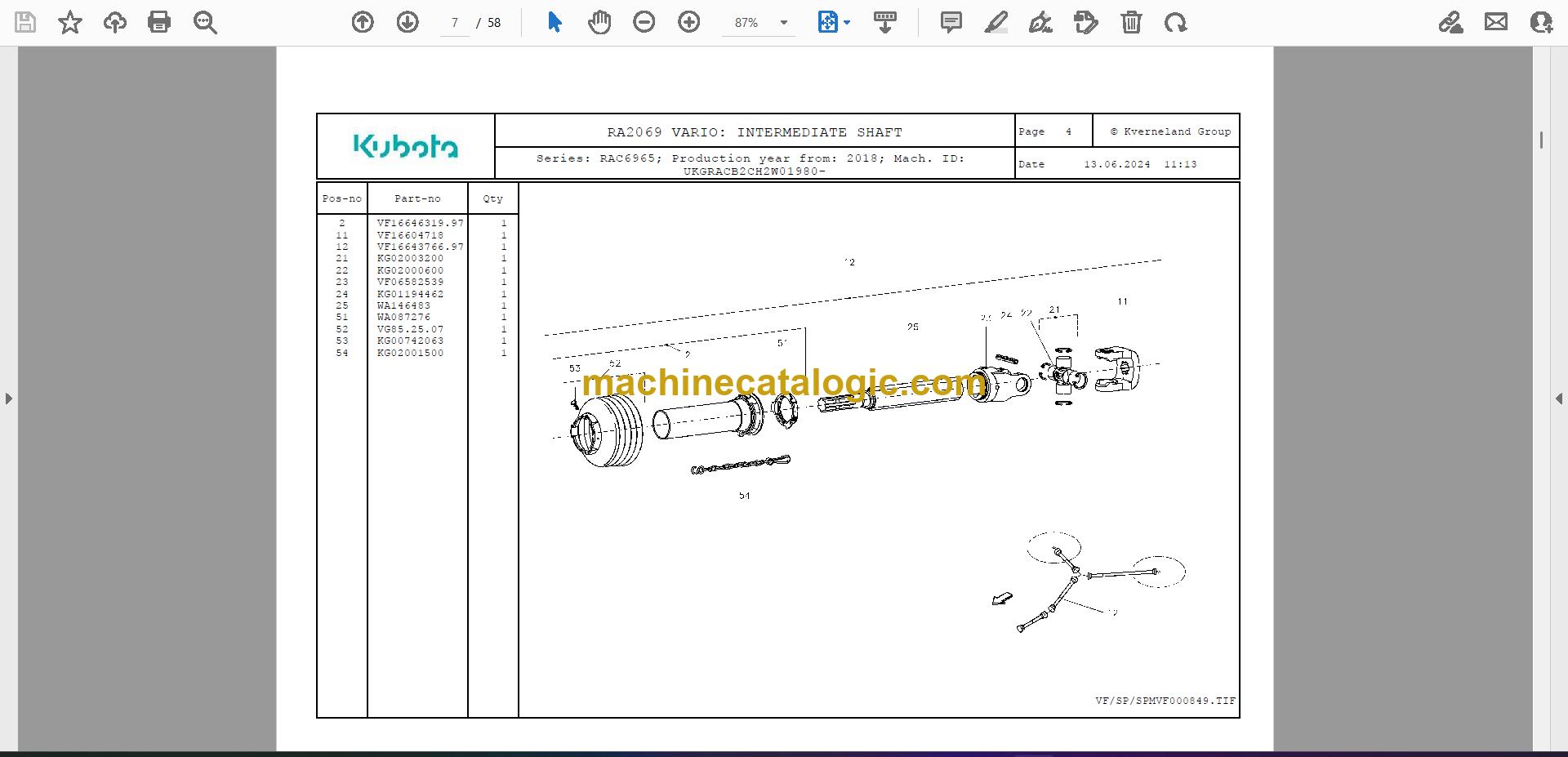

• Locate specific hardware, seals, and bearings in the rotor, gearbox, and running gear assemblies using exploded diagrams.
• Look up quantity-per-machine so you order the full set of tines, bolts, or seals in one shot instead of piecemeal.
• Cross-reference older part numbers shown in the diagrams with superseded Kubota numbers your dealer now uses.
• Verify that a part on the shelf or in your inventory actually matches the RA2069 VARIO before you schedule downtime.

Who this is for

This parts manual fits an independent ag mechanic, farm owner-operator, landscape contractor, or fleet maintenance manager running RA2069 VARIO rakes. If you need torque specs, hydraulic tests, or repair procedures, you want the Kubota workshop/service manual instead; this is strictly the illustrated parts catalog.

FAQ

Q: Does this cover the full rotary rake assemblies like rotors, gearbox, PTO driveline, and running gear?

A: Yes. A Kubota RA2069 VARIO parts manual typically shows exploded views and part numbers for the main rake frame, rotors, driveline, gearbox, axles, and related hardware.

Q: Are the part numbers in this manual current, or does it show superseded numbers too?

A: The manual shows the OEM numbers used when it was published and usually notes superseded Kubota part numbers where changes were made.

Bottom line: If your goal is to identify and order the right Kubota parts for an RA2069 VARIO rotary rake, this is the right manual; if you’re trying to learn how to repair or adjust the rake, keep looking for the service/WSM book instead.

Table of Contents:

• Main Frame
  • Frame Assembly
  • Hitch / Mounting Brackets
  • 3-Point Hitch Pins
• Working Components
  • Tines / Blades / Tools
  • Tine Carriers / Holders
  • Wear Plates
  • Shear Bolts (if equipped)
• Drive System
  • Drive Shaft & PTO Connection
  • Gear Box
  • Chains / Belts (if equipped)
  • Slip Clutch / Shear Pin Drive
• Hydraulic Components
  • Hydraulic Cylinders (if equipped)
  • Hoses & Fittings
  • Adjustment Mechanisms
• Wheels & Rollers
  • Gauge Wheels
  • Packer Rollers (if equipped)
  • Wheel Hardware
• Reference
  • Bolts, Nuts & Washers
  • Decals & Warning Labels
  • Numerical Part Number Index

Note: Topics above are typical for Kubota parts manuals of this equipment type. The actual manual may contain additional sections and detailed breakdowns.
