LeTourneau L2350 Parts Manual

On an L2350 that spends its life in mines or big quarries, everything is oversized and buried in dust, so guessing at parts is expensive. This parts manual is what I’d keep open while the loader is torn down, so every bolt-on item I pull off can be matched to the right illustration and part number. If, for example, you’re chasing an oil leak around the crankcase and end housing, this lets you trace each gasket, seal, and bracket you’ve removed and order exactly what you need to put it back together once, not twice.

Applications & Use Cases

• Match teardown parts from the engine area—crankcase, oil pan, mounts—to the correct part numbers before writing a parts list.
• Differentiate similar components (brackets, covers, breathers) so you don’t mix early/late or left/right pieces when reassembling.
• Verify hardware and small items like labels and auxiliary materials that often get missed but are needed to finish the job cleanly.
• Support troubleshooting by tracing related components in a system, helping you see what else should be inspected or replaced while you’re in there.
• Communicate with the parts department using the same reference images and numbering logic to avoid wrong shipments and downtime.

FAQ

Q: Can I use this manual on a tablet in the field?

A: Yes, it’s practical to zoom into the exploded views on a tablet so you can match parts right at the machine.

Q: Is it worth printing sections of this manual?

A: Many techs print the relevant assemblies before a big teardown so the pages can get greasy without risking the main file.

Safety Note

Always lock out, tag out, and properly support all components before inspecting or removing any parts identified from this manual.

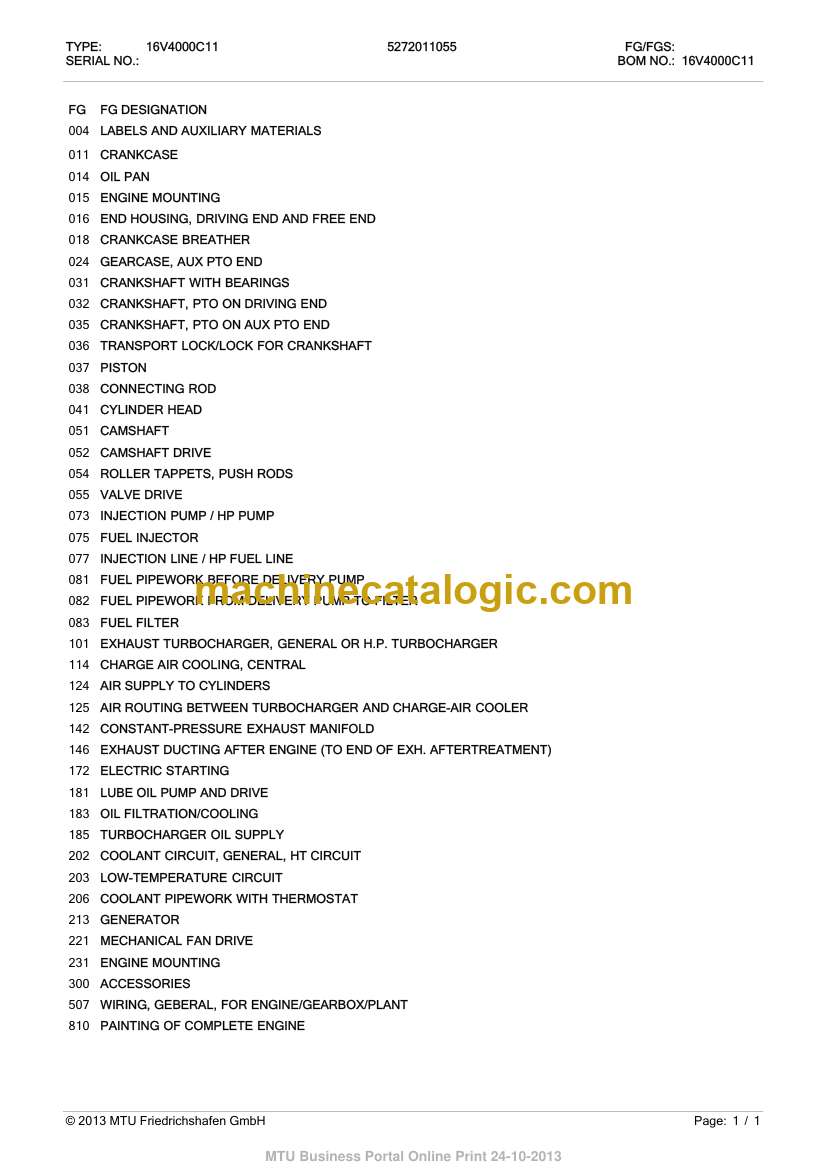

LeTourneau L2350 Index:

FG FG DESIGNATION
004 LABELS AND AUXILIARY MATERIALS
011 CRANKCASE
014 OIL PAN
015 ENGINE MOUNTING
016 END HOUSING, DRIVING END AND FREE END
018 CRANKCASE BREATHER
024 GEARCASE, AUX PTO END
031 CRANKSHAFT WITH BEARINGS
032 CRANKSHAFT, PTO ON DRIVING END
035 CRANKSHAFT, PTO ON AUX PTO END
036 TRANSPORT LOCK/LOCK FOR CRANKSHAFT
037 PISTON
038 CONNECTING ROD
041 CYLINDER HEAD
051 CAMSHAFT
052 CAMSHAFT DRIVE
054 ROLLER TAPPETS, PUSH RODS
055 VALVE DRIVE

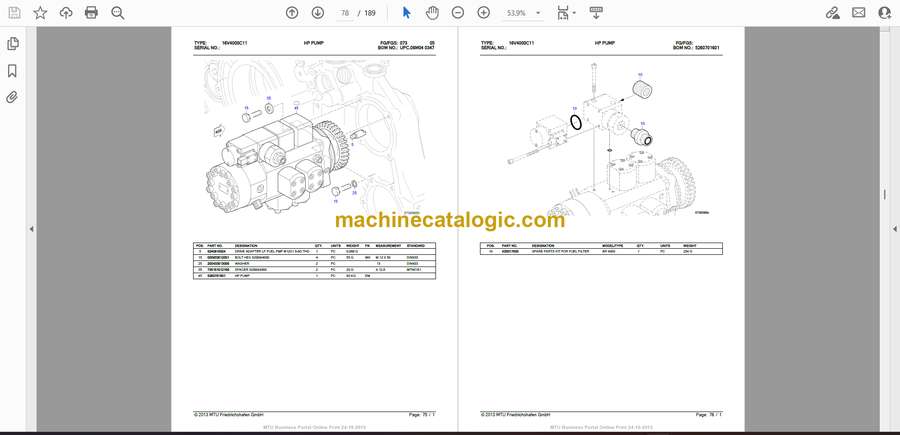

073 INJECTION PUMP / HP PUMP
075 FUEL INJECTOR
077 INJECTION LINE / HP FUEL LINE
081 FUEL PIPEWORK BEFORE DELIVERY PUMP
082 FUEL PIPEWORK FROM DELIVERY PUMP TO FILTER
083 FUEL FILTER
101 EXHAUST TURBOCHARGER, GENERAL OR H.P. TURBOCHARGER
114 CHARGE AIR COOLING, CENTRAL
124 AIR SUPPLY TO CYLINDERS
125 AIR ROUTING BETWEEN TURBOCHARGER AND CHARGE-AIR COOLER
142 CONSTANT-PRESSURE EXHAUST MANIFOLD
146 EXHAUST DUCTING AFTER ENGINE (TO END OF EXH. AFTERTREATMENT)
172 ELECTRIC STARTING
181 LUBE OIL PUMP AND DRIVE
183 OIL FILTRATION/COOLING
185 TURBOCHARGER OIL SUPPLY
202 COOLANT CIRCUIT, GENERAL, HT CIRCUIT
203 LOW-TEMPERATURE CIRCUIT
206 COOLANT PIPEWORK WITH THERMOSTAT
213 GENERATOR
221 MECHANICAL FAN DRIVE
231 ENGINE MOUNTING
300 ACCESSORIES
507 WIRING, GEBERAL, FOR ENGINE/GEARBOX/PLANT
810 PAINTING OF COMPLETE ENGINE
