Liebherr D 904 to D 926 Diesel Engine Service Manual Set

Cranes run on diesel engines like the Liebherr D904 to D926, and when one goes down the whole machine sits idle. A service manual is what a fleet mechanic or in-house technician opens when the engine is out of warranty and needs to be adjusted, repaired or rebuilt. It's also the document you want when a used machine arrives with no paperwork.

What this manual helps you do

• Adjust valves and check piston clearance using the procedures in the valve adjustment and check piston clearance sections.
• Rebuild the cylinder head, cylinder liner, camshaft and valve drive.
• Set the injection pump drive and adjust begin of delivery on the fuel system.
• Replace the lube oil pump, coolant pump, fan drive, starter or turbo charger.
• Follow the maintenance and inspection routines, and look up service fluids, operating temperatures and special tools before you start the job.

Who this is for

A rental fleet mechanic, an independent repair shop or a dealer technician working on Liebherr D904 to D926 engines. It suits anyone doing engine work in-house who wants the procedures in front of them at the bench.

FAQ

Q: What do I receive and how is it organised?

A: You get the set: 3 PDF files, 467 pages in total, in English and German. It holds Publication SHB (74 pages), Manual 2 (218 pages, the main manual) and Publication 8995116 (175 pages).

Q: Which engine does it fit?

A: The title reads Liebherr D904 to D926 Diesel Engine Service Manual. It's written for that engine family, including engine identification and direction of rotation.

Q: How does it fit my repair job?

A: A manual like this usually walks through removal, disassembly and assembly, adjustment and testing, so you can plan the job, order your tools and work through it step by step. The sections run from the engine illustrations through the cooling system, lubrication system and fuel system to the special tools.

Keep the set on file and your shop can take on D904 to D926 engine work without waiting on outside help.

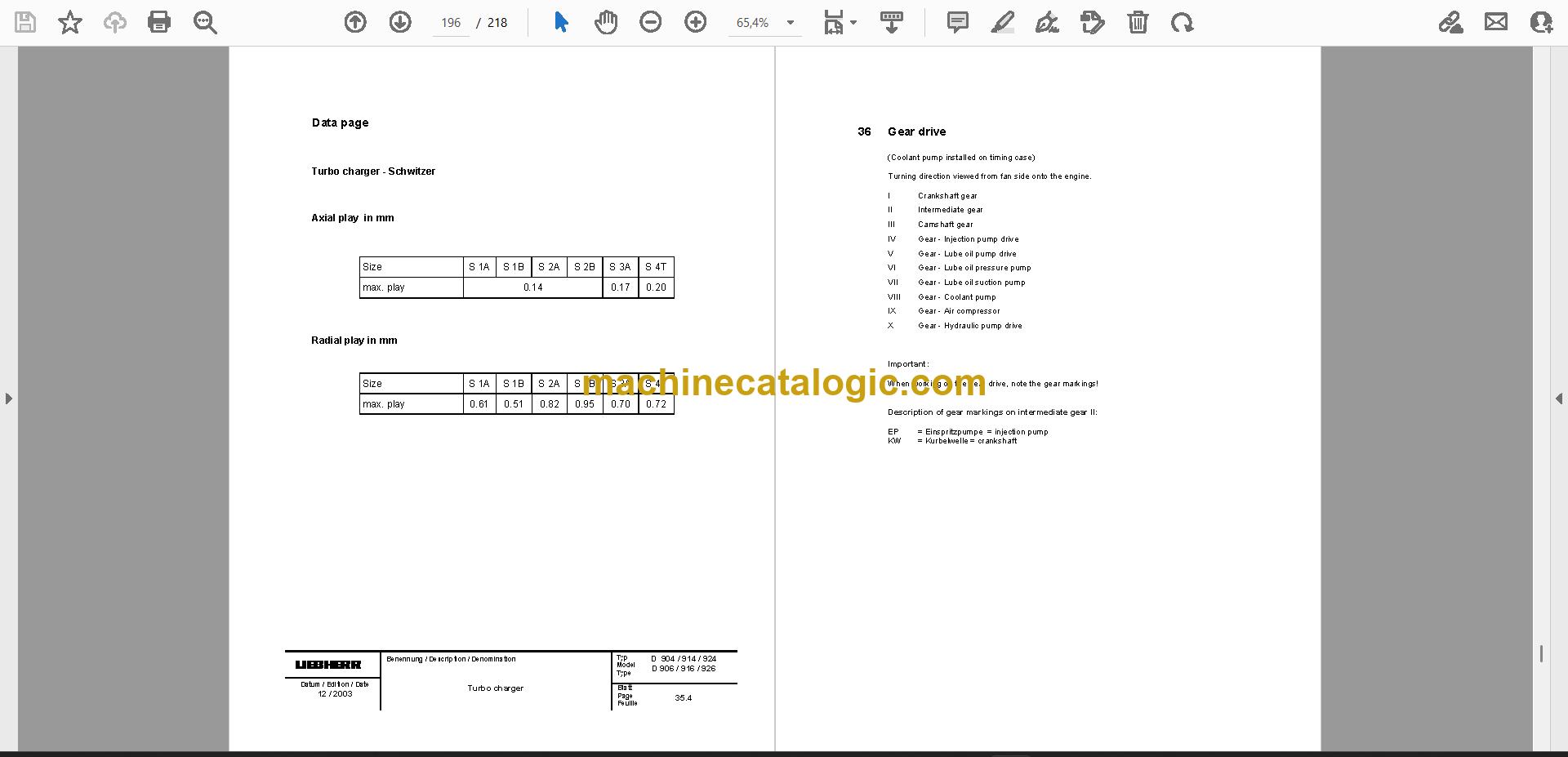

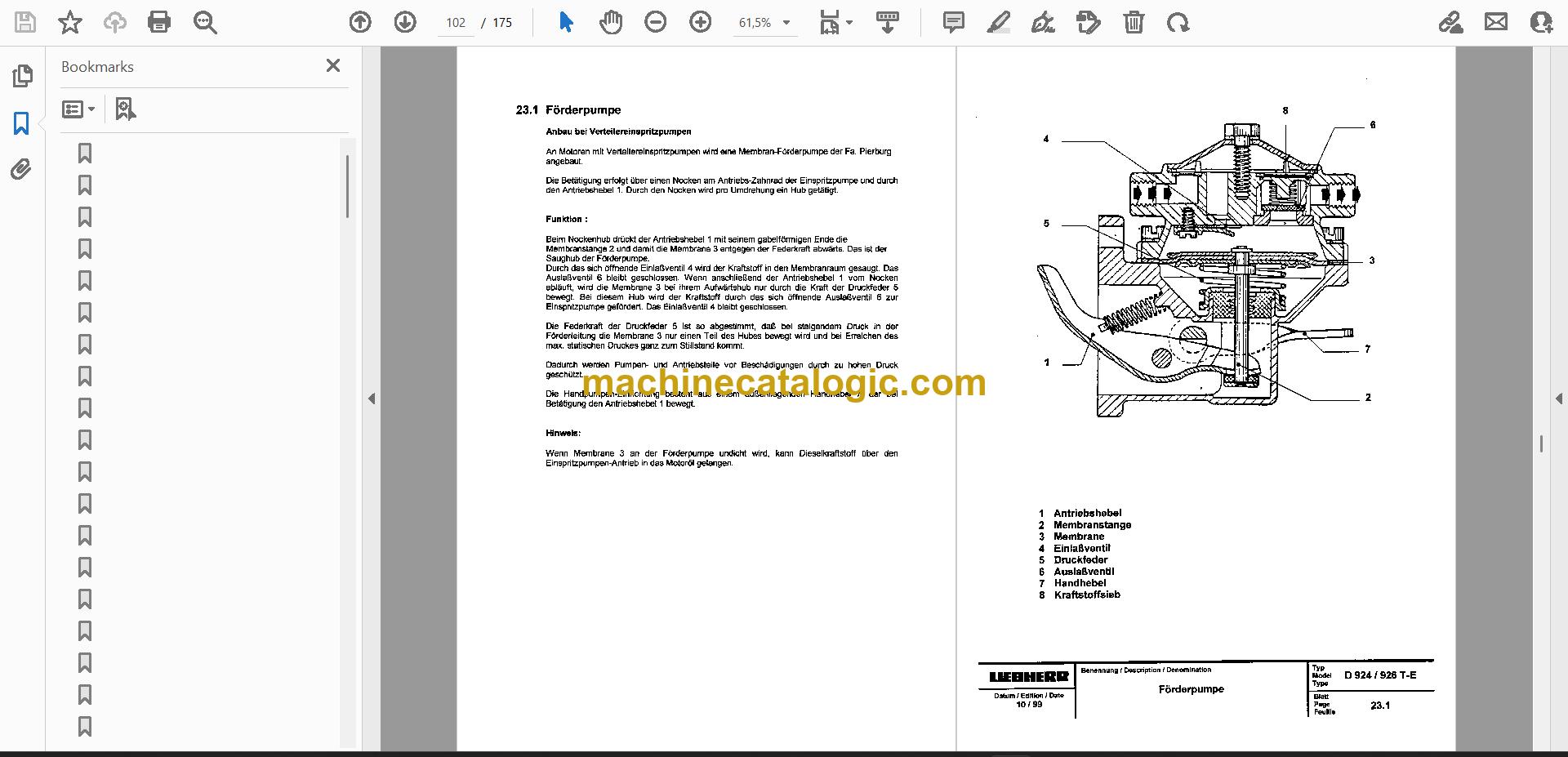

Click here to view the preview (PDF)
