The Liebherr LRT 1100-2.1 Rough Terrain Crane is a site crane that spends its life on uneven pads, oilfield roads, and construction mud, where downtime is expensive and parts runs are a pain. People reach for the Liebherr LRT 1100-2.1 Rough Terrain Crane Spare Parts Catalogue (SN 044848) when something’s bent, leaking, or missing and they need the exact Liebherr part, not a guess. This kind of book is what you use at the truck tailgate or parts counter to ID components, not to learn how to repair them. If you mainly need to match what’s in your hand to what Liebherr sells, you’re in the right place.
What this catalogue helps you do
- Identify the correct OEM part number from exploded views of the boom, hydraulics, cab, undercarriage, superstructure, and more.
- Locate where a specific hose, pin, seal, or bracket sits in the assembly so you don’t order the wrong piece.
- Look up quantity-per-machine for fasteners, seals, and wear parts so you show up to the job with everything you need.
- Cross-reference older or superseded numbers to the current Liebherr part numbers shown in the catalogue.
- Match a damaged or worn part in your hand to the illustrated item and verify the part number before ordering.
Who this is for
This is aimed at parts managers, dealer parts desks, field technicians, fleet mechanics, and independent crane shops who already know how they’re going to do the repair. If you need step‑by‑step repair procedures, torque specs, pressures, or troubleshooting, you want a service manual, not this spare parts catalogue.
FAQ
Q: Is this a searchable PDF with selectable text for part numbers?
A: Yes, it’s a digital parts catalogue you can search by text, so you can jump straight to specific part numbers or assemblies.
Q: Does it cover major groups like engine, hydraulics, boom, and superstructure for this crane?
A: Yes, parts catalogues for this model normally include exploded views and part lists for all major assemblies on the crane.
Q: Are superseded part numbers shown, or only current ones?
A: These catalogues usually show both the original and superseding Liebherr numbers so you can see what’s been updated.
Bottom line: If you need to identify and order correct Liebherr parts for an LRT 1100-2.1 in the SN 044848 range, this is what you want; if you’re chasing repair instructions or specs, keep looking for a service manual instead.

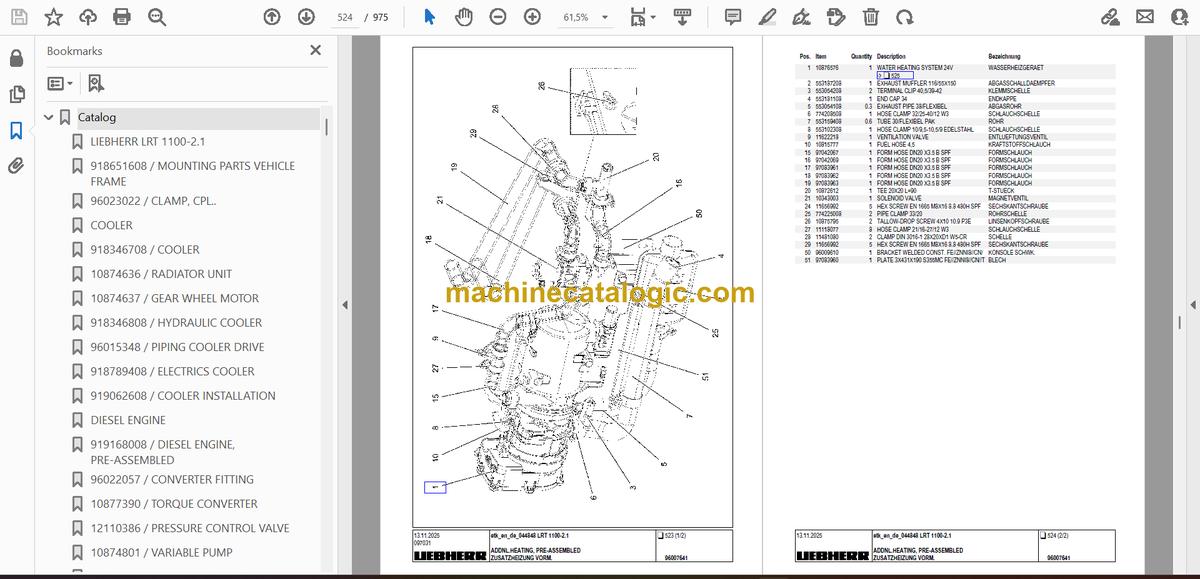

📘 Show Index
Table of Contents:
- Catalog
- LIEBHERR LRT 1100-2.1
- 918651608 / MOUNTING PARTS VEHICLE FRAME
- 96023022 / CLAMP, CPL..
- COOLER
- 918346708 / COOLER
- 10874636 / RADIATOR UNIT
- 10874637 / GEAR WHEEL MOTOR
- 918346808 / HYDRAULIC COOLER
- 96015348 / PIPING COOLER DRIVE
- 918789408 / ELECTRICS COOLER
- 919062608 / COOLER INSTALLATION
- DIESEL ENGINE
- 919168008 / DIESEL ENGINE, PRE-ASSEMBLED
- 96022057 / CONVERTER FITTING
- 10877390 / TORQUE CONVERTER
- 12110386 / PRESSURE CONTROL VALVE
- 10874801 / VARIABLE PUMP
- 7622495 / CONNECTING PLATE
- 10874842 / VARIABLE PUMP
- 10875219 / VARIABLE PUMP
- 10877713 / CONTROL VALVE
- 919168108 / DIESEL ENGINE PURCHASED PARTS
- 12101643 / DIESEL ENGINE
- 96050061 / TURBOCHARGER
- 12104195 / REPAIR KIT TURBO CHARGER
- 96050058 / WATER PUMP
- 96050054 / GENERATOR
- 96050055 / BELT TIGHTENER
- 96050057 / OIL SUMP
- 12104179 / FUEL PUMP
- 96082086 / MOTOR CONTROL DEVICE
- 12104198 / RK INJECTOR
- 918323008 / ELECTRIC DIESEL ENGINE
- 918870508 / HYDRAULIC UNIT
- 96025626 / PIPING PUMP ATTACHMENT
- 510668108 / PRESSURE FILTER
- 570584808 / FILTER ELEMENT
- 10041815 / SEAL KIT
- 474907808 / SAE FLANGE CONNECTION
- 918322908 / DIESEL ENGINE INSTALLATION
- 96018921 / MOTOR BEARING INSTALLATION SET
- 96018922 / MOTOR BEARING INSTALLATION SET
- SWITCHGEAR
- 918983208 / SWITCHGEAR
- 10874302 / SWITCHGEAR
- 96019934 / INPUT SHAFT
- 96004674 / FLANGE
- 96004675 / GEARBOX HOUSING
- 96019933 / TERMINAL HOUSING
- 96004676 / SPEED SENSOR ASSEMBLY
- 96004678 / SUCTION PIPE
- 96004679 / DRIVE SHAFT
- 96004680 / DRIVE SHAFT
- 96004681 / DRIVE SHAFT
- 96004682 / GEAR WHEEL
- 96004683 / OUTPUT SHAFT
- 96004684 / REGULATING VALVE-
- 12100993 / REGULATING VALVE-
- 12100995 / SOLENOID VALVE
- 96004685 / VALVE UNIT
- 96004687 / RELEASE ASSEMBLY
- 12101034 / SOLENOID VALVE
- 96004686 / GEARBOX
- 96004688 / POWER TAKE-OFF
- 96004689 / FLANGE
- 10874881 / GEAR PUMP
- 919028208 / MANUAL GEARBOX LINES
- 918323208 / HYDRAULIC SWITCHGEAR
- 96015689 / HYDRAULIC SWITCHGEAR
- 918324608 / MANUAL GEARBOX INSTALLATION
- 1.AXLE
- 919379408 / 1.AXLE
- 12101579 / DRIVEN STEERING AXLE
- 12101824 / BRAKE
- 12101825 / BRAKE
- 10876692 / PLANETARY GEARBOX
- 12105971 / FINAL DRIVE
- 11485494 / BRAKE
- 10874677 / STEERING CYLINDER
- 918258908 / HYDRAULICS
- 96015159 / PIPING 1 AXLE
- 919397608 / 1 AXLE INSTALLATION
- 2.AXLE
- 919379508 / 2.AXLE
- 12101580 / DRIVEN STEERING AXLE
- 12105892 / FINAL DRIVE
- 10874693 / SUSPENSION CYLINDER
- 918260608 / HYDRAULICS
- 96015160 / PIPING 2 AXLE
- 471030708 / FITTING
- 918346408 / 2 AXLE INSTALLATION
- 918766808 / TYRES
- 96019682 / TIRE CPL.
- 10877694 / DISC WHEEL
- 919462208 / DRIVE SHAFT FITTING
- BALLAST EXTENSION RAM
- 918342308 / BALLAST EXTENSION RAM
- 12429384 / BALLAST EXTENSION RAM
- 918342408 / ELECTRIC BALLASTING
- 10875197 / INDUCTIVE SENSOR
- 918358608 / HYDRAULIC BALLASTING
- 96016153 / TUBING BALLASTING RAM
- 511302208 / DIRECTIONAL CONTROL VALVE
- 918358708 / BALLASTING RAM
- SUPPORT STRUCTURE
- 918260808 / SUPPORT MECHANICS
- 919313708 / CYLINDER SUPPORT
- 12908624 / SUPPORT CYLINDER
- 10874589 / EXTENSION RAM
- 918322008 / ELEC.F.WORKING PLATTFORM
- 10874494 / ROPE LENGTH INDICATOR
- 96011674 / LIMIT SWITCH ASSY. COMP.
- 918322108 / HYDRAULIC SUPPORT
- 96015119 / PIPING SLIDING BOOM
- 918845808 / SUPPORT PLATES ADD-ON
- 96022224 / SUPPORT PLATE COMPL.
- 918346508 / INSTALLATION SUPPORT
- 91001240 / UREA PLANT
- 12106208 / UREA CONTAINER
- 12108267 / STRAINER FILTER
- 12100202 / PUMP
- 918324008 / STOWAGE BOX
- 96013004 / STORAGE BOX
- 96013006 / DOOR CPL.
- BATTERY BOX
- 919168208 / BATTERY BOX
- 96013164 / COVER PRE-ASSY.
- 96013748 / DOOR CPL.
- 918846708 / ELECTRIC FOR BATTERY BOX
- 91003246 / ELECTRIC CONTROL CABINET
- 96055248 / WIRES COMPL. INSTRUMENTS
- 96015909 / ASSEMBLY PARTS MOUNTING PANEL
- 968095808 / PRE-ASSEMBLY MOUNTING UNIT
- 963398008 / PREMOUNT.AXIAL FLOW FAN UPPER
- 96011782 / GROUND RAIL
- 922648308 / TERMINAL BOARD PRE-ASS.
- 96069051 / E/A-MODULE
- 918566208 / CONTROL DESK
- 918348008 / BATTERY CASE MOUNTING
- 919169708 / BATTERY
- 919482008 / FUEL FEED
- 918324408 / FUEL CONTAINER
- 96016649 / FUEL TANK, PRE-ASSEMBLED
- OIL TANK
- 918324508 / OIL TANK
- 10871354 / RETURN FILTER
- 11068050 / FILTER ELEMENT
- 11600977 / COVER
- 514615408 / O-RING
- 11341871 / SEAL KIT RETURN FILTER
- 10875745 / SHUT OFF DEVICE
- 918346608 / OIL TANK OIL LEVEL INDICATOR
- 918544608 / HYDRAULIC TANK
- 96015885 / PIPING OIL TANK
- 918455308 / OIL RESERVOIR, EXTENSION
- 919168608 / EXHAUST SYSTEM
- 96039581 / EXHAUST SYSTEM PRE-ASSEMBLED
- 12100960 / EXHAUST AFTERTREATMENT SYSTEM
- 96043571 / COVER HOOD
- 918325008 / AIR FILTER UNIT
- 10875282 / AIR FILTER
- 10875284 / FILTER ELEMENT
- 10875283 / SECONDARY ELEMENT
- (Untitled)
- 918340908 / TIRE COVER PANELLING
- 96021870 / COVER COMPL.
- 918845908 / SUPP TYRE COVER WITH BALLAST
- 96013203 / HANDRAIL CPL.
- 918846308 / SUPP TYRE COVER WO AUX HEATER
- 918846408 / TYRE COVER ATTACHMENT
- 918328808 / ENGINE COVERING
- 919817808 / ELECTRICAL SYS UNDERCARRIAGE
- 96055243 / CABLE LIST UNDERCARRIAGE
- 96055242 / WIRING HARNESS
- 96042680 / WIRING HARNESS
- 968693208 / MOUNTING MATERIAL
- 96055750 / ANTENNA CPL.
- 96013540 / ELECTRIC ADD-ON PARTS
- 918336108 / ROTARY FEED THROUGH
- 96011849 / ROTOR AND SLIPRING ASSEMBLY
- 10875424 / SLIP RING TRANSMITTER
- 96015529 / PIPING ROTARY UNION
- 919169308 / LIGHTING
- 607150808 / TAIL LAMP
- 607150708 / TAIL LAMP
- 918336408 / UNDERCARRIAGE HYDRAULICS
- 96025625 / TUBING HYDRAULICS
- 96025718 / FASTENING HYDRAULICS
- 96025687 / HOSE LINES HYDRAULIC
- 96025711 / PIPELINES HYDRAULIC
- 10874858 / CONTROL BLOCK
- 10874854 / CONTROL BLOCK
- 10877095 / SLIDE VALVE BLOCK
- 12104730 / DIRECTIONAL CONTROL VALVE
- 12104729 / DIRECTIONAL CONTROL VALVE
- 10877282 / CONTROL BLOCK
- 10289041 / BALL VALVE
- 918336608 / SWITCHBOX
- 96009789 / SWITCH BOX CPL.
- 918357408 / AIR CONDITIONING UNDERCARRIAGE
- 918328408 / TOOLS AND ACCESSORIES
- 928569808 / MAIN TOOLS
- 928620108 / ACCESSORIES
- 918328508 / DISPATCH ASSY.MECH.PARTS
- 918328608 / MIRROR MOUNT
- 919818008 / SIGNS
- 91003810 / ADDITIONAL LABEL.FACTORY DATA
- 919141008 / TYRE PRESSURE SIGNAGE
- 919018008 / CONSPICUOUS MARKING
- 916959808 / PERSONAL PROTECTION EQUIPMENT
- 918852708 / LADDER ATTACHMENT
- ROT. PLATFORM REAR POS ASS
- 918340708 / ASSEMBLY PARTS F.SLEWING PLTF.
- 918341108 / BALL SLEWING RING
- 90212662 / BALL SLEWING RING
- 919692208 / SLEWING GEAR
- 12101095 / SWING GEAR
- 12108775 / MULTI-DISK BRAKE
- 571653008 / POWER TAKE-OFF
- 510229408 / HYDRO MOTOR
- 570109008 / DRIVING GEAR
- 570109508 / DRIVING GEAR
- 918586008 / CENTRAL LUBRICAT.SYS.SLEW.RING
- LUFFING CYLINDER
- 919010708 / LUFFING CYLINDER
- 10878167 / LUFFING CYLINDER
- 918477008 / HYDRAULICS LUFFING CYLINDER
- 96014843 / TUBING LUFFING CYLINDER
- 918464308 / ROCKER CYLINDER ATTACHMENT
- 918531708 / ROTATING PLATFORM LOCK
- AUXILIARY HOISTING GEAR
- 919959008 / AUXILIARY HOISTING GEAR
- 13570718 / COMPACT ROPE WINCH
- 90214105 / ROPE DRUM
- 90214114 / PLANETARY GEARBOX
- 861901208 / GEAR OIL
- 970331501 / BRAKE DISC SET
- 12550410 / OIL-GAUGING INSTRUMENT
- 13572798 / WINCH FRAME
- 10875156 / HYDRO MOTOR
- 91003569 / ELECTR. F.AUXILIARY HOIST.GEAR
- 96071406 / LEAD
- 91003458 / HYDR.AUXILIARY HOISTING
- 96069905 / PIPEWORK ADD.HYDR.WINCH 2
- 919482408 / ROPE WITH ACCESSORIES 2
- 91000298 / SIGNS
- 918356208 / AUXILIARY LIFT ATTACHMENT
- MAIN HOIST GEAR
- 918341508 / MAIN HOIST GEAR
- 90212748 / COMPACT ROPE WINCH
- 919821508 / ELECTRIC MAIN LIFTING GEAR
- 919445908 / HYDRAULIC MAIN LIFTING GEAR
- 96069896 / PIPEWORK ADD.HYDR.WINCH 1
- 918341608 / ROPE WITH ACCESSORIES 1
- 918535108 / MAIN LIFTING GEAR ATTACHMENT
- CRANE DRIVER'S CABIN
- 919926308 / CRANE OPERATOR CABIN PREASS 2
- 918385408 / BEARING INSTALLATION
- 96010067 / OPERATING ELEMENT INSTALLATION
- 96012374 / TREAD IN FRONT
- 96012377 / SIDE STEP
- 96008819 / TREAD
- 96010078 / RELING
- 96057059 / PEDAL CANTILEVER INSTALLATION
- 968462608 / INSTALLATION SWITCH CAB. COVER
- 96010081 / CABLE INLET
- 96057060 / STEERING WHEEL ATTACHMENT
- 96057063 / STEERING WHEEL ADJUSTMENT UNIT
- 96001337 / BREAK PEDAL CPL.
- 919947708 / CRANE OPERATOR CABIN PREASS 1
- 96057552 / INTERNAL PANELLING INSTALLATIO
- 96012067 / STORAGE BOX CPL.
- 11182242 / FILTER
- 96010048 / WINDOW ASSEMBLY
- 96010086 / FRONT WINDOW CPL.
- 96010049 / AIR DUCT
- 96010050 / WIPERS INSTALLATION
- 966408908 / WATER CONTAINER CPL
- 919948008 / CRANE DRIVER CABIN, UNFINISHED
- 919951408 / CRANE DRIVER'S CABIN PUR.PARTS
- 918449308 / SLIDING DOOR INSTALLATION
- 966230408 / CLOSING DEVICE
- 966230508 / GUIDE PRE-ASS.
- 966253908 / WAGON
- 918348508 / HEATING CABIN
- 96012617 / HEATING, PRE-ASSEMBLED
- 11083498 / AIR CONDITIONING UNIT
- 11083438 / FILTER
- 919947908 / OPERATOR'S CABIN SEAT HEATING
- 10877138 / OPERATORS SEAT
- 96047839 / ARM REST LEFT
- 96047873 / ARM REST RIGHT
- 916049908 / MIRROR ATTACHM.IN CRANE CABIN
- 91003598 / EL.INSTRUMENTS F.CRANE DRIV.CA
- 96055730 / CABLE LIST DRIVER'S CABIN
- 96055731 / WIRING HARNESS
- 96009690 / WIRING HARNESS
- 96009691 / WIRING HARNESS
- 96009692 / WIRING HARNESS
- 96028048 / WIRING HARNESS
- 96070753 / ELECTRIC ADD-ON PARTS CABIN
- 96030724 / INSTRUMENT CLUSTER ELECTRICS
- 967260908 / EMERGENCY CUT-OFF CRANE DRIVER
- 96016211 / SWITCH
- 969776708 / SCREENING PRE-ASSEMBLY
- 10343693 / JOYSTICK
- 10340105 / WARNING LIGHT
- 966979108 / SOCKET
- 919948208 / HYDRAULICS CABIN
- 96057753 / STEERING PIPEWORK
- 96057798 / HOSE LINES CABIN
- 918766408 / CONTROLS AND FITTINGS
- 91003570 / SWITCH CABINET CRANE OP CABIN
- 96071599 / BASE ASSEMBLY CPL.
- 96071600 / CABLES, BASIC CONSTRUCTION CPL
- 96015460 / BASE ASSEMBLY
- 96015763 / CONNECTION PLAN
- 96015497 / TERMINAL STRIP
- 96015461 / PRE-ASSEMBLY MOUNTING UNIT
- 96015462 / RESISTANCE MODULE PRE-ASS.
- 918340108 / CAB AIR-CONDITIONING SYSTEM
- 916166208 / CAR RADIO
- 919392208 / LAP BELT INSTALLATION
- 919948108 / CRANE DRIVER CAB ADDITION
- 96013509 / BEARING BLOC CPL.
- 10875230 / TILT CYLINDER
- 918342108 / ADDITIONAL HEATING CABINE
- 96007641 / ADDNL.HEATING, PRE-ASSEMBLED
- 10876576 / WATER HEATING SYSTEM
- 919234208 / TURNTABLE PANELLING
- 96034471 / SLEWING PLATFORM PANELLING RIG
- 96034349 / FLAP PRE-ASS.
- 918342008 / FALL PROTECTION
- 918359308 / ADDITIONAL HEATING
- 968670608 / EXPANSION TANK PRE-ASS.
- 968407008 / EXPANSION TANK PRE-ASS.
- 11110051 / DOSING PUMP
- 553174008 / FUEL FILTER
- 96018483 / EXHAUST PIPE PRE-ASS.
- 918342808 / CENT. LUBRIC. SYSTEM SUPERST.
- 10327066 / ELECTRIC PUMP
- 11002918 / DISTRIBUTION BLOCK
- 774375108 / PASSAGE NIPPLE BLOCK
- 918339008 / FUEL TANK ATTACHMENT
- 918998908 / SIGN AUXILIARY HEATING
- 918342708 / MIRROR ATTACHM.AT SLEW.PLATFOR
- 918359208 / AIR CONDITION ROTATING DECK
- 919169408 / MIRROR ATTACHM. AT HOIST GEAR
- 91003568 / ELECTR. SYSTEM F.SLEWING PLATF
- 96071404 / CABLE LIST SLEWING PLATFORM
- 96071405 / WIRING HARNESS
- 966563208 / LIMIT SWITCH
- 96028878 / ELECTR. FOR WORK AREA LIGHT
- 96016044 / SLEWING RING ENCODER
- 96044104 / CAM MON WINCH/REVOL DECK REAR
- 96016399 / EL.SUPERSTRUCTURE INTERLOCK
- 96016398 / ELECTRIC BALLASTING
- 96071520 / ELECTRIC ADD-ON PARTS
- 96018891 / SENSOR PRE-ASS.
- 96018892 / GUIDE PRE-ASS.
- 96019621 / SENSOR PRE-ASS.
- 96044662 / CAMERA MOUNTING SUPERSTR. REAR
- 91005796 / SLEWING PLATFORM HYDRAULICS
- 96078324 / TUBING SLEWING PLATFORM
- 96016509 / FASTENING PIECES HYDRAULICS
- 96075557 / HOSE LINES SLEWING PLATFORM
- 96015146 / PIPELINES SLEW PLATFORM
- 96057497 / MECHANICAL AUXILIARIES
- 96015979 / CONSOLE PRE-ASS.
- 12110480 / CONTROL BLOCK
- 10874850 / CONTROL BLOCK
- 10878338 / DIRECTIONAL CONTROL VALVE
- 10874851 / CONTROL BLOCK
- 12103489 / CONTROL BLOCK
- 10875155 / CONTROL BLOCK
- 10218310 / LOAD HOLDING VALVE
- 918347908 / ADDITIONAL HYDRAULICS
- 96014923 / PIPING PRE-HEATING
- OIL COOLER
- 918343508 / OIL COOLER
- 96008450 / OIL COOLER, PRE-ASSEMBLED
- 10334215 / OIL AIR COOLER
- 918460008 / OIL COOLER INSTALLATION
- 967543008 / REAR SHUTTER
- 918741708 / BLANKING PLUG
- 96019002 / TUBING
- 918741808 / BLANKING PLUG
- 96019012 / TUBING
- 918586108 / FIXING PARTS SLEWING RING
- 918605008 / ATTACHMENT PARTS COMPLETE UNIT
- 96016745 / LIMIT SWITCH
- 773939808 / POUCH SOCKET
- 967361508 / REPAIR KIT
- 96013575 / HOIST LIM.SWITCH PLUMMET CPL
- 96052904 / HOISTING LIMIT SWITCH WEIGHT
- 919872208 / COUNTERWEIGHT
- 96056343 / COUNTERWEIGHT CPL.
- 919908908 / COUNTERWEIGHT ADD-ON
- 919895608 / DISPATCH ASSY.MECH.PARTS
- 962617308 / HOSE GUIDE PRE-ASS.
- 96010020 / GREASE SPRAY SYSTEM
- 10876885 / GREASE SPRAYER
- 915731908 / EL.COMP. DISPATCH ASSEMBLY
- BOOM,JIB
- 919895208 / TELESCOPIC BOOM CPL.
- 919897908 / PIVOT SECTION, PRE-ASSEMBLED
- 96011513 / LIFTING ROPE GUIDE PREASSEMBLY
- 919898008 / TELESCOPIC SECTION 1 PRE-ASSEM
- 919898108 / TELESCOPIC SECT.2 PRE-ASSEMBL
- 919898208 / TELESCOPIC SECT.3 PRE-ASSEMB
- 919898308 / TELESCOPIC SECT.IV PRE-ASSEMBL
- 929529108 / ROPE PULLEY CPL.
- 919898408 / MECHANICAL EXTENSION SYSTEM
- 10878966 / TELESCOPIC CYLINDER
- 12101541 / CYLINDER HEAD CPL.
- 96056437 / ADD-ON PARTS CYLINDER
- 919492708 / ELECTR. SYSTEM F. BOOM
- 96056632 / ELECTRIC F.BASE SECTION
- 10874624 / ROPE LENGTH ANGLE SENSOR
- 12102801 / ROPE LENGTH INDICATOR
- 96056635 / LEAD
- 96063103 / LEAD
- 96070037 / ADD-ON PARTS BASE SECTION
- 96056633 / ELECTR. FOR HEAD SECTION
- 96055642 / TERMINAL BOX CPL.
- 96055643 / LEAD
- 96056636 / ADD-ON JIB COMPONENTS
- 96056634 / ELECTR. F.EXTENDING MECHANISM
- 96056637 / LEAD
- 918344608 / HYDR.F.TELESCOPIC BOOM
- 96014861 / TUBING
- 10874860 / CONTROL BLOCK
- 918345008 / EL.2 HOISTING LIMIT SWITCH
- 96011796 / ACCESSORIES F.ROTATORY PUMP
- 919895108 / WORK AREA LIGHT ON THE TELE.
- 96069035 / MECH.AUXILIARIES FOR LIGHTING
- 96059381 / WIRING HARNESS
- 10872003 / WORK LIGHT
- 918349908 / ADD-ON PARTS
- 918460908 / HOOK BLOCK
- 919821208 / CARRIER, MEAS. & WARN. DEVICE
- 96056270 / ELECTRIC MEASURING & WARN DEV
- 96055234 / WIRING HARNESS
- 11482252 / WIND VELOCITY TRANSMITTER
- 96056271 / MECH MEAS AND WARNING DEVICE
- 96056553 / LOCATION FIXTURE PRE-ASS.
- 96056554 / WIND WARNING PREASSEMBLED
- 91003812 / PLATING
- Numerical index
- Alphabetical index (EN)
- Alphabetical index (DE)
Liebherr Crane
