The Liebherr LTM 1060-2 Mobile Crane spends its life lifting heavy loads on tight sites where downtime gets expensive fast. When something electrical or hydraulic acts up, the first person reaching for the BMK is usually the tech with a multimeter in one hand and a laptop or tablet in the other. Component identification matters because if you can’t quickly match “K15” or “V23” from the diagram to the real hardware on the machine, you’re burning daylight instead of fixing the fault. The Technical Information & BMK Components Manual for Liebherr LTM 1060-2 Mobile Crane provides component identification diagrams, reference designators, and visual outlines used by technicians cross-referencing wiring or hydraulic schematics to physical parts on the crane.
What this manual helps you do
- Identify where each major component sits on the carrier and superstructure relative to the crane layout.
- Locate physical parts that match schematic tags like E…, K…, V…, X… on the LTM 1060-2.
- Trace wiring or hydraulic references from Liebherr diagrams to their actual mounting points on the crane.
- Cross-reference component IDs with other Liebherr documents when you’re chasing a fault code or signal path.
- Look up what Liebherr calls a component so you can talk the same language as the wiring diagrams and service info.
Who this is for
This BMK / component identification manual is aimed at workshop technicians, field service techs, electrical diagnostic engineers, fleet mechanics, and training instructors. If you’re after repair steps, torque specs, or part numbers, you need the service manual and parts catalogue instead.
FAQ
Q: Are the diagrams readable and searchable as a PDF?
A: Yes, this is supplied as a clear, zoomable PDF that you can search on a laptop or tablet on site.
Q: Does it cover both the carrier and the superstructure for SN 057460?
A: Yes, this BMK manual combines carrier and superstructure component layouts for the LTM 1060-2 around serial number 057460.
Q: Does it work together with wiring diagrams and parts catalogues?
A: Yes, these BMK documents are meant to sit beside Liebherr wiring, hydraulic, parts, and service manuals so you can match reference IDs to real components.
Bottom line: if you need to find and name components on a Liebherr LTM 1060-2, this is the right manual; if you want how-to repair steps or part numbers, it’s not.
📘 Show Index
Table of Contents:
Carrier — Table of Contents
- BMK components CARRIER
- CONTENTS:
- BMK-Tabelle (-A bis -E3):
- BMK-Tabelle (-E3U bis -E76):
- BMK-Tabelle (-E77 bis -MSP10):
- BMK-Tabelle (-MSP11 bis -S146):
- BMK-Tabelle (-S148 bis -X103):
- BMK-Tabelle (-X104 bis -X622):
- BMK-Tabelle (-X623 bis -XM103):
- BMK-Tabelle (-Y bis -Y872):

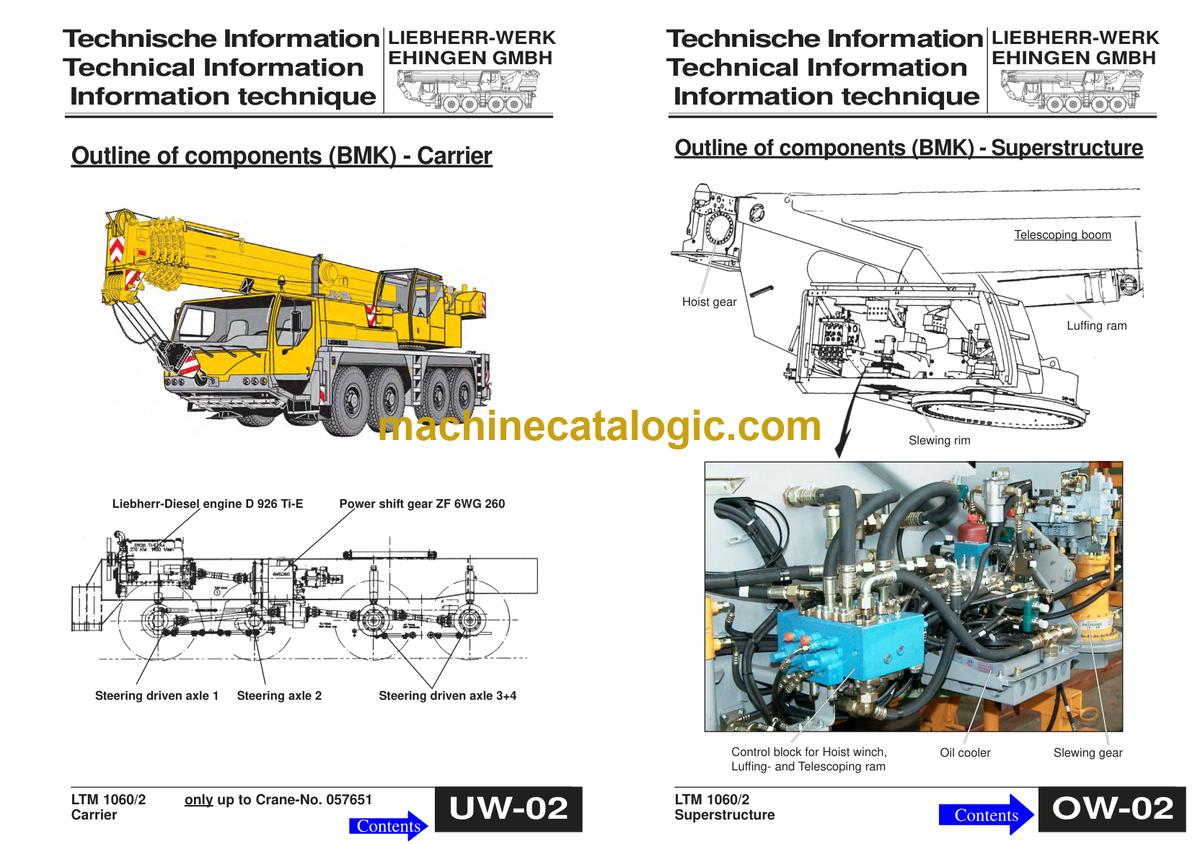

- Outline of components:
- Carrier:

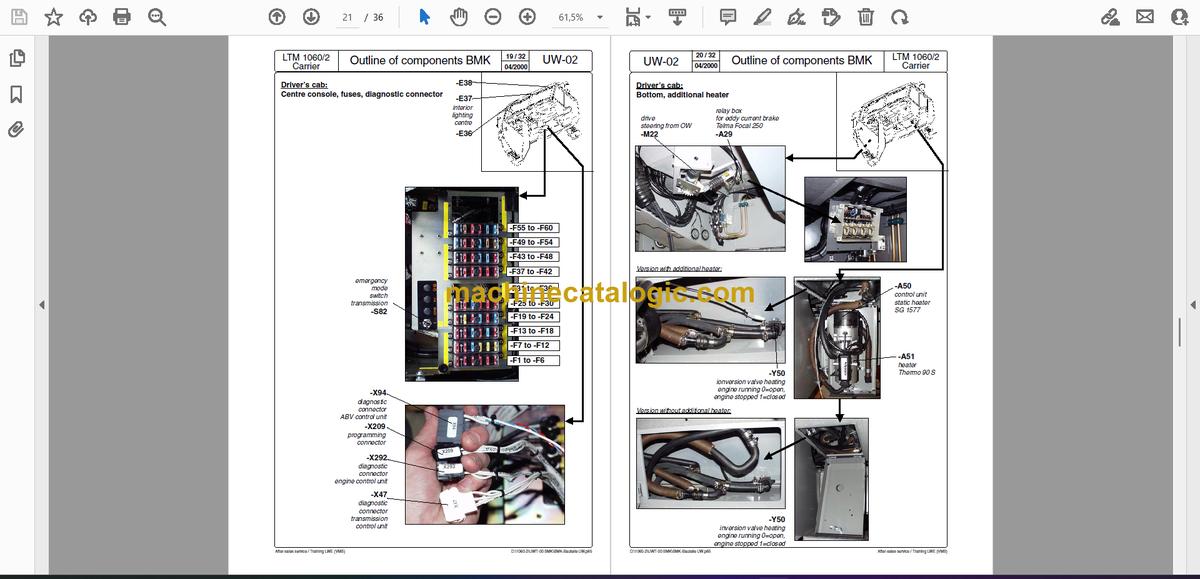

- Front view, lighting
- Rear view, lighting
- View from the right, lighting and outrigger control panels
- View from the left, lighting and outrigger control panels
- Driver’s cab:
- Control elements
- Doors and mirrors
- Swinging up the instrument board
- Centre console, batteries
- Wind-screen washing device, heater
- Centre console, components and modules
- Centre console, fuses, diagnostic connector
- Bottom, additional heater
- Pneumatic system
- Drive:
- Diesel engine D 926 TI-E A4
- Intake air-flow
- Cooling system:
- Rotary slip-ring unit:
- Autom. transmission ZF, 6WG-260:
- View from the left
- View from the right
- Cardan shafts, transv. differential locks, Telma:
- Suspension:
- Outriggers and supporting rams, rear axle steering:
- Pneumatic valves, main control block:
- Index
- Index CARRIER
- -A 8
- -A 9
- -A10
- -A11
- -A12
- -A13
- -A14
- -A17
- -A23
- -A24
- -A26
- -A29
- -A31
- -A33
- -A50
- -A51
- -A64
- -A73
- -A74
- -A75
- -A90
- -B 2
- -B 5
- -B 6
- -B 7
- -B 8
- -B 9
- -B10
- -B15
- -B19
- -B31
- -B32
- -B33
- -B34
- -B35
- -B36
- -B37
- -B38
- -E 1
- -E 2
- -E 3
- -E 4
- -E 5
- -E 6
- -E 9
- -E10
- -E11
- -E13
- -E14
- -E15
- -E16
- -E17
- -E18
- -E19
- -E20
- -E21
- -E24
- -E25
- -E27
- -E28
- -E29
- -E30
- -E31
- -E32
- -E33
- -E36
- -E37
- -E38
- -E39
- -E40
- -E41
- -E42
- -E43
- -E44
- -E45
- -E46
- -E51
- -E52
- -E57
- -E58
- -E76
- -E77
- -E78
- -E79
- -E91
- -E92
- -F 1 to -F6
- -F 7 to -F12
- -F13 to -F18
- -F19 to -F24
- -F25 to -F30
- -F31 to -F36
- -F37 to -F42
- -F43 to -F48
- -F49 to -F54
- -F55 to -F60
- -F79
- -F80
- -G1
- -G2
- -G3
- -G4
- -H101
- -H102
- -K51
- -L1
- -M 1
- -M 2
- -M 4
- -M10
- -M11
- -M12
- -M19
- -M20
- -M21
- -M22
- -M23
- -M24
- -M25
- -M26
- -N1
- -P11
- -P14
- -R 9
- -R11
- -R14
- -R18
- -R22
- -R25
- -R26
- -R38
- -S17
- -S19
- -S65
- -S66
- -S69
- -S82
- -S103
- -S104
- -S105
- -S106
- -S110
- -S114
- -S116
- -S118
- -S119
- -S121
- -S122
- -S124
- -S131
- -S134
- -S135
- -S137
- -S139
- -S142
- -S144
- -S146
- -S148
- -S151
- -S160
- -S199
- -S313
- -S354
- -X47
- -X49
- -X50.1-6
- -X81
- -X94
- -X102
- -X207
- -X209
- -X277
- -X278
- -X279
- -X280
- -X281
- -X283
- -X284
- -X292
- -X295
- -Y 1
- -Y 2A
- -Y 2B
- -Y 3
- -Y 4
- -Y 4 (=F,+F3)
- -Y 5
- -Y 7
- -Y 8
- -Y 9a
- -Y 9b
- -Y10
- -Y11
- -Y12
- -Y13
- -Y16
- -Y17
- -Y18
- -Y19
- -Y20
- -Y21
- -Y22a
- -Y22b
- -Y24
- -Y26a
- -Y26b
- -Y27a
- -Y27b
- -Y28a
- -Y28b
- -Y29a
- -Y29b
- -Y30a
- -Y30b
- -Y31a
- -Y31b
- -Y32a
- -Y32b
- -Y33a
- -Y33b
- -Y34
- -Y35
- -Y48
- -Y50
- -Y63a
- -Y63b
- -Y105
- -Y148
Superstructure — Table of Contents
- BMK components SUPERSTRUCTURE
- CONTENTS:
- BMK-Table (-A to -H614):
- BMK-Table (-H627 to -N1):
- BMK-Table (-N2 to -S622):
- BMK-Table (-S626 to -X32):
- BMK-Table (-X33 to -X204):
- BMK-Table (-X205 to -XM5):
- BMK-Table (-XM6 to -Y142):
- Outline of components:

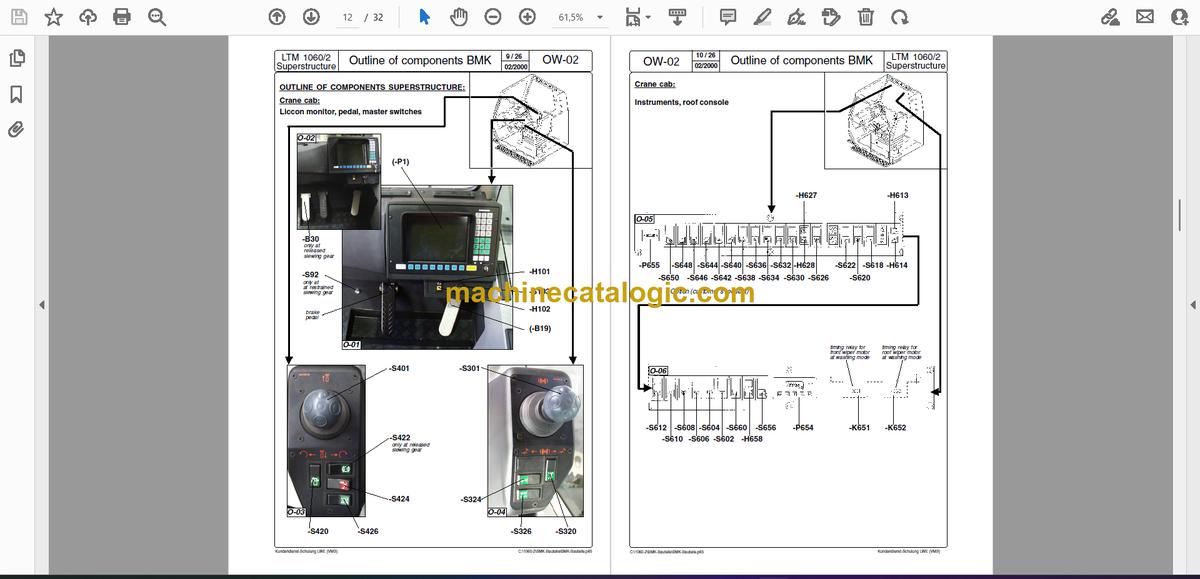

- Crane cab:
