Out in scrap yards, ports, and log yards, this 360X2 rubber-tired material handler spends its life creeping, grabbing, and swinging under load. This service manual is what I’d pull when I need to trace a drive issue or sort out why the machine won’t move right after a hard day in rough ground. For example, if the handler starts hesitating when you shift or feels weak on travel, this book walks you through a logical path to isolate whether it’s in the transmission, the hydrostatic side, or a control problem before you start throwing parts at it.

Applications & Use Cases

• Track down travel faults like no-move, slow-move, or harsh shifting by following step-by-step diagnostic checks.
• Plan disassembly and reassembly of the transmission so you don’t miss seals, shims, or alignment steps.
• Verify adjustments on linkages, pressures, and controls after repairs to make sure the machine drives straight and responds correctly.
• Test and confirm repairs with proper procedures instead of guessing, especially after replacing major components.
• Support preventive maintenance by showing where to inspect for early wear, leaks, and contamination in the drive system.

FAQ

Q: Can I use this manual on a tablet in the yard?

A: Yes, it works well digitally; you can zoom diagrams and use search to jump to the checks you need beside the machine.

Q: Is it worth printing sections of this manual?

A: Many techs print just the procedures they’re doing that day, so they can mark notes, oil types, and test results without risking a tablet around grease and sparks.

Safety Note

Always isolate the machine, support it securely, and depressurize systems before opening any part of the transmission or hydraulic drive circuit.

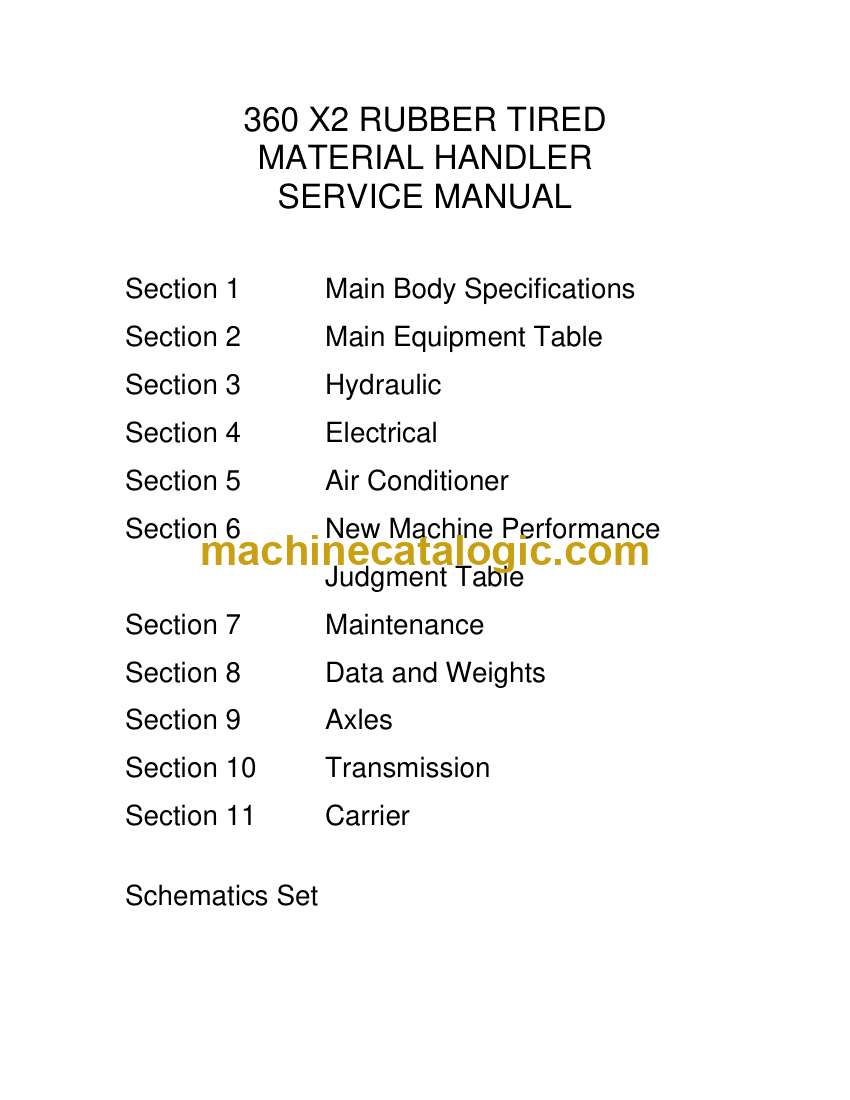

Link Belt 360X2 Rubber Tired Material Handler Index:

• Section 10 Transmission.pdf
  • ZF – HYDROSTATIC POWERSHIFT TRANSMISSION 2 HL 250/270/290
    • Text
    • Tables
• Section 11 Carrier.pdf
  • Equipment Layout Diagram
  • Hydraulic Equipment Layout
  • Hydraulic Equipment Layout (Cont.)
  • Hydraulic System Operation
  • Hydraulic Swivel
  • Electrical Centerpin
  • Drive Motor
  • Drive Motor Schematic
  • Powershift Transmission
  • Towing Provision
  • Transmission Control Valve
  • Drive Train
  • Axles
  • Steering Circuit
  • Brake Circuit Schematic
  • Wheel End Service Brakes
  • Oscillation CYlinder
  • Outrigger Hydraulic Circuit Schematic
  • Outrigger Installation
  • Outrigger Cylinders
