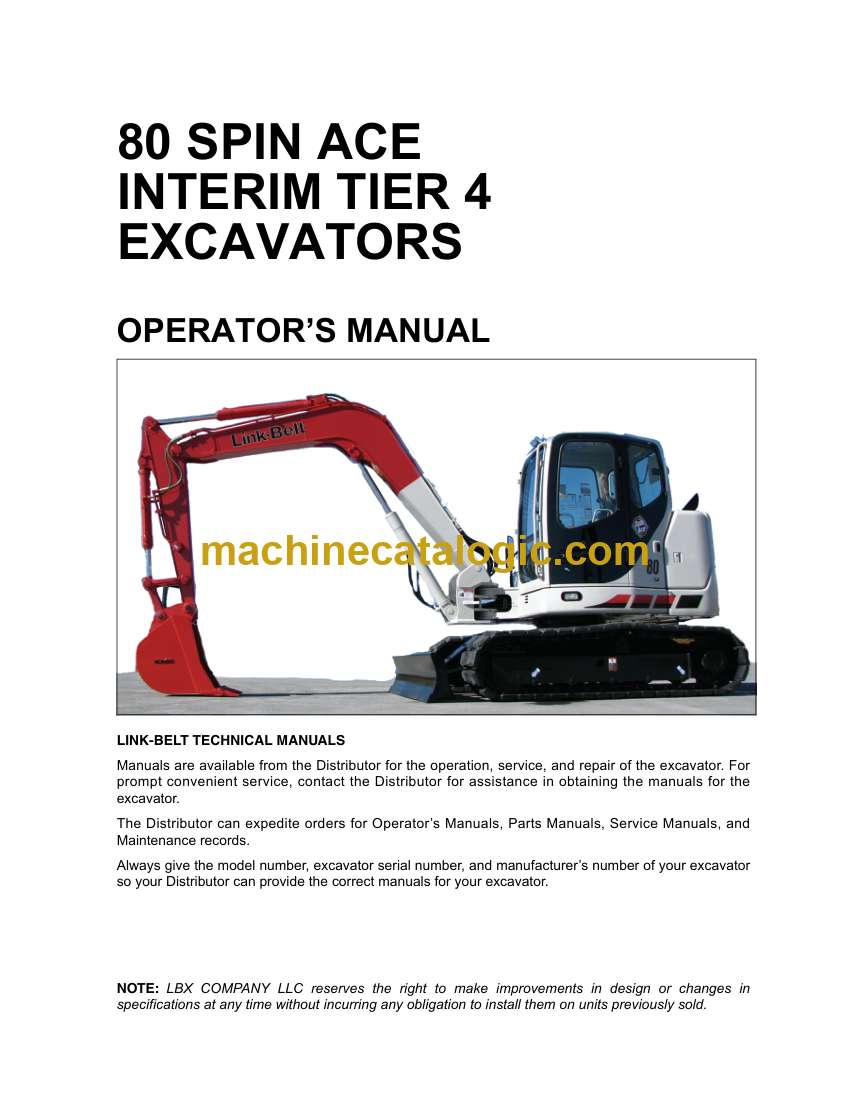

Link Belt 80 Spin Ace Interim Tier 4 Excavator Operators Manual

On a machine this size, you’re usually trenching in tight lots, working around utilities, or loading trucks where space is cramped. This operators manual is what I keep handy to make sure the 80 Spin Ace is started, run, and shut down the way the engine and hydraulics were designed for. It walks you through the control logic, warning lights, and daily walk‑around so you don’t cook a pump or plug the aftertreatment. For example, if the machine starts derating or showing an emissions warning, this is what I’d use to verify the right startup sequence, idle times, and checks before calling it a “bad sensor.”

Applications & Use Cases

• Verify correct startup/shutdown steps so the Interim Tier 4 system isn’t damaged by hard stops or short cycling.
• Trace odd control behavior by confirming what each switch, pedal, and indicator is supposed to do.
• Plan daily inspections to catch leaks, loose hardware, or track issues before they turn into downtime.
• Coach new operators on proper warm‑up, travel, and digging habits that protect the swing and boom circuits.
• Confirm safe work practices when operating close to structures, traffic, or other trades on site.

FAQ

Q: Can I keep this manual on a tablet in the cab?

A: Yes, as long as the file is readable offline and the screen is bright enough, it’s handy for quick checks between cycles.

Q: Is it worth printing parts of it?

A: I’d print the startup/shutdown and daily inspection pages, laminate them, and keep them in the cab for any operator.

Safety Note

Always follow the manual’s procedures step by step before starting work, especially when other people are near the machine.
