MANITOU 8500 Series Parts Manual
What does this catalog contain?
MANITOU 8500 Series Parts Manual includes high-quality images, diagrams, and instructions to help you understand and repair spare part numbers and arrangements. This document can be printed without any restrictions and contains searchable text and bookmarks for easy navigation.
MANITOU 8500 Parts Manual includes:
- The numbered table of contents is easy to use, so you can quickly find the information you need.
- For models that are not very old, you can search for parts and part numbers in the manual by pressing CTRL + F.
What will you get when you get this service catalog?
- After payment has been received, a few minutes later.
- Lifetime PDF and Access To Download (By Request).
- Compatible With Windows, Mac, IOS, Android and Other Systems.
- Generally include Searchable Text and Built-in Index For Instant Information Search Bookmarks.
- Printable – Pages Or Entire Manual.
- Zoomable.

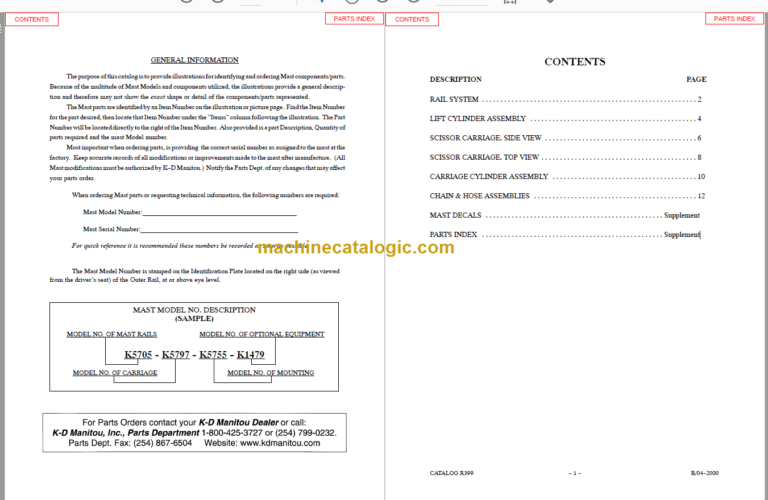

TABLE OF CONTENT OF THE MANITOU 8500 Series Parts Manual
DESCRIPTION PAGE
RAIL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

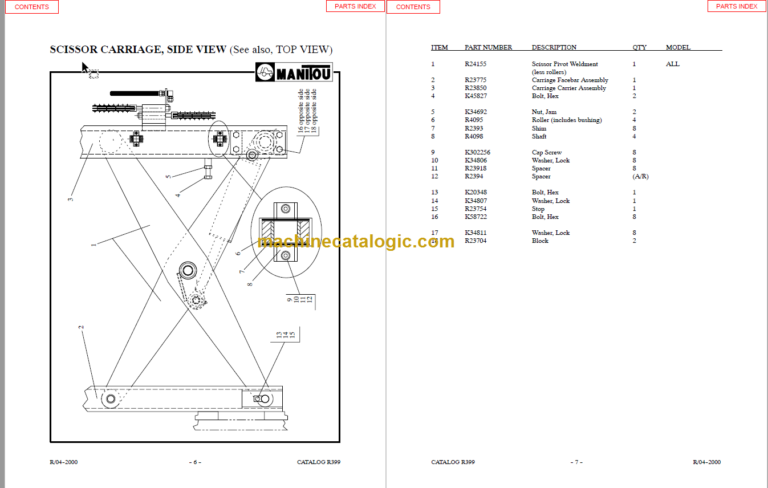

LIFT CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

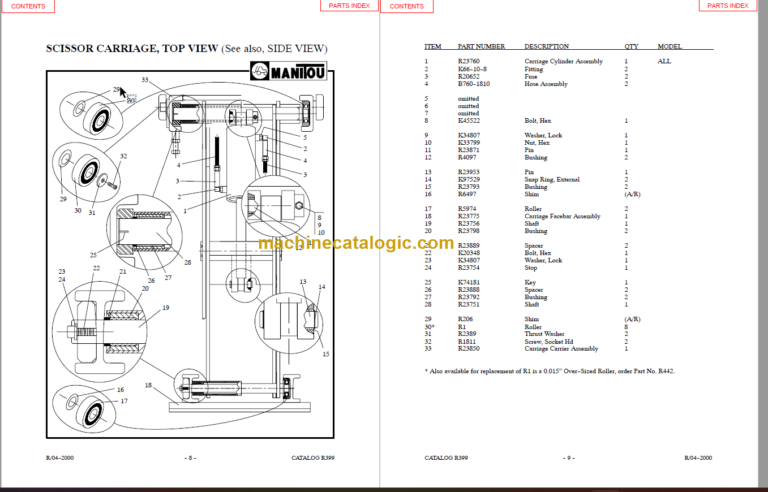

SCISSOR CARRIAGE, SIDE VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SCISSOR CARRIAGE, TOP VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CARRIAGE CYLINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CHAIN & HOSE ASSEMBLIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
MAST DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Supplement
PARTS INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Supplement
