Manitou MLT 628 Turbo S1 PARTS MANUAL

What does this catalog contain?

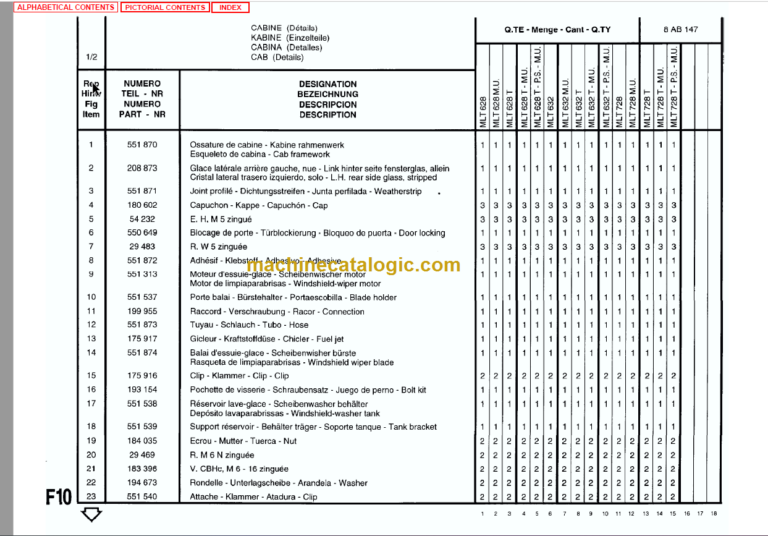

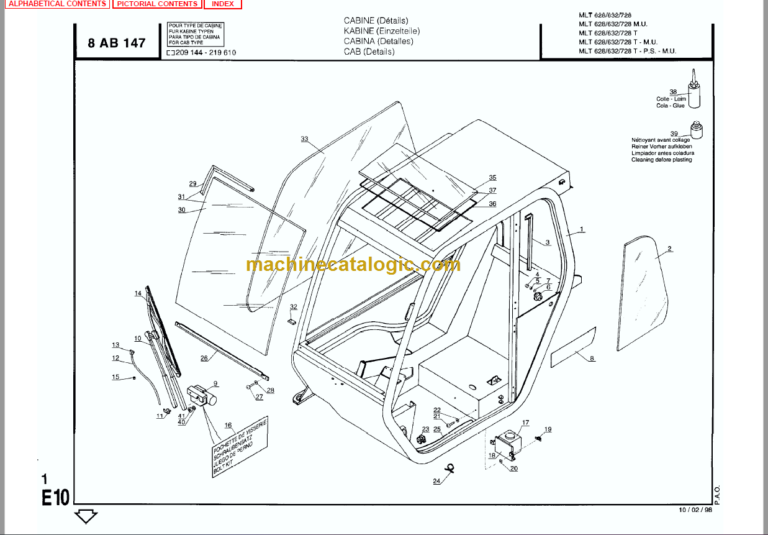

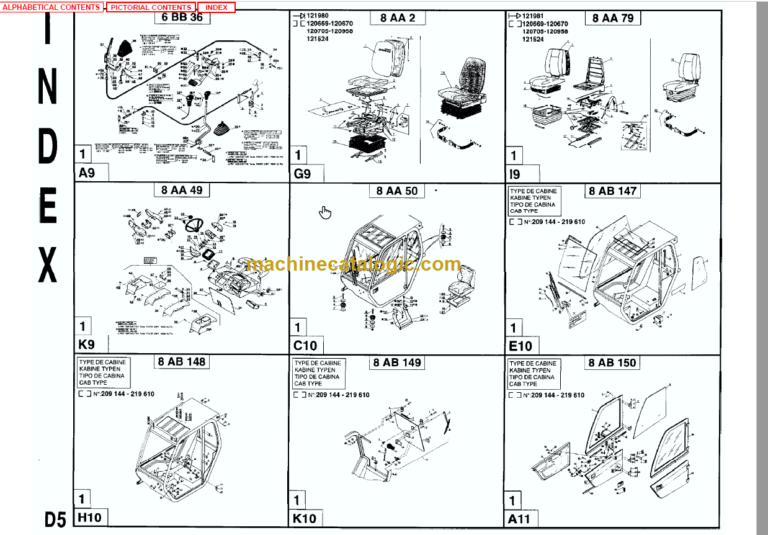

Manitou MLT 628 Turbo S1 PARTS MANUAL includes high-quality images, diagrams, and instructions to help you understand and repair spare part numbers and arrangements. This document can be printed without any restrictions and contains searchable text and bookmarks for easy navigation.

Manitou MLT628 Turbo S1 PARTS MANUAL includes:

The numbered table of contents is easy to use, so you can quickly find the information you need.
For models that are not very old, you can search for parts and part numbers in the manual by pressing CTRL + F.

What will you get when you get this service catalog?

After payment has been received, a few minutes later.
Lifetime PDF and Access To Download (By Request).
Compatible With Windows, Mac, IOS, Android and Other Systems.
Generally include Searchable Text and Built-in Index For Instant Information Search Bookmarks.
Printable – Pages Or Entire Manual.
Zoomable.

TABLE OF CONTENT OF THE MLT 628 Turbo S1 PARTS MANUAL

AIR INTAKE SYSTEM – 4AA68
ALTERNATOR ASSEMBLY (S/N: 121510 AND
BELOW) – AP61
ALTERNATOR ASSEMBLY (S/N: 121511 AND
ABOVE) – AP606
ALTERNATOR INSTALLATION – AP556
BOOM ASSEMBLY I – 5BA45
BOOM ASSEMBLY II – 5BA77
BRAKE PEDAL AND CIRCUIT ASSEMBLY I –
6BA29
BRAKE PEDAL AND CIRCUIT ASSEMBLY II –
6BA39
BRAKE PEDAL AND CIRCUIT ASSEMBLY III –
6BA45
CAB HEATER (CAB P/N: 219682) – 8AB248
CAB HEATER I (CAB, P/N: AS NOTED) – 8AB153
CAB HEATER II (CAB P/N: AS NOTED) – 8AB241
CAB INSTALLATION – 8AA50
CAB MISC. I (CAB P/N: 209144-219610) – 8AB148
CAB MISC. I (CAB P/N: 219682) – 8AB243
CAB MISC. II (CAB P/N: 209144-219610) –
8AB151
CAB MISC. II (CAB P/N: 219682) – 8AB246
CAB, DASHBOARD AND STEERING COLUMN –
8AA49
CAB, DOOR (CAB P/N: 209144-219610) – 8AB150
CAB, DOOR (CAB P/N: 219682) – 8AB245
CAB, OVERHEAD I (CAB P/N: 219682) – 8AB247
CAB, OVERHEAD I (CAB P/N: AS NOTED) –
8AB152
CAB, OVERHEAD II (CAB P/N: AS NOTED) –
8AB240
COUNTERWEIGHT ASSEMBLY – 6AA51
CYLINDER ASSEMBLY, CARRIAGE TILTING –
10CD16
CYLINDER ASSEMBLY, COMPENSATING –
10CB13
CYLINDER ASSEMBLY, LIFTING – 10CA45
CYLINDER ASSEMBLY, TELESCOPIC – 10CC28
DECALS I – 12AA60
DECALS II – 12AA61
DRIVESHAFT, FRONT AND REAR I (NOTE AXLE
PART NO.) – BP56
DRIVESHAFT, FRONT AND REAR II (NOTE AXLE
PART NO.) – BP91
DRIVESHAFT, FRONT AND REAR III (NOTE
AXLE PART NO.) – BP91
DRIVESHAFT, FRONT I (NOTE AXLE PART NO.)
– BP54
DRIVESHAFT, FRONT II (AXLE NO. 221781) –
BP90
DRIVESHAFT, FRONT III (NOTE AXLE PART NO)
– BP90
ELECTRICAL, DASHBOARD INSTRUMENTS
(S/N: 123467 AND ABOVE) – 11CC38
ELECTRICAL, DASHBOARD, INSTUMENTS (S/N:
123466 AND BELOW) – 11CC25
ELECTRICAL, FUSEBOX – 11CA17
ELECTRICAL, LIGHTING, MISC. I (S/N: 123466
AND BELOW) – 11CB94
ELECTRICAL, LIGHTING, MISC. II (S/N: 123467
AND ABOVE) – 11CB147
ELECTRICAL, PRIMARY I (S/N: 118317 TO
123466) – 11AA141
ELECTRICAL, PRIMARY II (S/N: 12346 TO
128020) – 11AA142
ELECTRICAL, PRIMARY III (S/N: 128021 AND
ABOVE) – 11AA143
ENGINE AND TRANSMISSION MOUNTS –4AA65
ENGINE BLOCK – AP541
ENGINE CRANKSHAFT PULLEY – AP410
ENGINE OIL FILTER HOUSING ASSEMBLY –
AP552
ENGINE OIL PAN – AP557
ENGINE SENSORS – 11CD13
ENGINE, CAMSHAFT AND TIMING GEAR –
AP549
ENGINE, CONNECTING RODS – AP543
ENGINE, CRANKSHAFT – AP543
ENGINE, CYLINDER HEAD – AP544
ENGINE, FAN INSTALLATION – AP553
ENGINE, FLYWHEEL HOUSING – AP405
ENGINE, GASKET SETS – AP559
ENGINE, OIL PUMP – AP404
ENGINE, ROCKER ARM ASSEMBLY – AP518
ENGINE, VALVE COVER AND MISC. – AP551
ENGINE, WATER OUTLET – AP554 AND MORE
