Manitou TMP25-TMP5500HT Parts Manual 800806

What does this catalog contain?

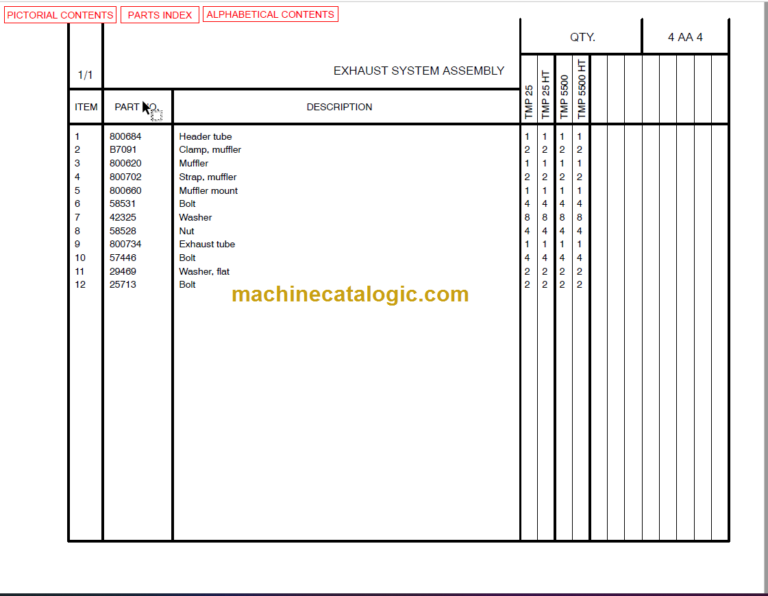

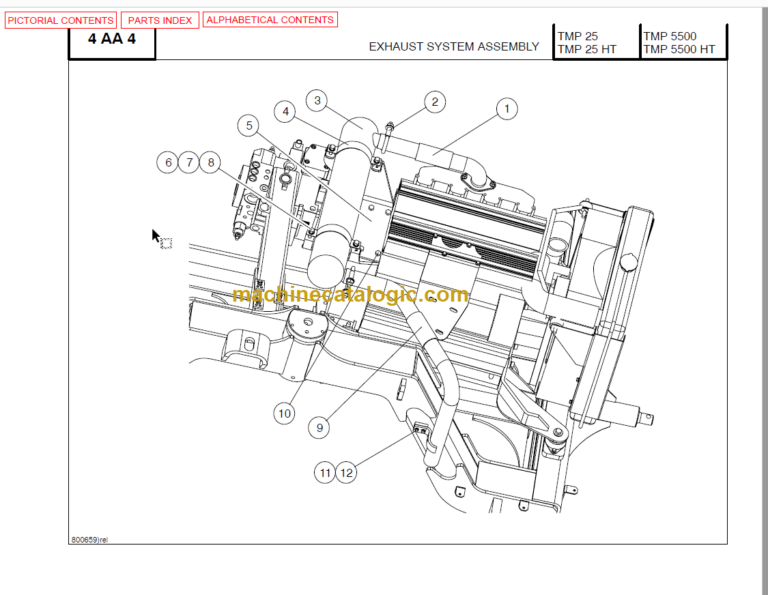

Manitou TMP25-TMP5500HT Parts Manual 800806 includes high-quality images, diagrams, and instructions to help you understand and repair spare part numbers and arrangements. This document can be printed without any restrictions and contains searchable text and bookmarks for easy navigation.

Manitou TMP 25-TMP 5500HT Parts Manual 800806 includes:

• The numbered table of contents is easy to use, so you can quickly find the information you need.
• For models that are not very old, you can search for parts and part numbers in the manual by pressing CTRL + F.

What will you get when you get this service catalog?

• After payment has been received, a few minutes later.
• Lifetime PDF and Access To Download (By Request).
• Compatible With Windows, Mac, IOS, Android and Other Systems.
• Generally include Searchable Text and Built-in Index For Instant Information Search Bookmarks.
• Printable – Pages Or Entire Manual.
• Zoomable.

TABLE OF CONTENT OF THE TMP25 TMP5500HT Parts Manual 800806

ALTERNATOR, DT14–1
CAB MOUNTING, 8AC1–1
CAB, OVERHEAD GUARD, 8AC2–1
CABLE AND CHAIN ATTACHING KIT, TRAILER,
15AG2–1
CAMSHAFT, DT3–1
CARRIAGE ASSEMBLY, U.K., 5AC2–1
CARRIAGE ROTATOR CYLINDER ASSEMBLY,
10CB1–1
CARRIAGE, ROTATOR ASSEMBLY, U.S.,
5AC1–1
CONTROL VALVE ASSEMBLY, 10DA1–1
CRANKSHAFT, DT4–1
CYLINDER BLOCK, DT1–1
CYLINDER HEAD, DT7–1
DECALS, CAB, 12AA1–1
DECALS, ENGINE COMPARTMENT, 12AA4–1
DECALS, FUEL AND HYDRAULIC TANKS,
12AA2–1
DECALS, MAST, 12AA3–1
ELECTRICAL COMPONENTS, BATTERY/
CABLES & BACKUP ALARM, 11CB1–1
ELECTRICAL COMPONENTS, PRIMARY
MISC., 11CB2–1
ELECTRICAL HARNESS ASSEMBLY, 11AA1–1
ENGINE OIL FILTER ADAPTER KIT, 4AA3–1
ENGINE RELAY, DT16–1
ENGINE THROTTLE CABLE, 6BB2–1
ENGINE, RADIATOR AND MOUNTINGS,
4AA1A–1, 4AA1B–1
EXHAUST SYSTEM ASSEMBLY, 4AA4–1
FILTERS, BELTS, AND SCREENS, 2AA1–1
FLYWHEEL HOUSING, DT11–1
FRAME AND YOKE (STEER AXLE) ASSEMBLY,
6AA1–1
FRONT FENDERS, 9AA1–1
FUEL LINE ASSEMBLY, 4AC2–1
FUEL TANK ASSEMBLY, 4AC1–1
HYDRAULIC LINES FOR MAST EXTENTION,
10AJ1–1
HYDRAULIC LINES, AUXILIARY, 10AJ2–1
HYDRAULIC TANK ASSEMBLY, 10AA2–1
HYDRAULICS, CONTROL VALVE TO TANK,
10AA1–2
HYDROSTATIC PUMP AND MOTOR CONNEC-
TIONS, 4AB1–1
INCHING PEDAL ASSEMBLY, 6BB1–1
INJECTION, DT5–1
INTAKE / EXHAUST MANIFOLD, DT10–1
LAMP ASSEMBLIES (LESS TAIL LIGHTS),
11BA3–1
MAST ASSEMBLY, less CARRIAGE, 5AB1–1
MAST EXTENSION ASSEMBLY, 5CA1–1
MAST EXTENSION CYLINDER ASSEMBLY,
10CC1–1
MAST HOSE KIT, U.S., 5AB2–1
MAST LIFT CYLINDER ASSEMBLY, 10CA1–1
MAST MOUNTING ASSEMBLY, 5CA2–1
MAST SIDE SHIFT CYLINDER ASSEMBLY,
10CJ1–1
MAST TILT CYLINDER ASSEMBLY, 10CD1–1
MOTOR, REAR WHEEL, BF12–1, BF19–1
MOTORS, FRONT WHEEL, BF11–1
MOUNTING KIT, TRAILER, 15AG1–1
OIL COOLING FAN, 10AF1–1
OIL PUMP AND DIPSTICK, DT2–1
PISTONS, CONNECTING RODS, DT6–1
PRESSURE REDUCING VALVE, 6BB3–1
PUMP, HYDROSTATIC AND SECONDARY
GEAR PUMP, BC128–1
PUMP, SECONDARY GEAR, BC129–1
RADIATOR AND FAN MOUNTING, 4AA2–1
ROCKER ARM COVERS, DT8–1
ROTATOR AND STABILIZER CYLINDER HY-
DRAULIC LINES, 10AG1–1
SEAT, SEAT BELT, CONTROL LEVERS, MISC.,
8AA1–1
SHEETMETAL, HOOD AND MISC., 9AA2–1
SHEETMETAL, MISC. COVERINGS, 9AA3–1
STABILIZER ASSEMBLY, 6AA2–1
STABILIZER CYLINDER ASSEMBLY, 10CF1–1
STABILIZER CYLINDER HYDRAULIC LINES,
10AG2 — 1
STARTER MOTOR, DT13–1
STARTER SOLENOID, DT15–1
STEERING CIRCUIT HYDRAULICS, 10BA1–1
STEERING CYLINDER, 10CE1–1
TAIL LIGHTS, UK, 11BA2–1
TAIL LIGHTS, US, 11BA1–1
TIMING GEAR BOX, DT9–1
TIRES AND WHEELS, 3AA1–1
WATER PUMP, DT12–1
WIRING HARNESS, ROTATOR, 11AA2–1
