Mercedes-Benz 900.9 Engine Service Manual

The Mercedes-Benz 900.9 is a diesel engine used in cranes and other heavy machines, and this one is documented with BlueTec Diesel Technology for Euro 4 and Euro 5. When it goes down on a job site, the clock runs on rental revenue. A technician or fleet mechanic reaches for the service manual to fix the engine in-house, find the right procedure, and get the machine back to work without waiting on a dealer.

What this manual helps you do

• Trace the SCR function description, from the metering device and injection nozzle to the AdBlue tank.
• Check the temperature sensor upstream and downstream, plus the SCR air temperature, air humidity and AdBlue temperature sensors.

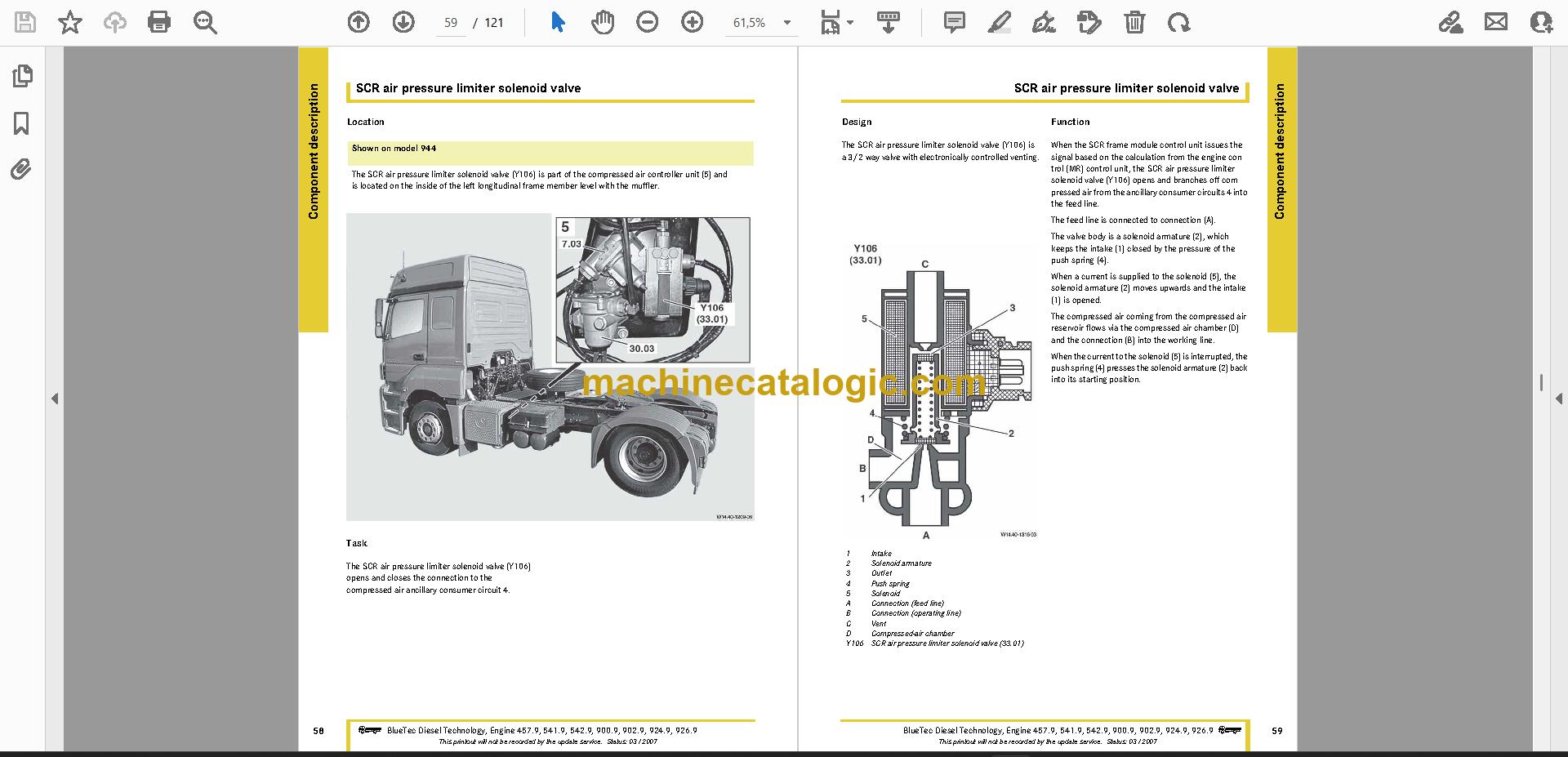

• Diagnose compressed-air supply problems using the SCR compressed air pressure sensor, the pressure limiting valve and the related solenoid valves.
• Follow the component descriptions to see how the system ties into the overall network.
• Verify what changed in the engine model series, including the oil pan, crank assembly, mixture formation, air intake, supercharging, compressor and engine lubrication with oil cooling.

Who this is for

Crane service technicians and rental fleet mechanics who keep 900.9 engines running between jobs. It also suits independent repair shops and plant maintenance staff who take on engine work without dealer support, or who have a used machine that arrived with no paperwork.

FAQ

Q: What do I receive and how is it organised?

A: You get the full set: 7 PDF files, 129 pages in total, in English. That is two manuals, Manual 1 (121 pages, the main manual) and Manual 2 (8 pages). The text is searchable and copyable, so you can jump straight to a sensor or valve name.

Q: Which machine does it fit?

A: It is written for the Mercedes-Benz 900.9 engine, with BlueTec Diesel Technology Euro 4 and Euro 5 in the title wording.

Q: How does it fit the job I'm doing?

A: If you're diagnosing the SCR system, replacing a sensor or valve, or working on the lubrication system and air intake, the sections give you a procedure-level reference to work from at the bench or in the yard.

Keep it on the shop computer or tablet, search for the component you're chasing, and get the engine repaired and back on the fleet.

Click here to view the preview (PDF)
