Mitsubishi FBC25 Forklift Service Manual (99719-74100)

This Mitsubishi FBC25 is a cushion-tire electric counterbalance truck, the kind you see doing dock work, tight warehouse aisles, and trailer loading. The service manual is what the tech grabs when the truck is faulting, weak, or torn apart in the bay and guesswork will get expensive. Around my shop, this is the book you need if you're chasing wiring issues, controller faults, or doing real mechanical work on one of these electrics.

What this manual helps you do

• Diagnose and trace electrical faults in the traction and pump circuits using wiring diagrams and connector callouts

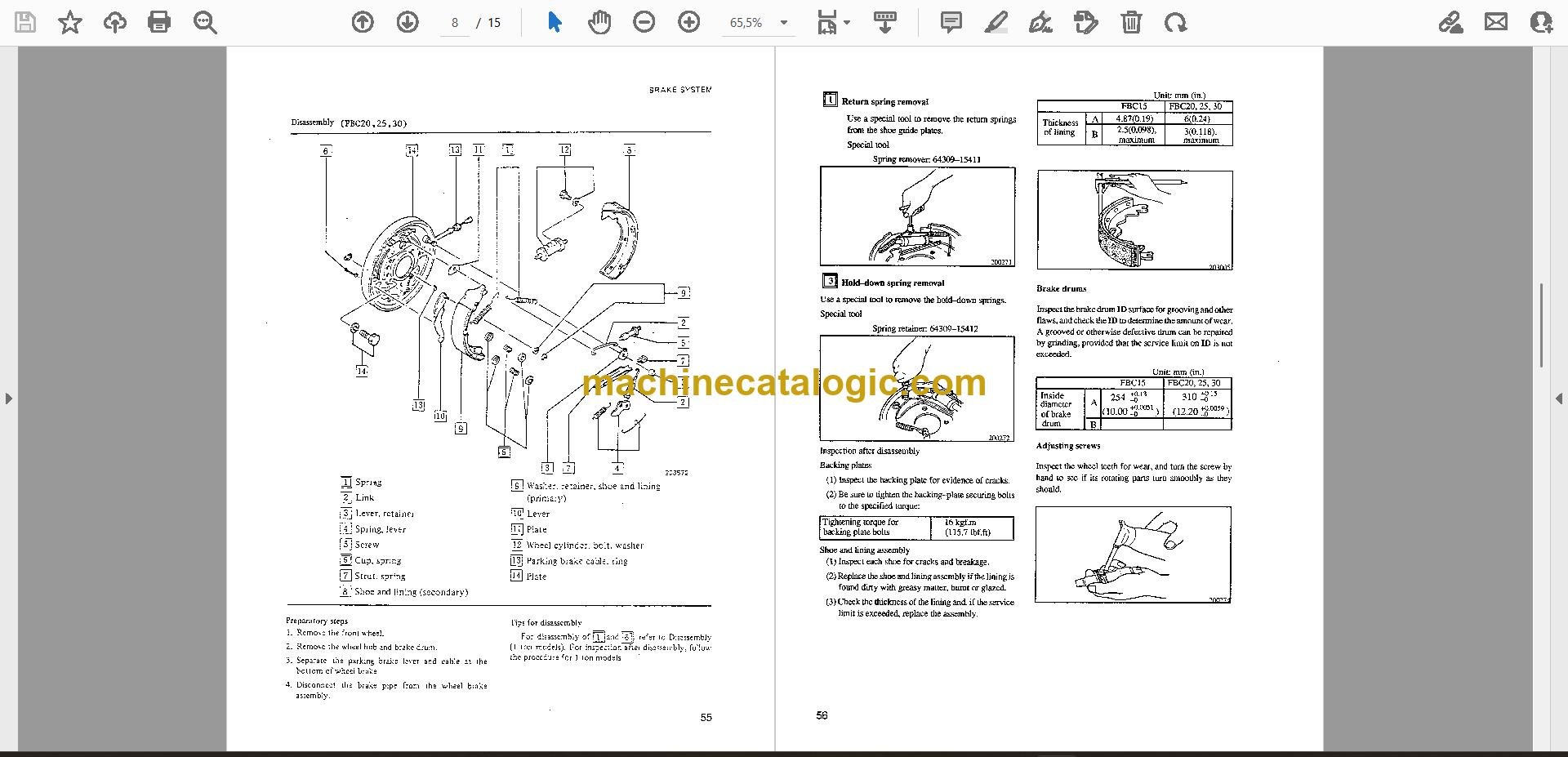

• Check, adjust, and replace brake, steering, and axle components after wear or collision damage
• Follow teardown and reassembly steps on the drive unit, reduction gear, and related bearings and seals
• Troubleshoot hydraulic lift and tilt problems, then set pressures and adjust valves to spec
• Verify controller settings, fault codes, and basic tests on the electric traction and hydraulic systems

Who this is for

This is aimed at a warehouse maintenance tech, dealer tech, independent shop, or rental fleet mechanic who already turns wrenches on forklifts. If you just need operating instructions or safety info, you want the operator's handbook, not this service manual.

FAQ

Q: What format is it in, and can I search it?

A: It's a set of 17 PDF files, scanned pages. You can zoom and print, but you can't text-search. Wiring diagrams are clear enough to read when zoomed.

Q: Will it cover my exact truck?

A: It's written for FBC25 trucks in the AFB2-50353 and AFB2A-50005 FW serial range. If your plate is outside that, a lot will still look familiar, but I'd call it a maybe.

Q: Is this the right document for basic maintenance only?

A: It's overkill if you're just changing tires and topping fluids. It earns its keep when you're diagnosing faults or doing component-level repairs.

Bottom line: If your truck is an FBC25 in that serial window and you're doing real repair work, this is the right manual. If you want how to drive it, skip this one.

Models covered by this manual

Mitsubishi publication 99719-74100 is the factory service manual for the FBC25, serial range AFB2-50353, AFB2A-50005 FW. The same publication covers 3 further forklift models: FBC15, FBC20, FBC30. Check the model and serial number on your data plate before ordering.

Table of Contents:

• EV100 (99719-71100)
  • General Information
  • Description of Circuits
  • Assembly and Adjustment
  • Motors
  • Wiring
  • Wiring Schematic
• Chassis and Mast (99719-74100)
  • Foreword
  • General Information
  • Reduction Differential and Front Axle
  • Rear Axle
  • Brake System
  • Steering System
  • Hydraulic System

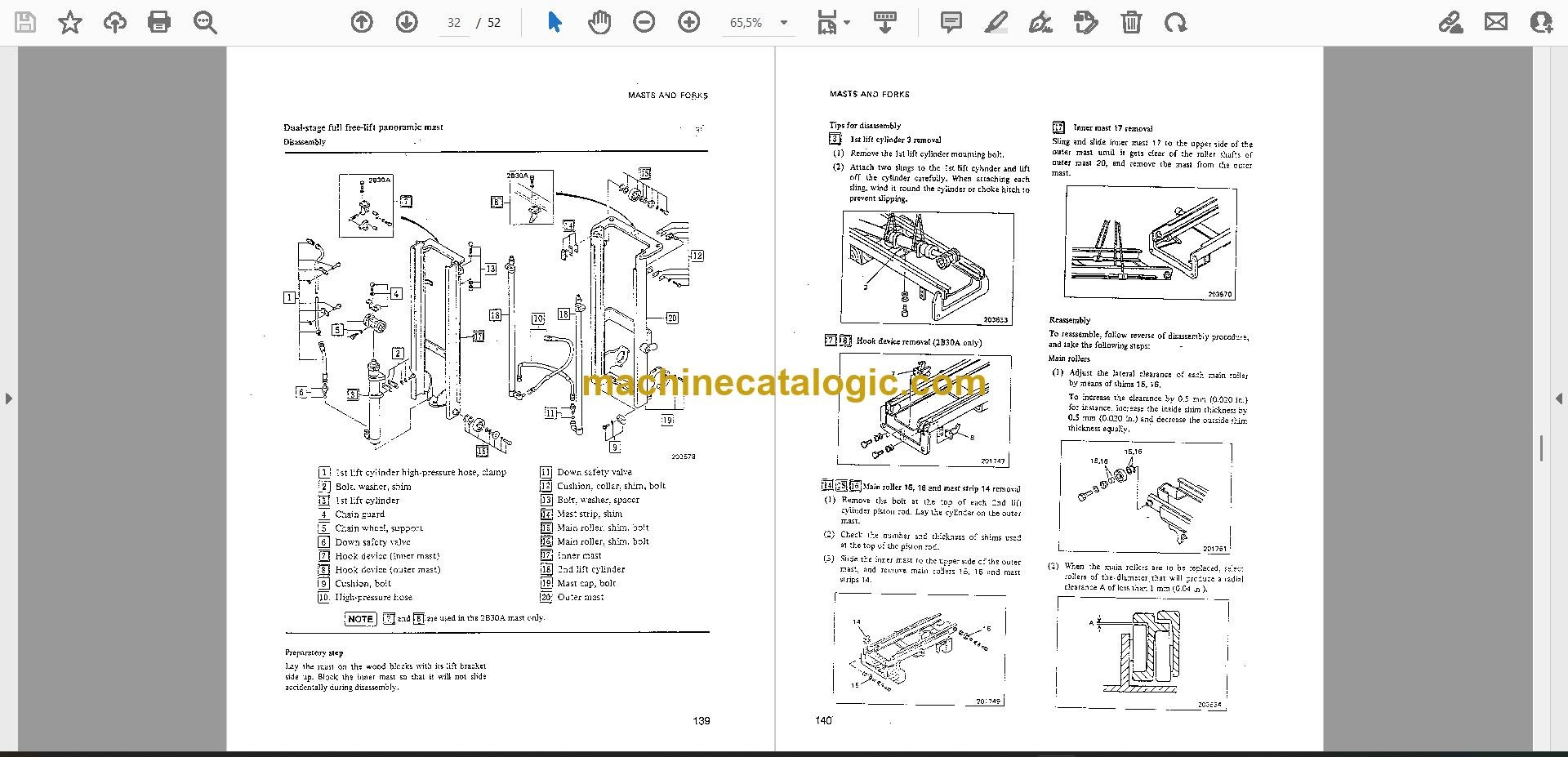

  • Mast and Forks
  • Troubleshooting
  • Service Data
  • Inspection Guide
