Description
MST 30 Tons Excavator Spare Parts Catalogue (EN-TR)
MST 30 Tons Excavator Index:
ANA ŞASİ KOMPLESİ / MAIN FRAME ASSY…………………………………………………………………………. 2
HİDROLİK SOĞUTUCU MONTAJI / HYDRAULIC COOLER ASSY………………………………………………… 4
YAĞ TANKI ADAPTÖR KOMPLESİ / OIL TANK ADAPTER ASSY…………………………………………………. 6
HİDROLİK FİLTRESİ MONTAJI / HYDRAULIC FILTER ASSY…………………………………………………….. 8
YAKIT TANKI MONTAJI / FUEL TANK ASSY………………………………………………………………………… 10
YAKIT DOLUM POMPASI / FUEL FILLER PUMP ………………………………………………………………….. 12
YAĞ TANKI MONTAJI / OIL TANK ASSY…………………………………………………………………………….. 14
ANA POMPA MONTAJI / MAIN PUMP ASSY………………………………………………………………………… 16
ANA POMPA TESİSATI / MAIN PUMP PIPING…………………………………………………………………….. 18
YAKIT TESİSATI / FUEL PIPING…………………………………………………………………………………….. 22
PERDE GEÇİŞ / BULKHEAD……………………………………………………………………………………………. 24
PEDAL VALFİ / PEDAL VALVE…………………………………………………………………………………………. 26
TOPLAYICI MONTAJI / COLLECTOR ASSY………………………………………………………………………….. 28
KUMANDA MONTAJI / JOYSTICK ASSY……………………………………………………………………………… 30
KUMANDA HİDROLİK HORTUM / JOYSTICK HYDRAULIC HOSE……………………………………………… 32
PEDAL,TOPLAYICI HİD. HORT. / PEDAL-COLLECTOR HYD. HOSES………………………………………….. 34

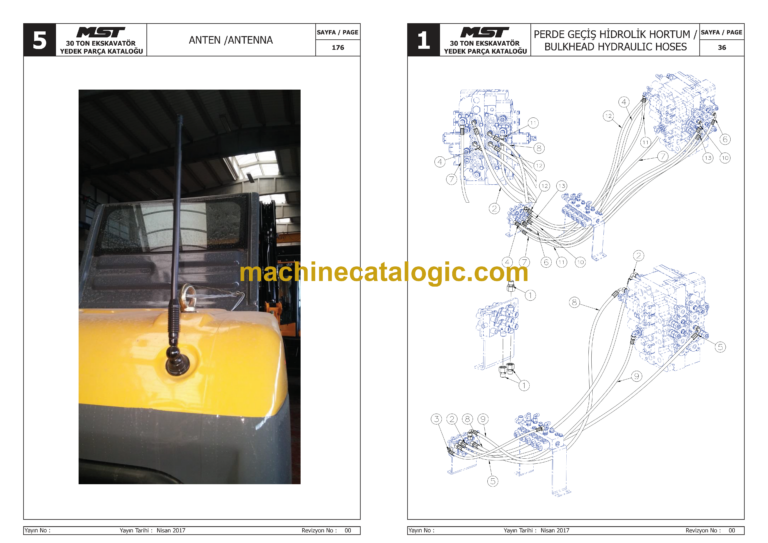

PERDE GEÇİŞ HİDROLİK HORTUM / BULKHEAD HYDRAULIC HOSES………………………………………. 36
S VALFİ PİLOT TESİSATI / S VALVE PILOT PIPING……………………………………………………………… 38
ANA KUMANDA VALFİ KOMP. / MAIN CONTROL VALVE ASSY…………………………………………………. 40
MOTOR MONTAJI / ENGINE INSTALLATION………………………………………………………………………. 44
SOĞUTUCU MONTAJI / COOLER ASSY……………………………………………………………………………… 46
SUSTURUCU ALTI KOMPLESİ / MUFFLER SUB ASSY…………………………………………………………….. 50
HAVA GİRİŞİ MONTAJI / AIR INTAKE ASSY……………………………………………………………………….. 52
DENGE AĞIRLIĞI MONT. / COUNTERWEIGHT ASSY…………………………………………………………….. 54

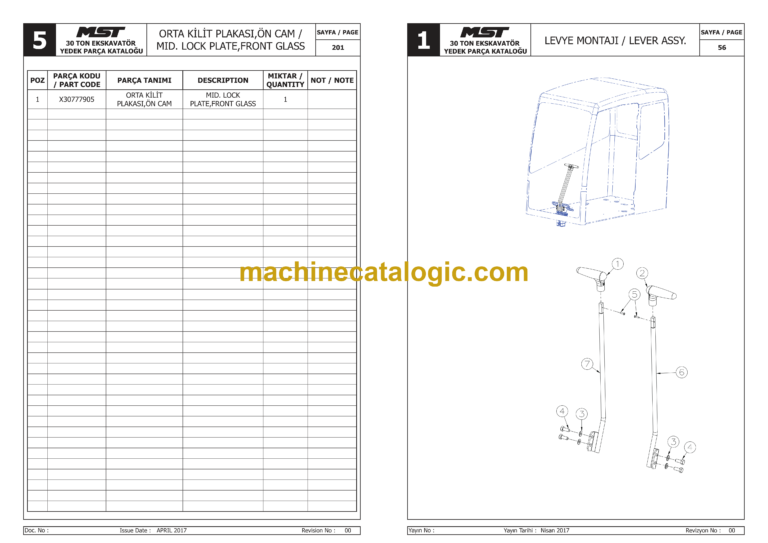

LEVYE MONTAJI / LEVER ASSY. …………………………………………………………………………………….. 56
DESTEK KOMPLESİ / SUPPORT ASSY………………………………………………………………………………. 58
GÖVDE KAPAMA MONTAJI / BODY COVER ASSY. ……………………………………………………………….. 62
KAPUT KOMPLESİ / BONNET ASSY………………………………………………………………………………….. 68
KÖPRÜ MONTAJI / BRIDGE ASSY……………………………………………………………………………………. 70
TUTUNMA BORUSU MONTAJI / GRAB PIPE ASSY………………………………………………………………… 72
AYNA GRUBU / MIRROR GROUP…………………………………………………………………………………….. 74
MENTEŞE MONTAJI / HINGE ASSY………………………………………………………………………………….. 76
İZOLASYON GRUBU / INSULATION GROUP……………………………………………………………………….. 78
RADYATÖR MONTAJI / RADIATOR ASSY…………………………………………………………………………… 80
