Description

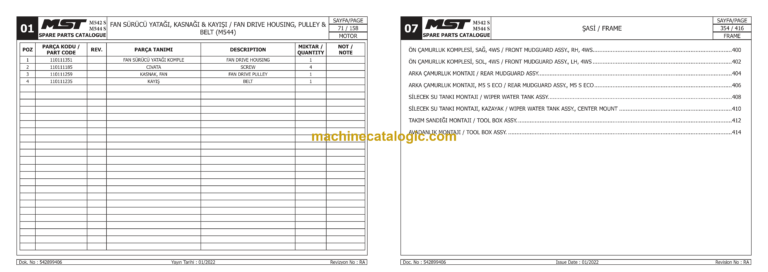

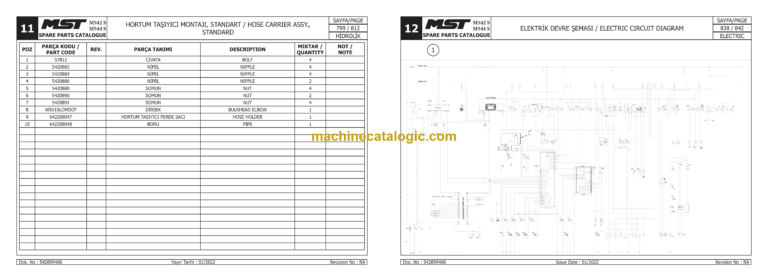

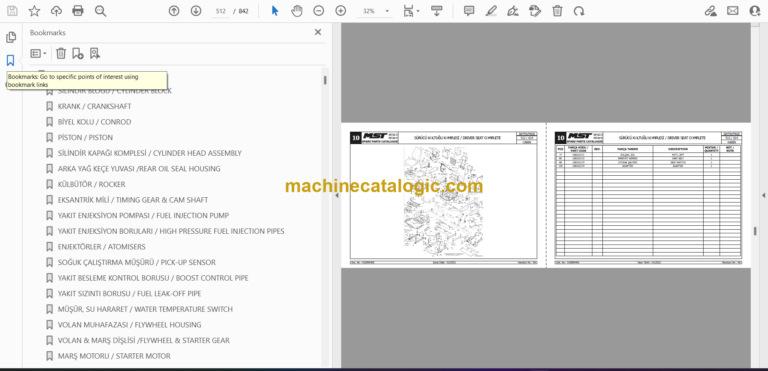

MST 542S, 544S Tier IIIA Backhoe Loader Spare Parts Catalogue (EN-TR)

MST 542S, 544S Tier IIIA Backhoe Loader Index:

MOTOR / ENGINE
ISITMA VE SOGUTMA / HEATING & COOLING
SANZIMAN / TRANSMISSION
ÖN DiNGiL / FRONT AXLE
ARKA DiNGiL / REAR AXLE
GÜq AKTARIM / POWERTRAIN
SASi / FRAME
YÜKLEYiCi / LOADER
KAZICI / BACKHOE
KABiN / CABIN
HiDROLiK / HYDRAULIC
ELEKTRiK / ELECTRIC
SiLiNDiR BLOGU / CYLINDER BLOCK
KRANK / CRANKSHAFT
BiYEL KOLU / CONROD
PiSTON / PISTON
SiLiNDiR KAPAGI KOMPLESi / CYLINDER HEAD ASSEMBLY
ARKA YAG YUVASI [REAR OIL SEAL HOUSING
KÜLBÜTÖR / ROCKER

EKSANTRiK MiLi / TIMING GEAR & CAM SHAFT
YAKIT ENJEKSiYON POMPASI / FUEL INJECTION PUMP
YAKIT ENJEKSiYON BORULARI / HIGH PRESSURE FUEL INJECTION PIPES
ENJEKTÖRLER / ATOMISERS
SOGUK CALISTIRMA MI”JSÜRÜ / PICK-UP SENSOR
YAKIT BESLEME KONTROL BORUSU / BOOST CONTROL PIPE
YAKIT SIZINTI BORIJSU / FUEL LEAK-OFF PIPE
MI”JSÜR, SIJ HARARET / WATER TEMPERATURE SWITCH
VOLAN MUHAFAZASI / FLYWHEEL HOUSING
VOLAN & MARS DiSLisi [FLYWHEEL & STARTER GEAR
MARS MOTOW / STARTER MOTOR
FAN SÜRÜCÜ YATAGI, “SNAGI & KAYISI / FAN DRIVE HOUSING, PULLEY & BELT
(M 544)
KARTER / SUMP
YAG SEViYE CUBUGU & BORIJSU / DIPSTICK & FILLER TUBE
YAG EMis BORUSU / OIL STRAINER
TAHLiYE BORIJSIJ / BREATHER PIPE
SiLiNDiR KAPAGI / CYLINDER HEAD COVER

SiLiNDiR KAPAGI / CYLINDER HEAD COVER
YAG DOLDURMA BORUSU / FILLER
YAG SOGUTUCU / OIL COOLER
YAG FiLTRE KAFASI / OIL FILTER HEAD
YAG FiLTRESi / OIL FILTER
KÖR KAPAK / BLANKING PLATES
KRANK KASNAGI / FRONT END DRIVE INPUT
SIJ POMPASI / WATER PUMP
BAGLANTI BORUSU / PIPE
TERMOSTAT BAGLANTISI / WATER OUTLET HOUSING
PERVANE / FAN
ALTERNATÖR / ALTERNATOR
ALTERNATÖR BAGLANTILARI / ALTERNATOR BRACKET & FIXING
ALTERNATÖR KASNAGI / ALTERNATOR PULLEY
YARDIMCI KASNAK / AUXILIARY DRIVE
ZAMANLAMA DiSLisi MUHAFAZASI / TIMING CASE
EKSANTRiK & AVARE DiSLi / IDLER GEAR
ZAMANLAMA DiSLisi KAPAGI / TIMING GEAR COVER

BESLEME POMPASI – YAKIT FiLTRESi / LIFT PUMP – FUEL FILTER
BORU YAKIT FiLTRESi – ENJEKSiYON POMPASI / FILTER TO INJECTION PUMP PIPE
BORIJ, ENJEKSiYON POMPASI – YAKIT FiLTRESi / INJECTION PUMP TO FILTER PIPE
ISITMA BUJiLERi / HEATER PLUGS
MOTOR KALDIRMA KULAKLARI / ENGINE LIFTING EYES
MOTOR BAGLANTI ELEMANLARI / ENGINE MOUNTS
MOTOR BAGLANTI ELEMANLARI / ENGINE MOUNTS
YAG BASING ÖLCÜMIJ – BASING HATTI / LUBRICATING OIL PRESSURE SWITCH –
GAUGE
YAG BASING MIJSIJRÜ / OIL PRESSURE SWITCH
YAKIT – SU AYIRICI / FUEL PRE – LIFT PUMP (WATER TRAP)
YAKIT – SU AYIRICI / WATER TRAP
YARDIMCI DONANIMLAR / MISCELLANEOUS & AUXILIARIES
RADYATÖR MONTAJI / RADIATOR ASSEMBLY
RADYATÖR KOMPLESi / RADIATOR COMPLETE
KLiMA SETi / AIR CONDITION SET
EVAPARATÖR KOMPLESi / EVAPORATOR COMPLETE
KLiMA SETi MONTAJI / AIR CONDITION SET ASSY.
KALORiFER SETi / CENTRAL HEATING SET

SANZIMAN GÖVDESi 4WS / TRANSMISSION HOUSING 4WS
GiRis MiLi 4WS / INPUT & PTO TRANSMISSION SHAFTS (AXIS A) 4WS
GERi viTES MiLi & ARA MiL 4WS /REV. SHAFT (AXIS D) & LAYSHAFT (AXIS B) 4WS
iKiNCiL MiL 4WS / SECONDARY SHAFT (AXIS C) 4WS
MiLi 4WS / OUTPUT SHAFT (AXIS E) 4WS
KONTROL VALFi 4WS / CONTROL VALVE 4WS
ELEKTRONiK KONTROL ÜNiTESi 4WS / ELECTRONIC CONTROL UNIT (ECIJ) 4WS
TORK KONVERTÖR 4WS / TORQUE CONVERTER 4WS
DiNGiL GÖVDESi 2WS / AXLE HOUSING 2WS
DiNGiL KAFASI & DiREKSiYON siLiNDiRi 2WS / SWIVEL HOUSINGS & STEERING
CYLINDER 2WS
AYNA MAHRUTi DiSLiLERi 2WS / BEVEL GEAR SET 2WS
DiFERANSiYEL 2WS / DIFFERENTIAL 2WS
AKS MiLi 2WS / DOUBLE I-J-JOINT 2WS
TEKERLEK GÖBEGi 2WS / WHEEL HUB 2WS
PLANET TASIYICI DiSLi GRUBIJ 2WS / PLANETARY CARRIER 2WS
DiNGiL GÖVDESi 4WS / AXLE HOUSING 4WS
DiNGiL “FASI & DiREKSiYON siLiNDiRi 4WS / SWIVEL HOUSINGS & STEERING
CYLINDER 4WS
AYNA MAHRUTi DiSLiLERi 4WS / BEVEL GEAR SET 4WS

HiDROLiK TANK MONTAJI, 4WS / HYDRAULIC TANK ASSY., 4WS
HiDROLiK YAG TANKI KAPAGI / HYDRAULIC OIL TANK COVER
AKI) MONTAJI 135 AMPER / BATTERY ASSY. 135 AMPER
AKI) MONTAJI 165 AMPER / BATTERY ASSY. 165 AMPER
DENGE AYAK MONTAJI / STABILIZER ASSY.
DENGE AYAK MONTAJI, KAZAYAK / STABILIZER ASSY., CENTER MOUNT
DENGE AYAK PABUq MONTAJI, KAZAYAK / STABILIZER PADDLE ASSY.. CENTER
MOUNT
GERI LAMBA MONTAJI, KAZAYAK / REAR LAMP ASSY., CENTER MOUNT
MOTOR KAPUT MONTAJI / BONNET MOTOR ASSY.
MOTOR KAPUT MONTAJI, M5 S ECO / BONNET MOTOR ASSY., M5 S ECO
ÖN CAMI-JRLIJK KOMPLESi, SAG 2WS / FRONT MUDGUARD ASSY., RH
ÖN CAMI-JRLUK KOMPLESi, SOL 2WS / FRONT MUDGUARD ASSY., LH
ÖN CAMI-JRLIJK KOMPLESi, SAG, 4WS / FRONT MUDGUARD ASSY., RH, 4WS
ÖN CAMURLIJK KOMPLESi, SOL, 4WS / FRONT MUDGUARD ASSY., LH, 4WS
ARKA CAMI-JRLIJK MONTAJI / REAR MUDGUARD ASSY.
ARKA CAMIJRLIJK MONTAJI, M5 S ECO / REAR MUDGUARD ASSY., M5 S ECO
SiLECEK SU TANKI MONTAJI / WIPER WATER TANK ASSY.

SÜRÜCÜ KOLTUGU KOMPLESi, STAR PLUS / DRIVER SEAT COMPLETE STAR PLUS
KABiN SASi MONTAJI / CABIN CHASSIS ASSY.
KABiN KARKAS VE TABAN MONTAJI / CABIN FRAME AND FLOOR ASSY.
KABiN KARKAS VE TABAN MONTAJI, M5 S ECO / CABIN FRAME AND FLOOR ASSY.,
M5 S ECO
KABiN YAN KAPAMA MONTAJI / CABIN SIDE COVER ASSY.
ÖN KONSOL MONTAJI, 2WS, M5 S ECO / FRONT CONSOLE ASSY., 2WS, M5 S ECO
ÖN KONSOL MONTAJI, 2WS / FRONT CONSOLE ASSY., 2WS
ÖN KONSOL MONTAJI, 2WS, EKRANLI / FRONT CONSOLE ASSY., 2WS, SCREEN
ÖN KONSOL MONTAJI, 4WS / FRONT CONSOLE ASSY., 4WS
ÖN KONSOL MONTAJI, 4WS, EKRANLI / FRONT CONSOLE ASSY., 4WS, SCREEN
YANGIN DUVARI VE iZOLASYON MONTAJI / FIREWALL & ISOLATION ASSY
SAG KONSOL MONTAJI, JOYSTICK / CONSOLE ASSY., RH, JOYSTICK
SAG KONSOL MONTAJI, JOYSTICK, REXROTH / CONSOLE ASSY., RPI, JOYSTICK,
REXROTH
SAG KONSOL MONTAJI, LEVYELi / CONSOLE ASSY., RH, CONTROL STICK
SOL KONSOL MONTAJI / CONSOLE ASSY., LH
SOL KONSOL MONTAJI, MS S ECO / CONSOLE ASSY., LI-I, M5 S ECO
BEKO LEWE MONTAJI, V-1 / BACKHOE CONTROL STICK ASSY., V-1

DiSLi POMPA MONTAJI / GEARED PUMP ASSY.
DiSLi POMPA KOMPLESi / GEARED PUMP COMPLETE
SRS MONTAJI, JOYSTiCK / SRS ASSY., JOYSTICK
SRS MONTAJI, LEVYELi / ASSY., CONTROL STICK
TOPLAYICI, GERi DÖNÜS, BYPASS HATTI MONTAJI, 2WS / COLLECTOR, FEEDBACK,
BYPASS FITTING ASSY., 2WS
TOPLAYICI, GERi DÖNÜS, BYPASS HATTI MONTAJI, 4WS / COLLECTOR, FEEDBACK,
BYPASS FITTING ASSY., 4WS
DENGE AYAK HORTUM MONTAJI / STABILIZER HOSE ASSY.
FREN MERKEZi MONTAJI / BRAKE UNIT ASSY.
FREN MERKEZi HiDROLiK MONTA”, 2WS, REXROTH / BRAKE UNIT HYDRAULIC
ASSY., 2WS, REXROTH
FREN MERKEZi HiDROLiK MONTAJI, 2WS / BRAKE UNIT HYDRAULIC ASSY., 2WS
FREN MERKEZi HiDROLiK MONTAJI, 2WS, LEWELi / BRAKE UNIT HYDRAULIC ASSY.,
2WS, CONTROL STICK
FREN MERKEZi HiD. MONTAJI, 2WS, LEVYELi, KAZAYAK / BRAKE UNIT HYD. ASSY.,
2WS, CONTROL STICK, CENTER MOUNT
FREN MERKEZi HiDROLiK MONTAJI, 4WS / BRAKE UNIT HYDRAULIC ASSY., 4WS
FREN MERKEZi HiDROLiK MONTAJI, 4WS, LEWELi / BRAKE UNIT HYDRAULIC ASSY.,
4WS, CONTROL STICK
SASi iqi TESiSAT / CHASSIS INTERIOR PIPING
ALTILI KUMANDA MONTAJI / 6-WAY VALVE ASSY.
