Description

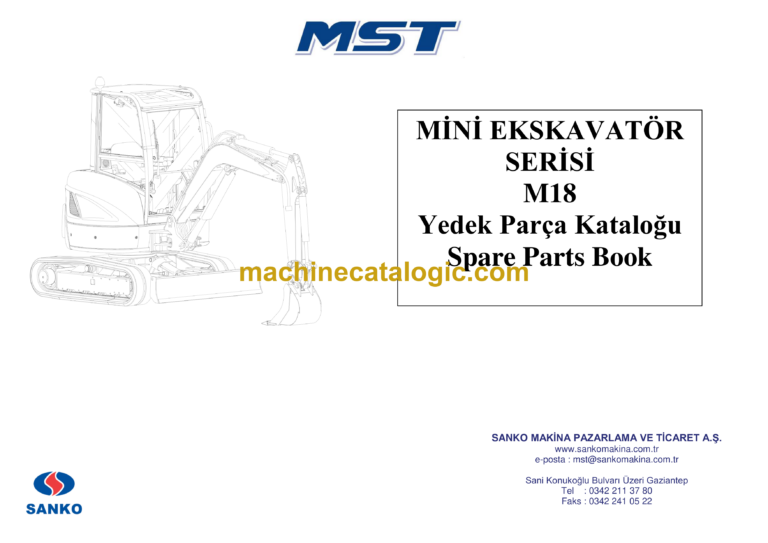

MST M18 Mini Excavator Spare Parts Catalogue (EN-TR)
MST M18 Mini Excavator Index:
01-01 / UNDERTRUCK 001 – 002
01-02 / BLADE – BEARING DISK 003 – 004
01-03 / BLADE – TRANSLATION OLEODYNAMIC SYSTEM 005 – 006
01-04 / UNDERTRUK: SYSTEM OLEODYN. BLADE – UNDERTRUCK 007 – 008

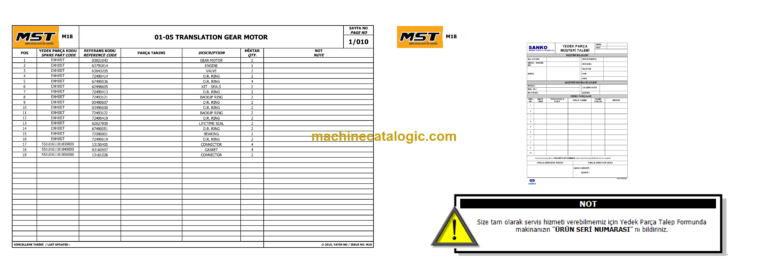

01-05 / TRANSLATION GEAR MOTOR 009 – 010
01-06 / TRACK STRETCHER 011 – 012
01-07 / ROTATING JOINT 013 – 014
02-01 / EVOLUTION FRAME 015 – 017
02-02 / FRAME – SWING MOTOR 018 – 019
02-03 / TANK SUCTION SYSTEM – DIESEL ANTIVIBRAT. DEVICES 020 – 021
02-04 / TRAVEL LEVERS 022 – 023
02-05 / PEDALS 024 – 025
02-06 / SWING MOTOR 026 – 027
03-01 / DIESEL ENGINE – SERVICE PUMP 028 – 029
03-02 / ENGINE SUPPORT – SERVICE PUMP COUPLER 030 – 031
M18
M18 YEDEK PARÇA KATALOĞU
(SPARE PART CATALOGUE)
TANIM / DESCRIPTION SAYFA NO / PAGE NUMBER 03-03 / FUEL PIPING
032 – 033 03-04 / DIESEL ENGINE SUCTION – EXHAUST
034 – 035 03-05 / DIESEL ENGINE RADIATOR
036 – 037 04-01 / ACCESSORY CONTROL VALVE
038 – 039 04-02 / ACCESSORY CONTROL VALVE: ELEMENTS
040 – 041 04-03 / ACCESSORY CONTROL VALVES FITTINGS
042 – 043 04-04 / ACCESSORY CONTROL VALVES MECHANICAL CONTROLS
044 – 045 04-05 / MECHANICAL CONTROLS – PEDALS
046 – 047 04-06 / RADIATOR UNLOADING HYDRAULIC SYSTEM
048 – 049 04-07 / OLEODYN. SYSTEM FOR SERVICE CONTROL VALVE PIPES – ROTATING
050 – 051 04-08 / SERVICE PUMP DELIVERY OLEODYNAMIC SYSTEM
052 – 053 04-09 / ARM PIPES OLEODYNAMIC SYSTEM – SWINGING
054 – 055 04-10 / MISCELLANEOUS PIPES OLEODYNAMIC SYSTEM
056 – 057 05-01 / LEFT MANIPULATOR
058 – 059 05-02 / RIGHT MANIPULATOR
060 – 061 05-03 / ENGINE STARTING ELECTRIC SYSTEM
062 – 063 05-04 / DASHBOARD – SERVICE ELECTRIC SYSTEM
064 – 065 05-05 / OIL TANK – RIGHT MANIPULATOR HOLDER

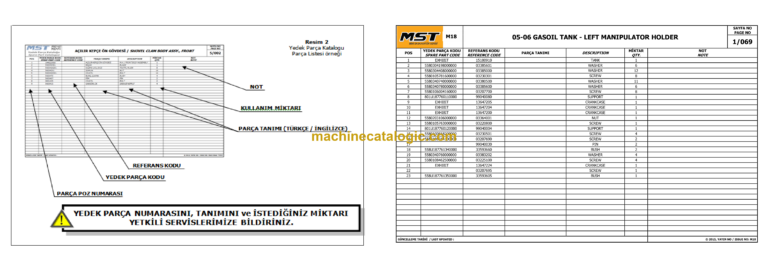

066 – 067 05-06 / GASOIL TANK – LEFT MANIPULATOR HOLDER
068 – 069 05-07 / ENGINE ACCELERATOR PEDAL – BLADE CONTROL
070 – 071 05-08 / LEFT MANIPULATOR HOLDER TILTING CONTROL
072 – 073 05-09 / OIL TANK TOOLS
074 – 075 05-10 / GASOIL TANK TOOLS

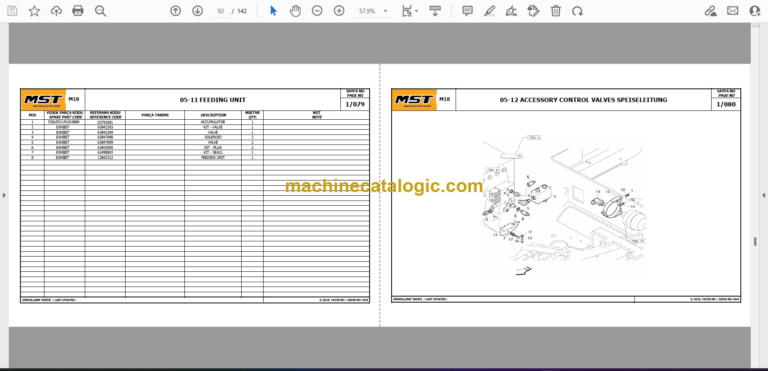

076 – 077 05-11 / FEEDING UNIT
078 – 079 05-12 / ACCESSORY CONTROL VALVES FEEDING UNIT
080 – 081 05-13 / RIGHT MANIPULATOR OLEODYNAMIC SYSTEM
082 – 083 05-14 / LEFT MANIPULATOR OLEODYNAMIC SYSTEM
084 – 085 05-15 / FEEDING OLEODYNAMIC SYSTEM
086 – 087 06-01 / FIRST ARM
088 – 089 06-02 / ARM SECOND – BUCKET
090 – 091
