TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual
TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual
TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual
TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual

TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual

Original price was: $ 40,00.Current price is: $ 30,00.

TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual

Format: PDF

Language: EN

Size: 25.79 MB

Pages: 1199

Speed Download Link

Category:

Description

TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual

What does this catalog contain?

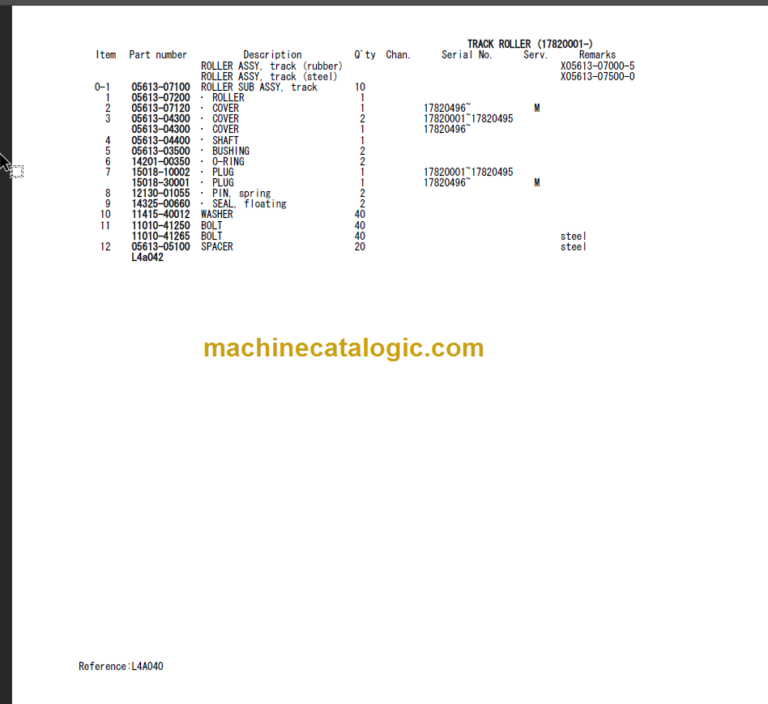

TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual contains high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your machine. This document is printable, without restrictions, contains searchable text and bookmarks for easy navigation.

TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual includes:

  • Numbered table of contents easy to use so that you can find the information you need fast.
  • Detailed sub-steps expand on repair procedure information.
  • Numbered instructions guide you through every repair procedure step by step.
  • Troubleshooting and electrical service procedures are combined with detailed wiring diagrams for ease of use.
  • Notes, cautions and warnings throughout each chapter pinpoint critical information.
  • Bold figure number help you quickly match illustrations with instructions.
  • Detailed illustrations, drawings and photos guide you through every procedure.
  • Enlarged inset helps you identify and examine parts in detail.

What will you get when you get this service catalog?

  • After payment has been received, a few minutes later.
  • Lifetime PDF and Access To Download (By Request).
  • Compatible With Windows, Mac, IOS, Android and Other Systems.
  • Searchable Text and Built-in Index For Instant Information Search Bookmarks.
  • Printable – Pages Or Entire Manual.

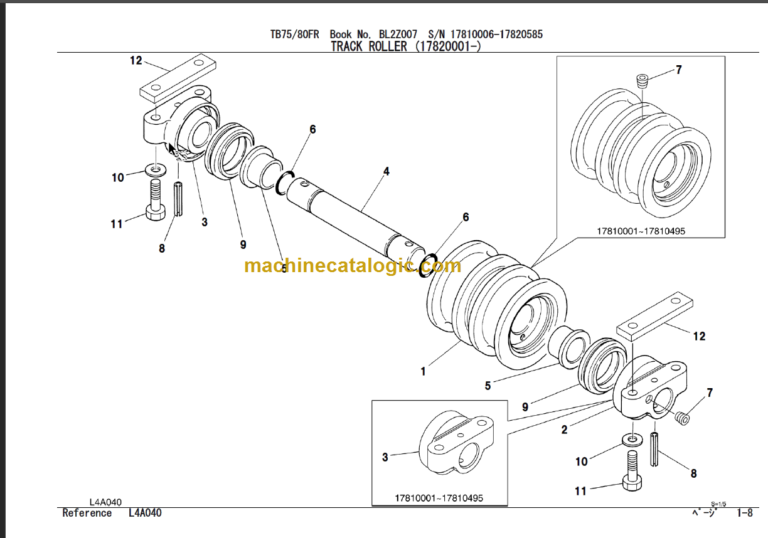

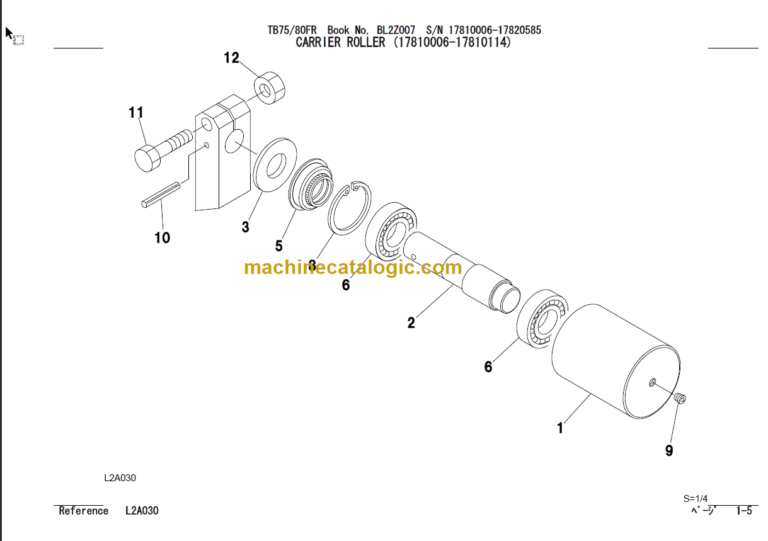

  • Zoomable – Detailed Exploded Diagrams, Picture.

TABLE OF CONTENT OF THE TAKEUCHI TB75FR-TB80FR Mini Excavator Parts Manual

ENGINE & ACCESSORIES (1/3) (17820256-) 3-7
ENGINE & ACCESSORIES (2/3) (17820256-) 3-8
ENGINE & ACCESSORIES (3/3) (17820256-17820456) 3-9
ENGINE & ACCESSORIES (3/3) (17820457-) 3-10
AIR CLEANER (for duoble element; 17820001-) 3-11
ALTERNATOR (17820001-17820255) 3-12
ALTERNATOR (17820256-) 3-13
DRAIN PLUG 3-14
CONTROL BOX (17810006-17810114) 3-15
CONTROL BOX (17820001-17820255) 3-16
CONTROL BOX (17820256-) 3-17
ENGINE CONTROL (17810006-17810114) 3-18
ENGINE CONTROL (17820001-) 3-19
ELECTRICAL (17810006-17810114) 3-20
ELECTRICAL (17820001-17820255) 3-21
ELECTRICAL (17820256-) 3-22
TRAVEL ALARM (17820001-) 3-23
BATTERY (17810006-17810114) 3-24
BATTERY (1782000117820237) 3-25
BATTERY (17820238-17820255) 3-26
BATTERY (17820256-) 3-27
BATTERY POLE (+) (for EC; 17820001-) 3-28
RADIO 3-29
WINDOW WASHER (17810006-17810105) 3-30
WINDOW WASHER (17810106-17810114, 17820001-) 3-31
VALVE & ACCESSORIES (17810006-17810114) 4-1
VALVE & ACCESSORIES (17820001-) 4-2
PIPING; UPPER (1/2) (17810006-17810114) 4-3
PIPING; UPPER (2/2) (17810006-17810114) 4-4
PIPING; UPPER (1/3) (17820001-17820255) 4-5
PIPING; UPPER (2/3) (17820001-17820255) 4-6
PIPING; UPPER (3/3) (with 2nd auxiliary line; 17820001-17820255) 4-7
PIPING; UPPER (1/3) (17820256-) 4-8
PIPING; UPPER (2/3) (17820256-) 4-9
PIPING; UPPER (3/3) (with 2nd auxiliary line; 17820256-) 4-10
PIPING; UPPER (for adding drain piping for slew motor) 4-11
ACCUMLATOR (17820001-) 4-12
EMERGENCY SHUT-OFF VALVE (17810006-17810114) 4-13
EMERGENCY SHUT-OFF VALVE (17820001-) 4-14
BOOM EMERGENCY SHUT-OFF VALVE (pilot pressure type) 4-15
ARM EMERGENCY SHUT-OFF VALVE (pilot pressure type) 4-16
PUMP DRIVE (17810006-17810114) 4-17
PUMP DRIVE (17820001-) 4-18
HYDRAULIC TANK 4-19
FUEL TANK & FUEL PIPING (17810006-17810114) 4-20
FUEL TANK & FUEL PIPING (17820001-17820255) 4-21
FUEL TANK & FUEL PIPING (17820256-) 4-22
FUEL SUPPLY PUMP (17820001-) 4-23
COVER (1/4) (17810006-17810114) 5-1
COVER (1/4) (17820001-17820255) 5-2
COVER (2/4) (engine hood; 17810006-17810098, 17820001-17820255) 5-3
COVER (2/4) (engine hood; 17810099-17810114) 5-4
COVER (3/4) (side cover; 17810006-17810114) 5-5
COVER (3/4) (side cover; 17820001-17820255) 5-6
COVER (4/4) (center cover; 17810006-17810114) 5-7
COVER (4/4) (center cover; 17820001-17820255) 5-8
COVER (1/4) (17820256-) 5-9
COVER (2/4) (engine hood; 17820256-) 5-10

COVER (3/4) (side cover; 17820256-) 5-11
COVER (4/4) (center cover; 17820256-) 5-12
FLOOR FRAME (1/2) (17810006-17810114) 5-13
FLOOR FRAME (2/2) (17810006-17810114) 5-14
FLOOR FRAME (1/2) (17820001-) 5-15
FLOOR FRAME (2/2) (17820001-) 5-16
SEAT (1/2) (17810006-17810114) 5-17
SEAT (1/2) (17820001-) 5-18
SEAT (2/2) 5-19
CAB MOUNT (17810006-17810114) 5-20
CAB MOUNT (17820001-17820255) 5-21
CAB MOUNT (17820256-) 5-22
