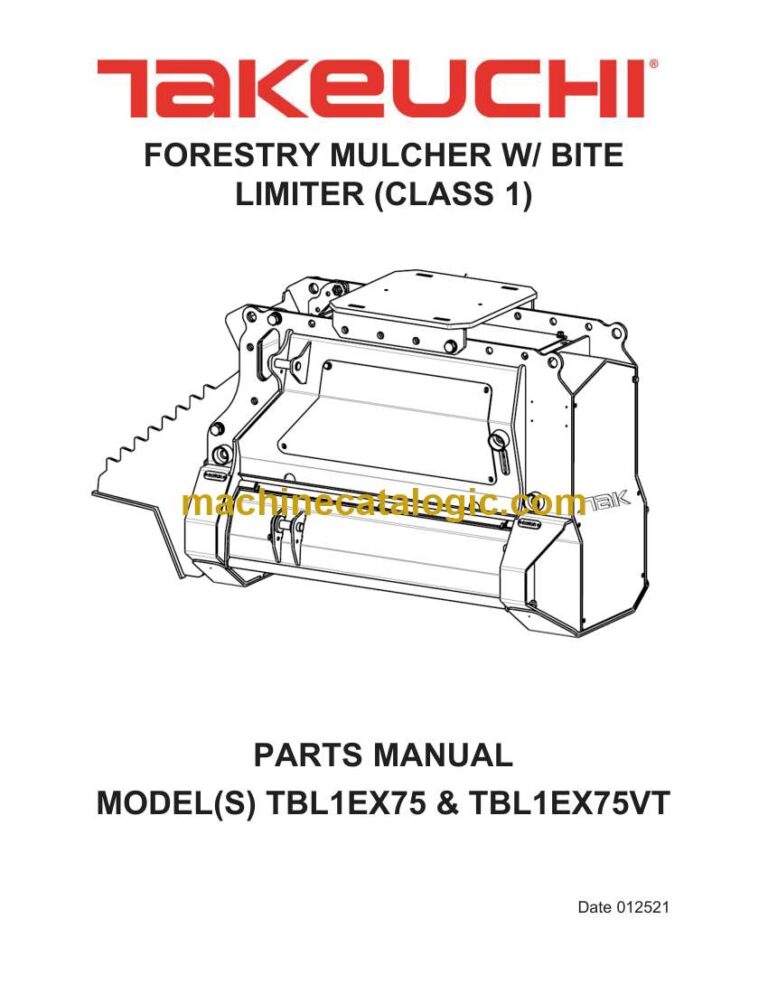

Takeuchi TBL1EX75, TBL1EX75VT Forestry Mulcher Parts Manual

Out in the woods or on a rough jobsite, this mulcher’s chewing stumps, brush, and whatever else you feed it, usually hooked to a compact track loader or similar carrier. This parts manual helps you trace every component in the frame, transmission, and rotor so you can order the right bits the first time. Picture this: you’re halfway through a rotor teardown, you’ve got three different snap rings on the bench, and you can’t tell which one actually belongs on that bearing shoulder—this is where the breakdowns and part-number logic save your afternoon.

Applications & Use Cases

• Track down a leaking seal by following the exploded view, then verify the exact seal and O-ring part numbers before you call the dealer.
• Isolate which tooth holder and hardware your rotor uses so you don’t end up with a box of almost-right teeth.
• Check how sub-assemblies stack—spacers, shims, snap rings—so you can reassemble the transmission and keep endplay where it should be.
• Inspect the frame and rotor support diagrams to see what you bent, then decide if you’re swapping just a bracket or the whole assembly.
• Route hoses and guards correctly after a repair by comparing your machine to the illustrated assemblies.

FAQ

Q: Is this a searchable PDF or just scanned pages?

A: It’s typically a PDF you can search by part name or number, so you won’t be scrolling forever.

Q: Can I print just the sections I need for the shop?

A: Yeah, you can usually print specific pages, toss them on the bench, and not worry about trashing your laptop in the dust and oil.

Safety Note

Always bleed off hydraulic pressure and secure the head before you start pulling hoses or cracking lines on this mulcher.

Takeuchi TBL1EX75, TBL1EX75VT Forestry Mulcher Index:

FRAME (TBL1EX) 1
TRANSMISSION (TBL1EX) 5
ROTOR WITH TEETH (BITE LIMITER)(TBL1EX) 8
ROTOR SUPPORT (TBL1EX) 10
ROTOR SUPPORT (HOLED)(TBL1EX) 12
EXTENSION SHAFT (TBL1EX) 14
HOSE KIT (FOR MOTOR) (TBL1EX) 16
HYDRAULIC DRIVE (FOR FRONT HOOD W/ HOSES)(TBL1EX) 18
HYDRAULIC DRIVE (FOR FRONT HOOD W/DIVERTER VALVE)(TBL1EX) 20
