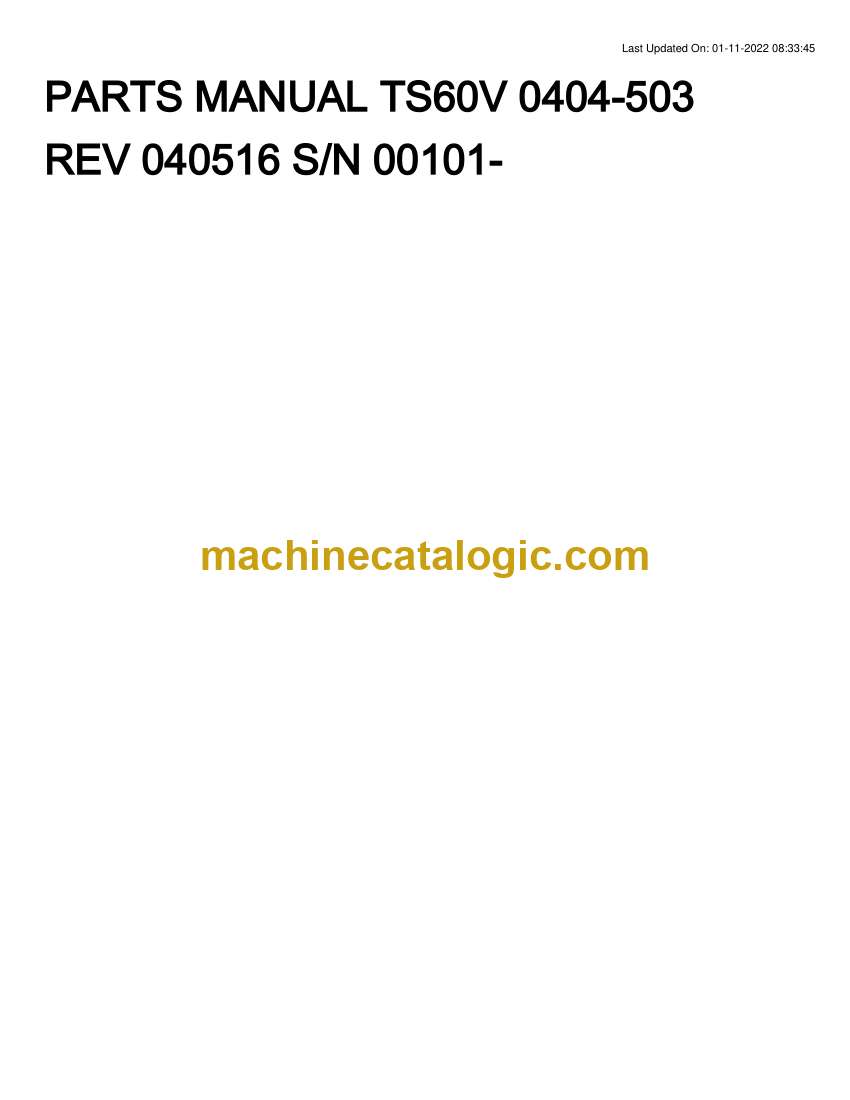

Takeuchi TS60V Skid Steer Parts Manual (0404-503) (REV 040516 SN 00101-)

A TS60V skid steer usually lives a hard life—muddy jobsites, tight barn aisles, snow in the bucket, brush in the radiator. This parts manual doesn’t teach you how to wrench, it helps you trace every nut, pin, and snap ring in the machine so you order the right stuff the first time. Say you’re into the final drive, bearings on the bench, and you’ve got two similar snap rings in a coffee can; this book lets you isolate which one actually belongs on that shaft, and which seal you just tore pulling it apart.

Applications & Use Cases

• Track down the exact part number by tracing assemblies from the mainframe down to the smallest washer so you don’t guess at the counter.
• Verify what changed between early and later machines by inspecting the breakdowns and matching them to your serial number range.
• Isolate left vs right, front vs rear components when routing hoses or swapping drive motors so you don’t cross lines or flip fittings.
• Check how sub-assemblies stack—shims, spacers, snap rings—before you reassemble, so you can test fit once instead of three times.
• Plan a repair by printing just the pages you need and laying them on the bench to align parts as they come off the machine.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

A: Yes, it’s typically a searchable PDF, so you can jump to sections by keyword instead of flipping through every page.

Q: Can I print pages and use them in the shop without ruining the whole manual?

A: You can print single sections, stick them in sleeves, get them greasy, and reprint as needed while keeping the original file clean.

Safety Note

Always bleed off hydraulic pressure and verify the loader arms are securely supported before you inspect or remove any components under the boom.

Takeuchi TS60V Skid Steer Index:

• UNDERCARRIAGE 52
• FINAL DRIVE ASSEMBLY, RT 53
• FINAL DRIVE ASSEMBLY, LT 56
• MAINFRAME 58
• CHASSIS ASSEMBLY 59
• HOOD ASSEMBLY 64
• CAB/HEATING/AIR CONDITIONING 66
• R.O.P.S (CAB) ASSEMBLY 67
• R.O.P.S (CAB) INTERIOR 72
• HEADLINER/DASH PANEL 75
• DOOR/WINDOWS 80
• WINSHIELD WIPER 84
• CAB HEATER 86
• AIR CONDITIONING/HEATING 88
• AIR CONDITIONING/HEATING UNIT 92
• WORKING EQUIPMENT 94
