Takeuchi TW60 Wheel Loader Parts Manual (8017235) (06-21-13 SN E106776)

A TW60 wheel loader usually lives in the dirt—yard work, small quarries, farm lots, snow, tight construction sites. This parts manual helps you trace every assembly on the machine down to the last washer so you can order the right stuff once, not three times. Say you’ve got the front end apart chasing a sloppy quick coupler; this lets you isolate the exact bushings, pins, and snap rings instead of guessing off a blurry photo online.

Applications & Use Cases

• Track how the loader breaks down: bucket, lifting unit, steering, hydraulics, and drive, so you can inspect each system and plan repairs.

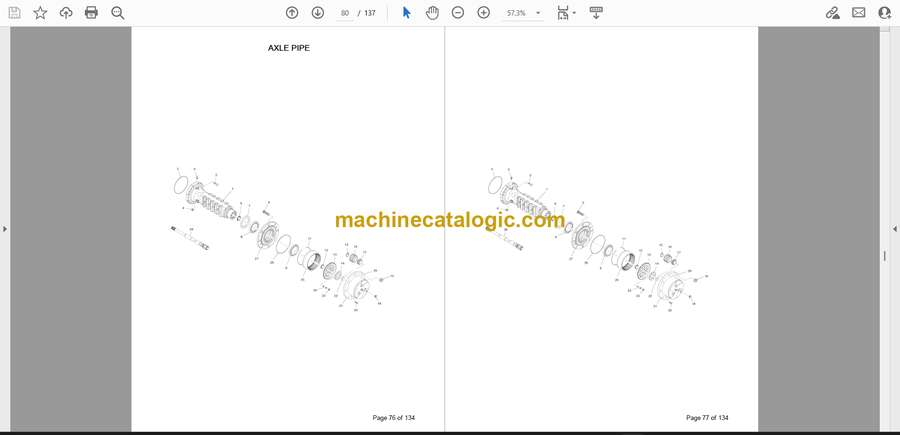

• Match exploded views to what’s in front of you while you tear down the boom or axle, then verify which seals and bearings you’ll need before you start.
• Use the part-number logic to see which sub-components repeat across assemblies, so you don’t over-order or miss common wear items.
• When a hose blows, route the new line correctly by tracing it in the hydraulic section and checking every fitting and clamp.
• After damage, test-fit your shopping list against the manual to make sure snap rings, shims, and spacers all align with your serial range.

FAQ

Q: Is this a searchable PDF or just page images?

A: It’s typically a standard PDF you can search by part name or number, which makes tracing assemblies a lot quicker.

Q: Can I print just a few sections to take to the jobsite?

A: Yeah, you can usually print specific pages, toss them in a sleeve, and not worry about wrecking your laptop in the mud.

Safety Note

Always bleed off hydraulic pressure and secure any raised attachment before you inspect or remove components shown in the manual.
