Description

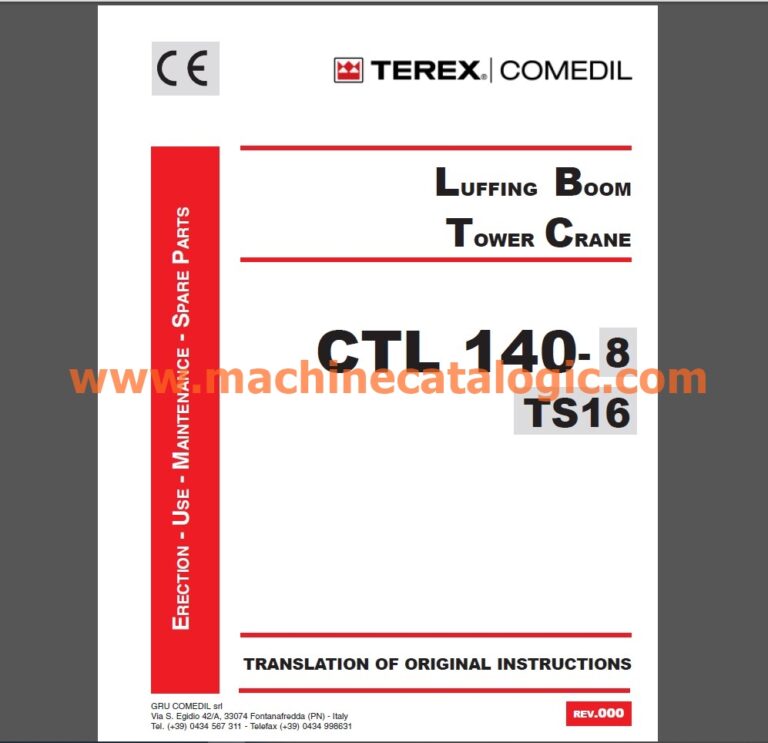

Terex CTL 140-8 TS16 Luffing Boom Tower Crane Full PDF Manual (Erection, Use, Maintenance, Spare Parts)

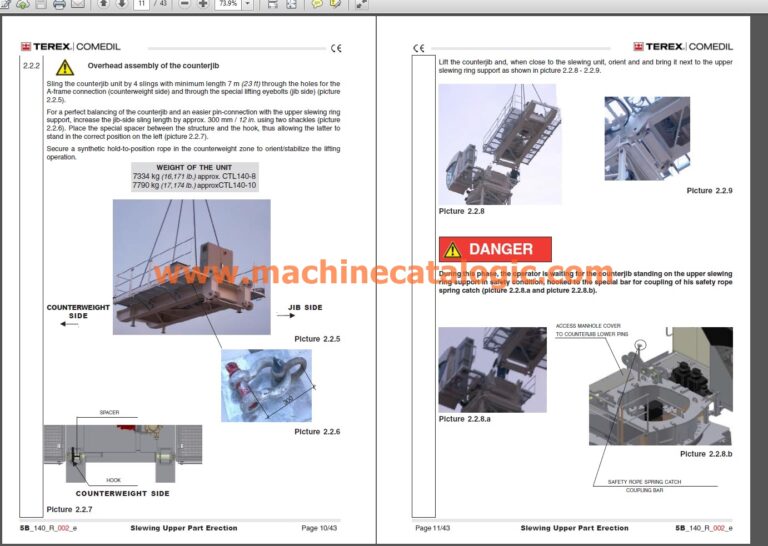

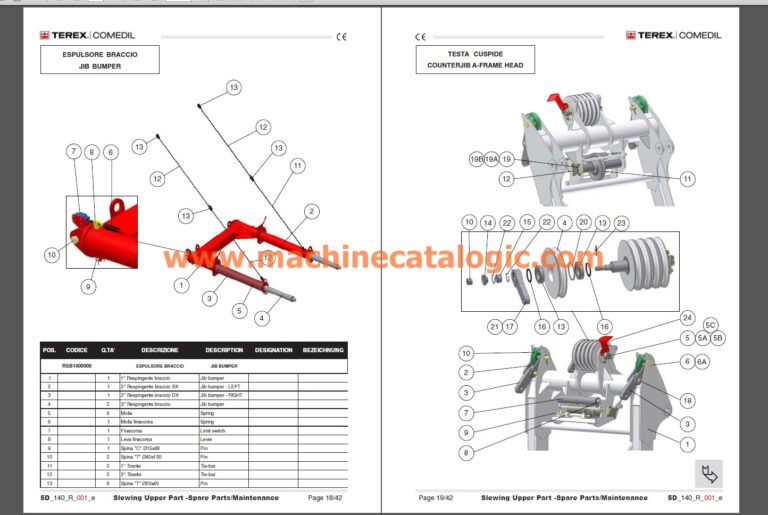

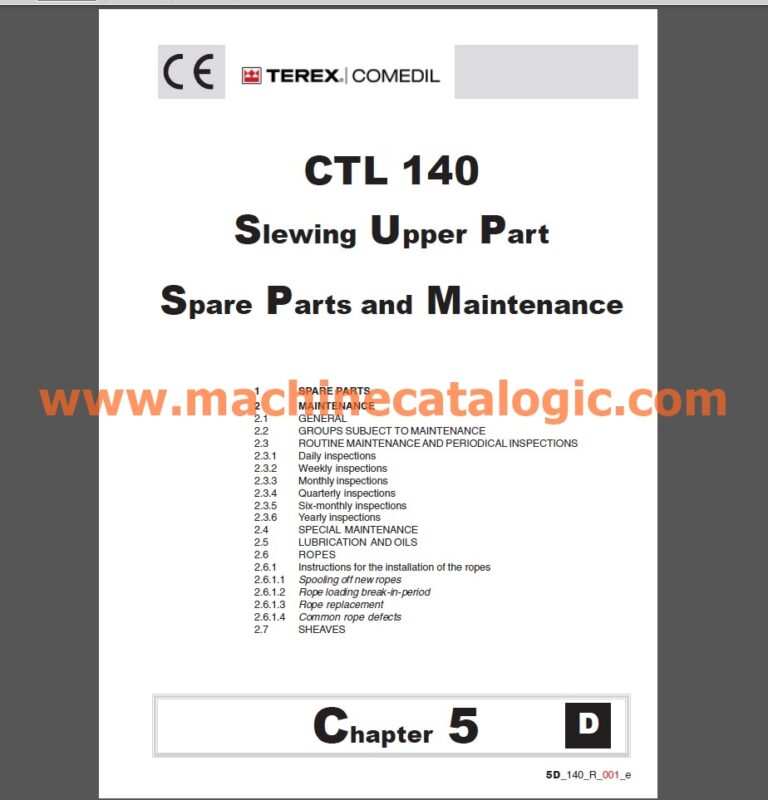

Terex CTL140-8 TS16 Tower Crane Service & Parts Information PDF Manual Content
Cover C_140-8_TS16_000_e
Index I_140-8_TS16_000_e
Chapter 1 General information 1_140_R_002_e
Chapter 2 Technical specifications 2_140-8_R_000_e
Chapter 3 Preparation of the job site C3_140_000_e
3.A – General information 03A_5_004_e
3.B – Counterweights 3B_140_R_000_e
3.C – Installations FP-T
3.D – Installation -R- 3D_140_TS16_000_e
Chapter 4 Tower C4_000_e
4.A – Dimensions and weights 04A_TS16_001_e
4.B – Erection 04B_TS16_003_e
4.C – Electrical equipment location 4C_5_003_e
4.D – Spare parts and maintenance 04D_TS16_003_e
Chapter 5 Slewing Upper part C5_000_e
5.A – Dimensions and weights 5A_140_R_001_e
5.B – Erection 5B_140_R_002_e
5.C – Electrical equipment location 5C_180-140_R_001_e
5.D – Spare parts and maintenance 5D_140_R_001_e
Chapter 6 Control stations 6_180-140_R_002_e
Chapter 7 Limiting devices adjustment 7_180-140_R_003_e
Chapter 8 General maintenance 8_180-140_R_003_e
Chapter 9 Hoisting drive unit 9_37AFC40 R00-R01_VECTOR_R_001_e
Chapter 10 Trolley drive unit
Chapter 11 Boom luffing drive unit 11_LFC 37 R00_VECTOR_R_002_e
Chapter 12 Travelling drive unit 12_TAD 2RG 4M3-4M4_003_e
Chapter 13 Slewing drive unit 13_SCC 2 2 100S_R_002_e
TS16 Top climbing system Technical documentation available separately
Integrated Control System – ICS Technical documentation available separately
TS16 Bottom climbing system Technical documentation available separately
