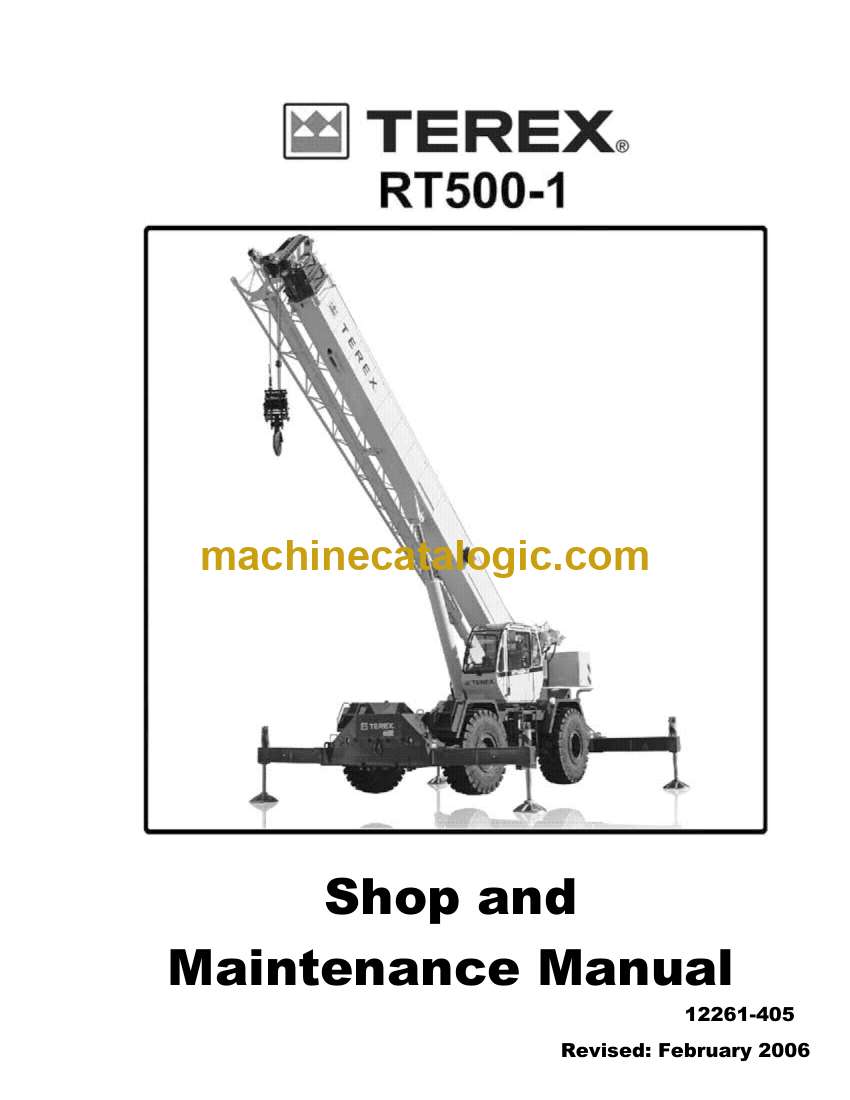

Terex RT500-1 Rough Terrain Crane Shop and Maintenance Manual (12261-405)

This combined Shop and Maintenance Manual for the Terex RT500-1 blends technical teardown detail with practical daily service routines. It maps out lubrication schedules, wear indicators, hydraulic flow behavior, and fault tracing sequences. The manual is especially useful for operators who need both big-picture crane behavior and deep mechanical insights in one place.

Applications & Use Cases

• Setting up maintenance intervals for high-lift cycles

• Identifying wear on outriggers, brake systems, and rotation assemblies

• Resolving slow boom extension or drift issues

• Ordering correct replacement components using OEM references

FAQ
Does it include maintenance charts?
Yes, fully detailed with intervals and inspection points.

Is it suitable for field service technicians?
Yes. It covers fast diagnostics and common problem patterns.

Safety Note
Do not work beneath the crane unless outriggers are locked, grounded, and hydraulics depressurized.
