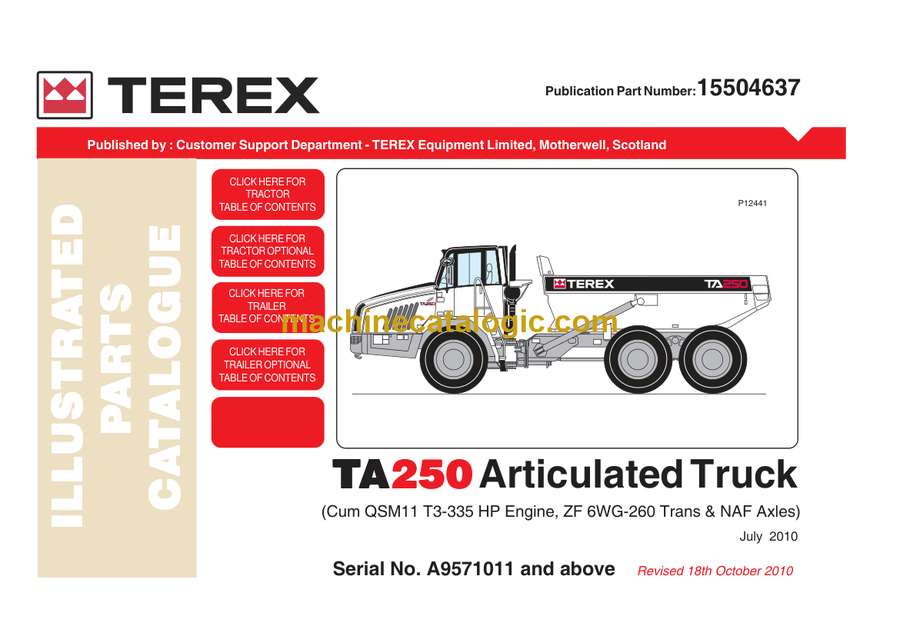

Terex TA250 Articulated Truck Parts Catalog

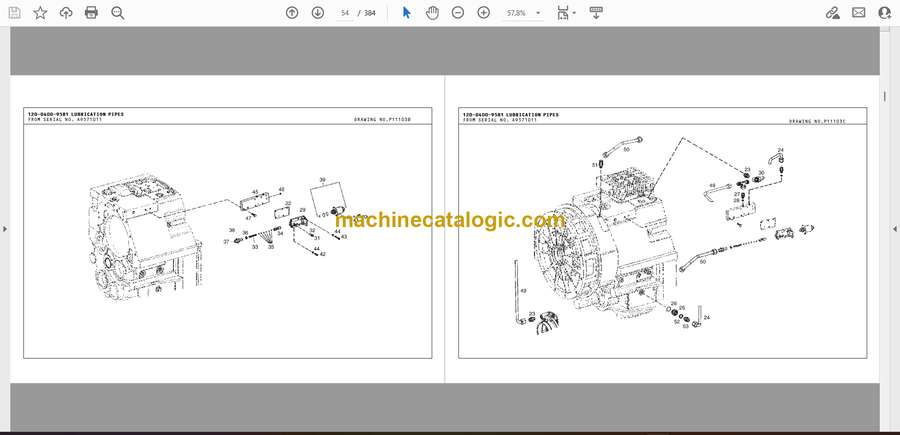

The Terex TA250 Articulated Truck is engineered for hauling large loads over unpredictable terrain. This Parts Catalog organizes every key assembly: articulation joints, axle systems, hydraulic dump circuits, steering components, driveline sections, and chassis frame elements. Each illustrated diagram provides exact OEM part references, allowing technicians to quickly identify wear items and maintain parts accuracy across a fleet.

Applications & Use Cases

• Ordering articulation joint pins, bushings, and seals

• Identifying hydraulic hoses and dump cylinder components

• Locating axle, hub, and suspension parts

• Managing wear items for high-duty hauling routes

• Standardizing parts inventory for fleet operations

FAQ
Does it include articulation system diagrams?
Yes, complete with pivot orientation and load path structure.

Does it show updated part numbers?
Yes. Superseded references are included where applicable.

Safety Note
Always lock the dump body and secure wheel chocks before servicing the underside of the truck.

Terex TA250 Articulated Truck Index:

CHASSIS
ENGINE
TRANSMISSION
DRIVELINE
FRONT AXLE
BRAKE PARTS
SUSPENSION SYSTEM
ELECTRICAL SYSTEM
FUEL SYSTEM
COOLING SYSTEM
MAIN HYDRAULIC VALVE
STEERING SYSTEM
BODY HOIST SYSTEM
BRAKING SYSTEM
CAB
DECALS
MISCELLANEOUS
