Wabco Truck ABS D Version ECU Service Manual

Wabco's Truck ABS D Version ECU is the electronic control unit that runs the anti-lock braking system on a heavy truck. It reads the wheel sensors and works the ABS valve packages to keep wheels from locking under braking. A technician opens the service manual when the ABS lamp is lit, a sensor or valve needs replacing, or a truck came in with no paperwork and has to be diagnosed. The cover may carry the older name Meritor, so don't let the logo throw you.

What this manual helps you do

• Diagnose faults with blink codes, then follow the troubleshooting and repair steps for each code.
• Verify J1922 or J1939 datalink communication when the ECU isn't talking to the rest of the truck.
• Adjust ABS sensors and check the tire size range setting.
• Check valves with the valve tests, and run component tests with the MPSI Pro-Link 9000.
• Replace a front or rear ABS valve package, including the ATC valve on the rear package.

Who this is for

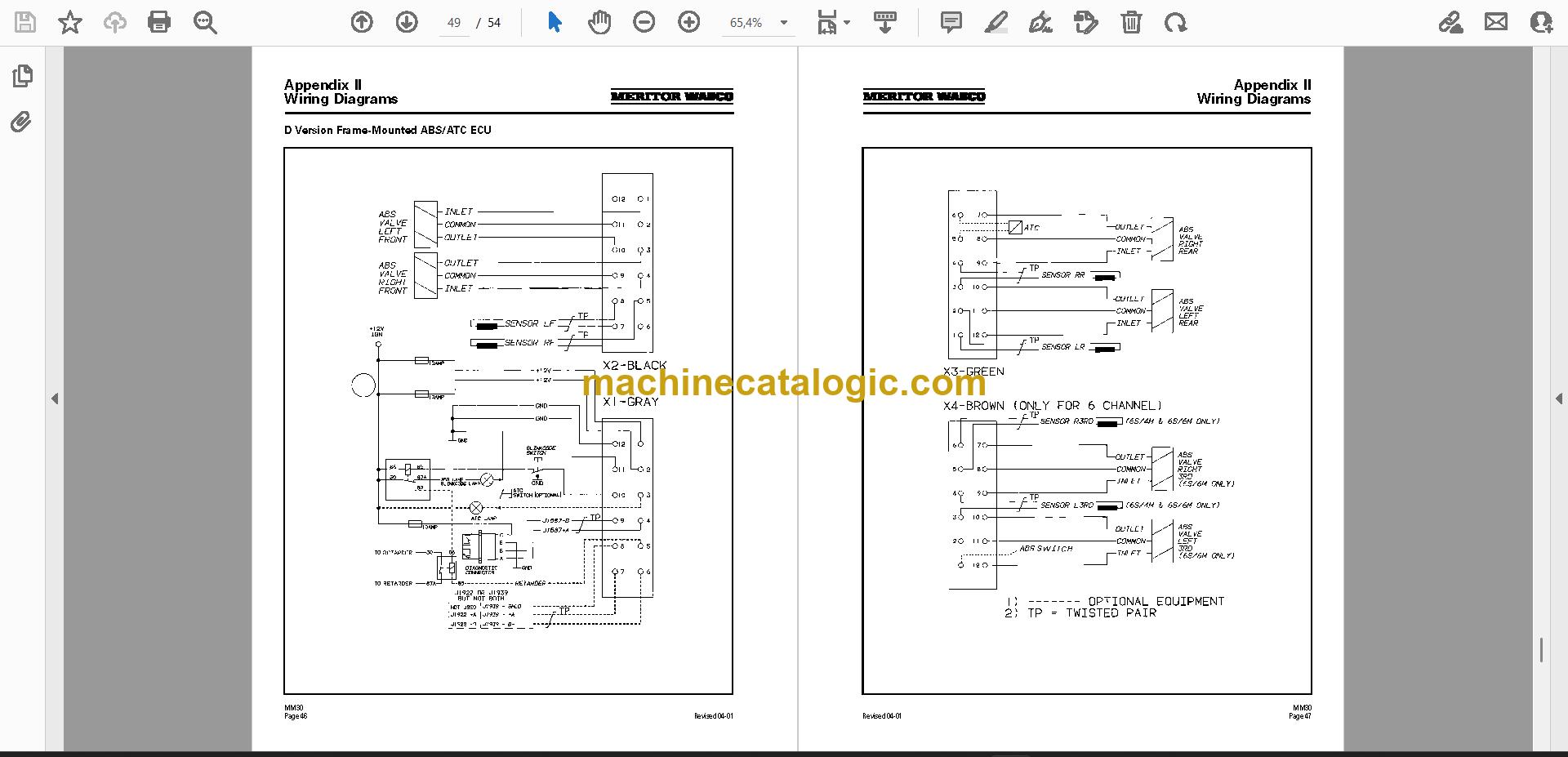

Fleet maintenance staff, independent repair shops and dealer technicians who work on truck ABS in-house. It also suits a plant maintenance mechanic who has inherited a unit and needs wiring diagrams and configuration layouts.

FAQ

Q: What do I receive and how is it organised?

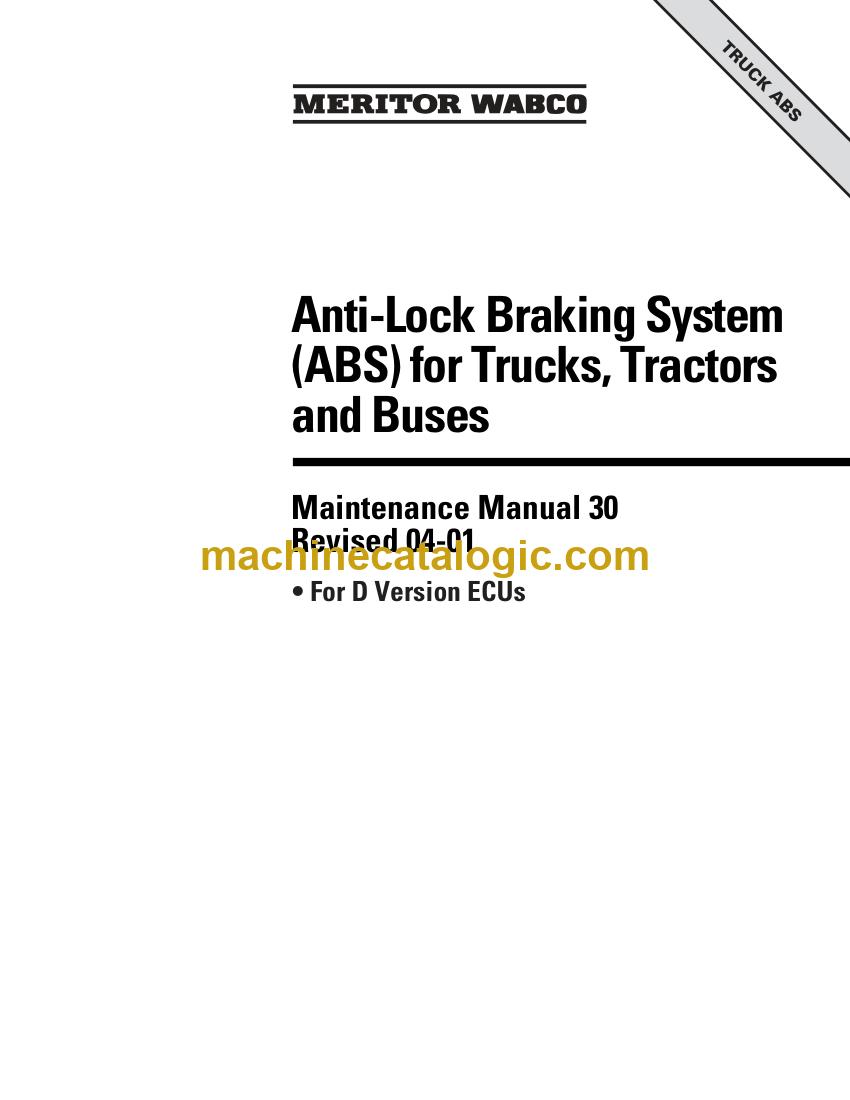

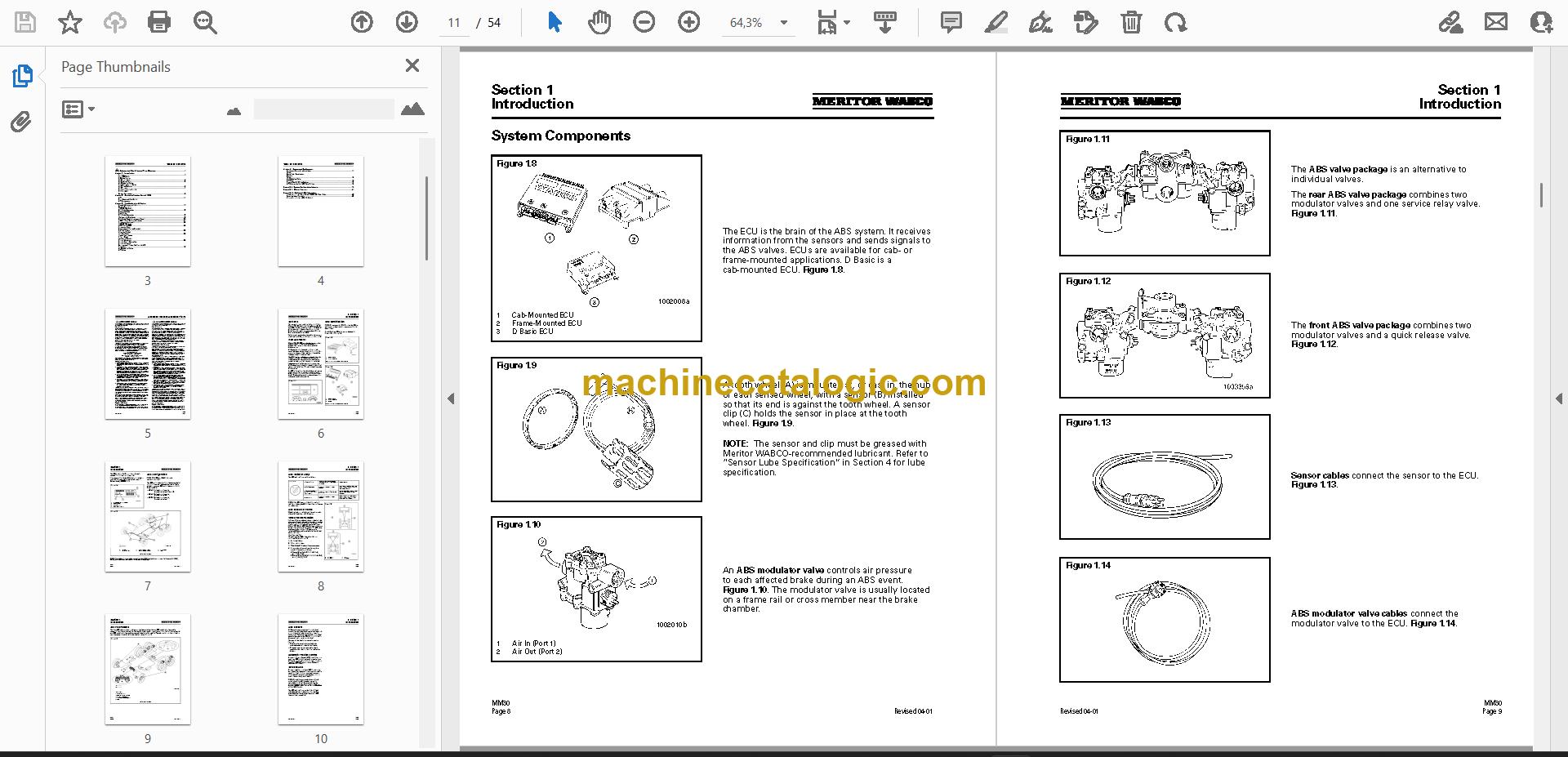

A: You get one English PDF of 54 pages, publication number MM30, titled Truck ABS Maintenance Manual 30. It is the complete manual, and the text can be searched and copied. Sections run from system components and blink codes through tests, removal and installation, and two appendices.

Q: Which component does it fit?

A: It is written for the Wabco Truck ABS D Version ECU and the ABS valve packages and sensors around it. There's a Meritor WABCO ABS valve package troubleshooting guide inside.

Q: How does it fit the job I'm doing?

A: If you're chasing a fault, start at the blink code diagnostics and work through the repair steps. If you're swapping parts or changing the setup, go to component removal and installation and the reconfiguration procedure.

Pull the lamp on, read the codes, and work the fault through to a repaired truck with the procedures and wiring diagrams in one file.
