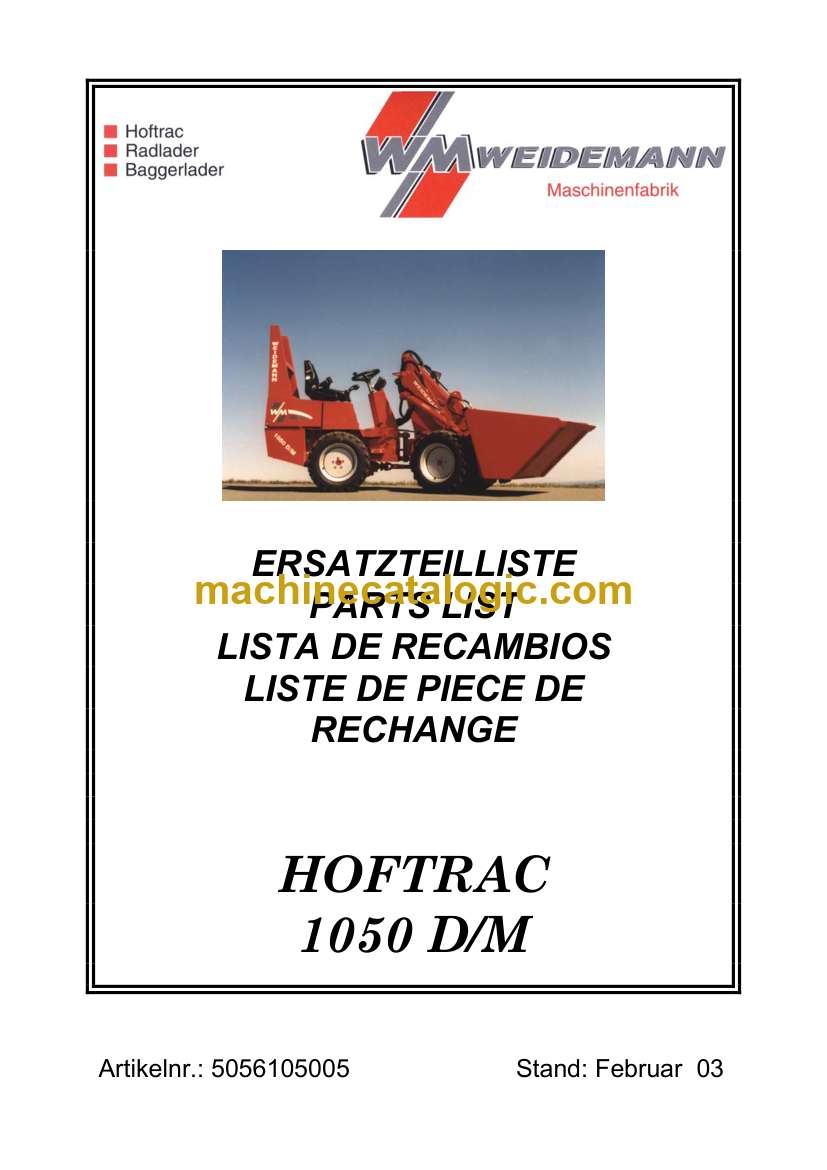

Weidemann 1050 D-M Wheel Loader Parts Catalog (5056105005)

Running a Weidemann 1050 D/M wheel loader around barns, yards, or tight construction sites, this parts catalog is what I’d keep open when something’s bent, leaking, or worn out. It helps you trace every component in the loader—bucket linkage, steering, axles, hydraulics—so you can match what’s on the machine to the correct replacement part. If, for example, you’ve got play in the quick-attach or a hydraulic seep at a cylinder, this book lets you pinpoint the right pins, bushings, seals, and hardware instead of guessing.

Applications & Use Cases

• Identify the exact revision of arms, linkages, or brackets before ordering, so parts fit first time.
• Use exploded views to see how components stack—washers, shims, O-rings—so nothing is missed on reassembly.
• Confirm seal kits and small hardware when rebuilding cylinders or valve blocks.
• Trace hose routing and fittings to isolate which hose or adapter you actually need.
• Cross-check part numbers when a previous owner has modified or partially updated the machine.

FAQ

Q: Can I use this catalog on a tablet in the workshop?

A: Yes, it’s practical to zoom in on diagrams on a tablet, which helps read small callouts near tight assemblies.

Q: Is it worth printing pages from this manual?

A: Printing the specific assemblies you’re working on is handy; you can mark them up with notes and keep them next to the machine.

Safety Note

Always isolate the machine, relieve hydraulic pressure, and secure raised components before using this catalog to guide any disassembly.

Weidemann 1050 D-M Wheel Loader Index:

página
Benennung parts name designation
Wichtige Hinweise Important Notices Notices Importantes Observaciones Importantes
10-11 Filtersatz filter set Jeu de filtres Juego del filtros
1 12-17 Chassis Chassis Chassis Chasis
2 18-19 Mittelgelenk Central joint Pivot Centrale Rótula central
3 20-27 Haube und Trittplatte Bonnet, running board Bonnet, planche de Capot, estribo
28-29 Dämmatten Insulating material Materiel isolant
marchepied
Material de insonorizacion
4 30-33 Schwinge MV Loading arm MV Bras chargeur MV Brazo de cargo MV
34-37 Schwinge HV Loading arm HV Bras chargeur HV Brazo de carga HV
5 38-47 Motor engine moteur motor
48-49 Gasbetätigung accelerator accelérateur acelerador
50-51 Inchbetätigung inch control commande inch actividad inch
6 52-57 Kraftstoffanlage Fuel system Systeme de combustible Dépositó de carburante
7 58-63 Elektrische Anlage Electric System Système électrique Sistema eléctrica
64-67 Armaturenkasten Instrument box Boite des instrumentes Caja de instrumentos
68 Stromlaufplan Electrical wiring diagramme Schéme de couplage
électrique
Diagrama de circuito eléctrico

69 Hydrauliklaufplan Hydraulic wiring diagramme Schéme de couplage hydr. Diagrama de circuito hidráulico
8 70-73 Verstellpumpe Variable displacement pump Pompe à débit variable Bomba de caudal variable
8 74-81 Fahrhydraulik Driving hydraulic Transmission hydraul. Transmission hidráulica
9 82-89 Lenkanlage Steering system Système de direction Sistema de conducción
10 90-97 Hydraulikanlage DN 8 MV Hydraulic System DN 8 MV Système hydraulique Sistema hidráulica DN 8 MV
98-109 Hydraulikanlage DN 8 HV Hydraulic System DN 8 HV Système hydraulique Sistema hidráulica DN 8 HV
110-119 Hydraulikanlage DN 10 MV Hydraulic System DN 10 MV Système hydraulique Sistema hidráulica DN 10 MV
120-131 Hydraulikanlage DN 10 HV Hydraulic System DN 10 HV Système hydraulique Sistema hidráulica DN 10 HV
11 132-135 Kreuzsteuerventil Cross steering valve distributeur hydraul. válvula de mando en cruz
12 136-139 Bremsanlage Brake system Système des freins Sistema de frenos
140-145 Vorderachse Front axle Essieu avant Eje delantera
13 146-151 Achsantrieb hinten Rear gear box Boite de vitesse ar. Caja de cambios tras.

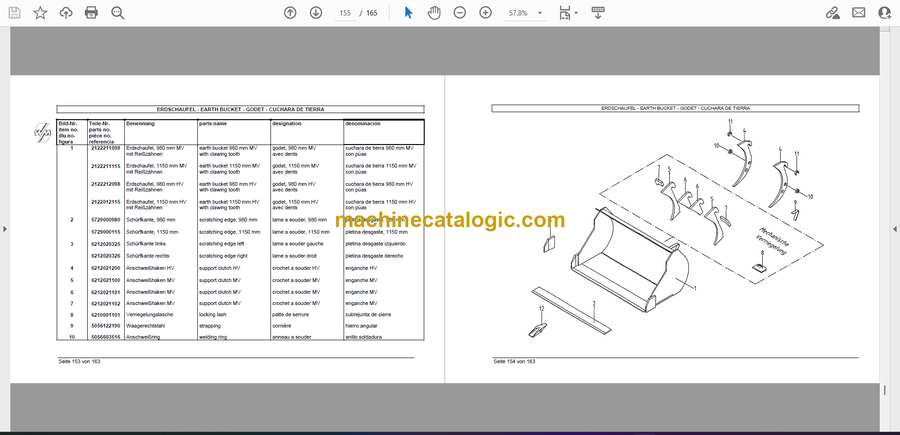

14 152-155 Erdschaufel Bucket earth Godet Cuchara de tierra
156-161 Krokodilgebiß Crocodile teeth Fourche crocodile Pinza crocodilo
162-163 Palettengabel Pallet forks Palettiseur Horquillas de palet
