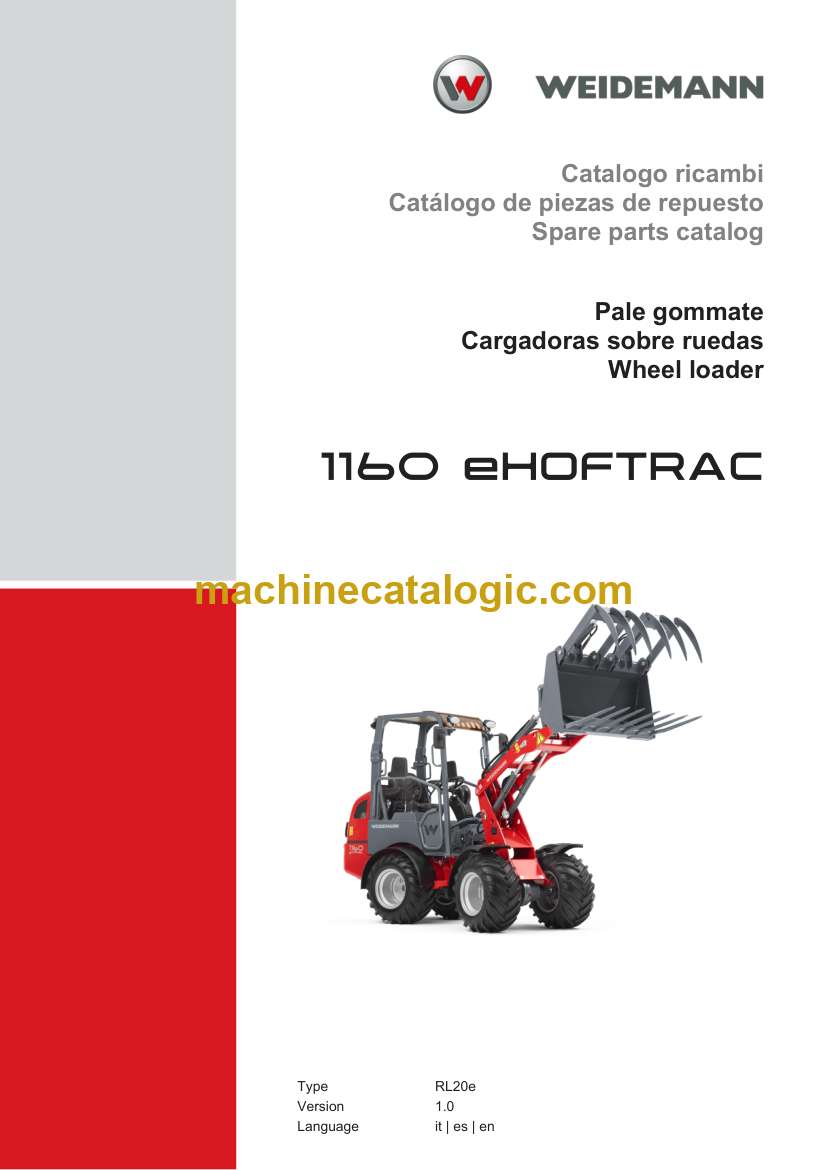

Weidemann 1160 eHOFTRAC Wheel Loader Spare Parts Catalog

Format: PDF (Printable Document)

File Language: it, es, en

File Pages: 416

File Size: 14.99 MB (Speed Download Link)

Brand: Weidemann

Model: 1160 eHOFTRAC Wheel Loader

Book No: RL20e

Type of Document: Spare Parts Catalog

Categories: PDF, Weidemann

$ 45

Weidemann 1160 eHOFTRAC Wheel Loader Spare Parts Catalog

Weidemann 1160 eHOFTRAC Wheel Loader Spare Parts Catalog (RL20e) (it, es, en)

The 1160 eHOFTRAC is a compact electric wheel loader that spends its life in barns, yards, and tight indoor spaces where emissions and noise matter. This parts catalog is what I’d keep open when I’m rebuilding an axle, chasing a hydraulic leak, or swapping a damaged boom pin and I need to be sure I’m ordering the exact right bits. For example, if a loader arm cylinder starts weeping, I’d use this book to trace the cylinder assembly, confirm the correct seal kit and retaining hardware, and avoid mixing up early and later revisions.

Applications & Use Cases

Identify correct assemblies when stripping the front loader frame, so every pin, shim, and bushing goes back in the right place.
Verify seal and O-ring placement on hydraulic lines and valves to stop repeat leaks after a repair.
Distinguish part revisions on the electric drive and control components, reducing the chance of ordering outdated versions.
Confirm hardware sizes and locations before reassembling linkages, preventing missing or mismatched bolts and washers.
Plan service kits by cross-checking wear parts you’ll likely need during a scheduled shutdown.

FAQ

Q: Can I use this catalog on a tablet in the workshop?

A: Yes, it’s practical to zoom into the exploded views on a tablet to trace parts, then screenshot or note numbers before ordering.

Q: Is it still worth printing pages from this catalog?

A: Definitely; many techs print the relevant views and keep them next to the machine to mark part numbers and notes during teardown.

Safety Note

Always isolate power and secure all raised components before inspecting or matching parts on the machine.

📘 Show Index

Weidemann 1160 eHOFTRAC Wheel Loader Index:

INDICE DEI CONTENUTI ÍNDICE CONTENTS
1 SERVICE KIT KIT DE SERVICIO SERVICE KIT
- 1.1 GRUPPO DI MANUTENZIONI JUEGO MANTENIMIENTO MAINTENANCE KIT
- 1.2 LUBRIFICAZIONE LUBRICACIÓN LUBRICATION
- 1.3 TAPPO TAPÓN DE CIERRE LOCK PLUG
2 COMPONENTI PER BATTERIE COMPONENTES DE LA BATERÍA BATTERY ATTACHMENTS
- 2.1 S. BATTERIA (<Serial No.: 3042012 Batterie 240Ah) SOPORTE BATERÍA (<Serial No.: 3042012 Batterie 240Ah) BRACKET BATTERY (<Serial No.: 3042012 Batterie 240Ah)
- 2.2 S. BATTERIA (<Serial No.: 3042012 Batterie 300Ah) SOPORTE BATERÍA (<Serial No.: 3042012 Batterie 300Ah) BRACKET BATTERY (<Serial No.: 3042012 Batterie 300Ah)
- 2.3 S. BATTERIA (>Serial No.: 3042013 Batterie AGM) SOPORTE BATERÍA (>Serial No.: 3042013 Batterie AGM) BRACKET BATTERY (>Serial No.: 3042013 Batterie AGM)
- 2.4 UNITÀ DI CARICO (Ladegerät IEB660) UNIDAD DE CARGA (Ladegerät IEB660) CHARGING UNIT (Ladegerät IEB660)
- 2.5 SISTEMA DI RICARICA SISTEMA DE RECARGA REFILL SYSTEM
3 BATTERIA BATERÍA BATTERY
- 3.1 BATTERIA (<Serial No.: 3042012 Batterie 240Ah) BATERÍA (<Serial No.: 3042012 Batterie 240Ah) BATTERY (<Serial No.: 3042012 Batterie 240Ah)
- 3.2 AGM-BATTERIA (>Serial No.: 3042013 Batterie AGM 225Ah) AGM-BATERÍA (>Serial No.: 3042013 Batterie AGM 225Ah) AGM-BATTERY (>Serial No.: 3042013 Batterie AGM 225Ah)
- 3.3 BATTERIA (<Serial No.: 3042012 Batterie 300Ah) BATERÍA (<Serial No.: 3042012 Batterie 300Ah) BATTERY (<Serial No.: 3042012 Batterie 300Ah)
- 3.4 AGM-BATTERIA (>Serial No.: 3042013 Batterie AGM 300Ah) AGM-BATERÍA (>Serial No.: 3042013 Batterie AGM 300Ah) AGM-BATTERY (>Serial No.: 3042013 Batterie AGM 300Ah)
- 3.5 COMPONENTI PER BATTERIE (>Serial No.: 3042013 Batterie AGM) COMPONENTES DE LA BATERÍA (>Serial No.: 3042013 Batterie AGM) BATTERY ATTACHMENTS (>Serial No.: 3042013 Batterie AGM)
4 TRASLAZIONE E MOTORE PROPULSIÓN DE MARCHA DRIVE UNIT
- 4.1 COMPLESSO DEL FRENO MONTAJE DE FRENO BRAKE ASSEMBLY
- 4.2 CAVO PRINCIPALE CABLE PRINCIPAL MAIN CABLE
- 4.3 FISSAGGIO FIJACIÓN MOUNTING
- 4.4 MOTORE ELETTRICO ELECTROMOTOR ELECTRIC MOTOR
- 4.5 VENTILATORE VENTILADOR BLOWER
5 ASSE EJE AXLES
- 5.1 ASSE ANTERIORE (Front axle) EJE DELANTERO (Front axle) FRONT AXLE (Front axle)
- 5.2 ASSE POSTERIORE (Rear axle) EJE TRASERO (Rear axle) REAR AXLE (Rear axle)
- 5.3 FISSAGGIO FIJACIÓN MOUNTING
- 5.4 ALBERO CARDANICO ÁRBOL DE CARDÁN CARDAN SHAFT
6 COMPLESSO DEL FRENO MONTAJE DE FRENO BRAKE ASSEMBLY
- 6.1 COMPLESSO DEL FRENO MONTAJE DE FRENO BRAKE ASSEMBLY
- 6.2 PEDALE DEL FRENO PEDAL DE FRENADO BRAKE PEDAL
- 6.3 CILINDRO DEL FRENO PRINCIPALE CILINDRO PRINCIPAL DEL FRENO MASTERBRAKE CYLINDER
7 STERZO DIRECCIÓN STEERING UNIT
- 7.1 TUBI CILINDRO DELLO STERZO TUBO CILINDRO DE DIRECCIÓN TUBING STEERING CYLINDER
- 7.2 PERNO DEL FUSO A SNODO PERNO CILINDRO DIRECCIONAL STEERING RAM PIN
- 7.3 CILINDRO DELLO STERZO CILINDRO DE DIRECCIÓN STEERING CYLINDER
- 7.4 STERZO IDROSTATICO DIRECCIÓN HIDROSTÁTICA HYDROSTATIC STEERING
- 7.5 STERZO IDROSTATICO DIRECCIÓN HIDROSTÁTICA HYDROSTATIC STEERING
- 7.6 VOLANTE VOLANTE STEERING WHEEL
8 IDRAULICA DI LAVORO HIDRÁULICA DEL TRABAJO WORKING HYDRAULIC
- 8.1 IDRAULICA DI LAVORO HIDRÁULICA DEL TRABAJO WORKING HYDRAULIC
- 8.2 IDRAULICA DI LAVORO (val-bulkhead fitting<Serial No.:3043537) HIDRÁULICA DEL TRABAJO (val-bulkhead fitting<Serial No.:3043537) WORKING HYDRAULIC (val-bulkhead fitting<Serial No.:3043537)
- 8.3 IDRAULICA DI LAVORO (val-bulkhead fitting>Serial No.:3043538) HIDRÁULICA DEL TRABAJO (val-bulkhead fitting>Serial No.:3043538) WORKING HYDRAULIC (val-bulkhead fitting>Serial No.:3043538)
- 8.4 DISPOSIZIONE DI GALEGGIAMENTO (<06/2021) POSICIÓN DE DERIVACIÓN COMPLETA DEL CAUD (<06/2021) FLOATING POSITION (<06/2021)
- 8.5 DISPOSIZIONE DI GALEGGIAMENTO (>06/2021) POSICIÓN DE DERIVACIÓN COMPLETA DEL CAUD (>06/2021) FLOATING POSITION (>06/2021)
- 8.6 IDRAULICA DI LAVORO (standard) HIDRÁULICA DEL TRABAJO (standard) WORKING HYDRAULIC (standard)
- 8.7 IDRAULICA DI LAVORO (high lifting height) HIDRÁULICA DEL TRABAJO (high lifting height) WORKING HYDRAULIC (high lifting height)
- 8.8 IDRAULICA DI LAVORO (lowering brake valve) HIDRÁULICA DEL TRABAJO (lowering brake valve) WORKING HYDRAULIC (lowering brake valve)
- 8.9 IDRAULICA DI LAVORO (high lifting height lowering brake valve) HIDRÁULICA DEL TRABAJO (high lifting height lowering brake valve) WORKING HYDRAULIC (high lifting height lowering brake valve)
- 8.10 CIRCUITO DI COMANDO TERZO (standard) CIRCUITO ELECTRÓNICO DE CONTROL (standard) ELECTRICAL CONTROL CIRCUIT (standard)
- 8.11 CIRCUITO DI COMANDO TERZO (high lifting height) CIRCUITO ELECTRÓNICO DE CONTROL (high lifting height) ELECTRICAL CONTROL CIRCUIT (high lifting height)
- 8.12 CIRCUITO DI COMANDO TERZO (standard) CIRCUITO ELECTRÓNICO DE CONTROL (standard) ELECTRICAL CONTROL CIRCUIT (standard)
- 8.13 CIRCUITO DI COMANDO TERZO (high lifting height) CIRCUITO ELECTRÓNICO DE CONTROL (high lifting height) ELECTRICAL CONTROL CIRCUIT (high lifting height)
- 8.14 INTUBAMENTO CIRCUITO DI COMANDO TERZO TUBERÍA TERCER CIRCUITO DE MANDO PIPES SET 3.CIRCUIT
- 8.15 CIRCUITO DI COMANDO TERZO (comfort) CIRCUITO ELECTRÓNICO DE CONTROL (comfort) ELECTRICAL CONTROL CIRCUIT (comfort)
- 8.16 CIRCUITO DI COMANDO AGGIUNTIVO (comfort) CIRCUITO DE MANDO ADICIONAL (comfort) SUPPL. CONTROL CIRCUIT (comfort)
- 8.17 TUBAZIONE DI RITORNO CONDUCTO DE RETORNO REFLUX LINE
- 8.18 CIRCUITO DI COMANDO AGGIUNTIVO CIRCUITO DE MANDO ADICIONAL SUPPL. CONTROL CIRCUIT
- 8.19 LOCKING DEVICE (˃Serial No: 3065018 SSL DN10) DISPOSITIVO DE BLOQUEO (˃Serial No: 3065018 SSL DN10) LOCKING DEVICE (˃Serial No: 3065018 SSL DN10)
- 8.20 LOCKING DEVICE (˃Serial No: 3065018 SSL DN12) DISPOSITIVO DE BLOQUEO (˃Serial No: 3065018 SSL DN12) LOCKING DEVICE (˃Serial No: 3065018 SSL DN12)
- 8.21 CILINDRO SOLLEVAMENTO BRACCIO (standard) CILINDRO ELEVADOR (standard) LIFT CYLINDER (standard)
- 8.22 CILINDRO SOLLEVAMENTO BRACCIO (lowering brake valve left) CILINDRO ELEVADOR (lowering brake valve left) LIFT CYLINDER (lowering brake valve left)
- 8.23 CILINDRO SOLLEVAMENTO BRACCIO (lowering brake valve right) CILINDRO ELEVADOR (lowering brake valve right) LIFT CYLINDER (lowering brake valve right)
- 8.24 CILINDRO RIBALTABILE (standard) CILINDRO VOLCADOR (standard) TILT RAM (standard)
- 8.25 CILINDRO RIBALTABILE (high lifting height) CILINDRO VOLCADOR (high lifting height) TILT RAM (high lifting height)
- 8.26 CILINDRO RIBALTABILE (lowering brake valve) CILINDRO VOLCADOR (lowering brake valve) TILT RAM (lowering brake valve)
- 8.27 CILINDRO RIBALTABILE (high lifting height lowering brake valve) CILINDRO VOLCADOR (high lifting height lowering brake valve) TILT RAM (high lifting height lowering brake valve)
- 8.28 CAVO PRINCIPALE CABLE PRINCIPAL MAIN CABLE
- 8.29 FISSAGGIO FIJACIÓN MOUNTING
- 8.30 MOTORE ELETTRICO ELECTROMOTOR ELECTRIC MOTOR
- 8.31 PARTE ANNESSE DELLA POMPA (12ccm Silence Plus) COMPONENTES ADICIONALES BOMBA (12ccm Silence Plus) MOUNTING SET PUMP (12ccm Silence Plus)
- 8.32 POMPA A INGRANAGGI (12ccm Silence Plus exploded view) BOMBA DE ENGRANAJES (12ccm Silence Plus exploded view) GEAR PUMP (12ccm Silence Plus exploded view)
- 8.33 FISSAGGIO (HDM11S/3 / HDM11S/4) FIJACIÓN (HDM11S/3 / HDM11S/4) MOUNTING (HDM11S/3 / HDM11S/4)
- 8.34 AZIONAMENTO (HDM11S/3 / HDM11S/4) ACCIONAMIENTO (HDM11S/3 / HDM11S/4) CONTROL LEVER (HDM11S/3 / HDM11S/4)
- 8.35 VITE DELLA VALVOLA CONGIUNTA (HDM11S/3) ATORNILLE LA VÁLVULA CONJUNTA (HDM11S/3) SCREW JOINT VALVE (HDM11S/3)
- 8.36 VALVOLA DI COMANDO (HDM11S/3 exploded view) VÁLVULA PILOTO (HDM11S/3 exploded view) CONTROL VALVE (HDM11S/3 exploded view)
- 8.37 VITE DELLA VALVOLA CONGIUNTA (HDM11S/4) ATORNILLE LA VÁLVULA CONJUNTA (HDM11S/4) SCREW JOINT VALVE (HDM11S/4)
- 8.38 VALVOLA DI COMANDO (HDM11S/4 exploded view) VÁLVULA PILOTO (HDM11S/4 exploded view) CONTROL VALVE (HDM11S/4 exploded view)
- 8.39 FILTRO IDRAULICA FILTRO HIDRAULICO HYDRAULIC OILFILTER
- 8.40 DISTRIBUTORE (comfort) VÁLVULA DISTRIBUIDORA (comfort) DRIVE VALVE (comfort)
- 8.41 PEDALE IDRAULICA AUSILIARIA (Quick release fastener) HIDRÁULICA SECUNDARIA (Quick release fastener) AUXILARY HYDRAULICS (Quick release fastener)
- 8.42 INNESTO RAPIDO (Quick release fastener) ACOPLAMIENTO DE CIERRE RÁPIDO (Quick release fastener) QUICK LOCK COUPLING (Quick release fastener)
- 8.43 VALVOLA ELETTROMAGNETICA (tool locking round execution 1000243814) VÁLVULA MAGNÉTICA (tool locking round execution 1000243814) SOLENOID VALVE (tool locking round execution 1000243814)
- 8.44 VALVOLA ELETTROMAGNETICA (tool locking square execution 1000411990) VÁLVULA MAGNÉTICA (tool locking square execution 1000411990) SOLENOID VALVE (tool locking square execution 1000411990)
- 8.45 DISPOSIZIONE DI GALEGGIAMENTO (Lift-/Tilt cylinder>SN 3073239) POSICIÓN DE DERIVACIÓN COMPLETA DEL CAUD (Lift-/Tilt cylinder>SN 3073239) FLOATING POSITION (Lift-/Tilt cylinder>SN 3073239)
- 8.46 DISPOSIZIONE DI GALEGGIAMENTO (Lift-/Tilt cylinder comfort>SN 3073239) POSICIÓN DE DERIVACIÓN COMPLETA DEL CAUD (Lift-/Tilt cylinder comfort>SN 3073239) FLOATING POSITION (Lift-/Tilt cylinder comfort>SN 3073239)
9 ELETTRICO SISTEMA ELÉCTRICO ELECTRIC
- 9.1 CRUSCOTTO PANEL DE INSTRUMENTOS INSTRUMENT PANEL
- 9.2 PIANTONE DEL VOLANTE COLUMNA DE DIRECCIÓN STEERING COLUMN
- 9.3 PIANTONE DEL VOLANTE COLUMNA DE DIRECCIÓN STEERING COLUMN
- 9.4 STRUMENTO INDICATORE INSTRUMENTO INDICADOR INDICATOR INSTRUMENT
- 9.5 ELETTRICO SISTEMA ELÉCTRICO ELECTRIC
- 9.6 ILLUMINAZIONE LUZ LIGHTING
- 9.7 ILLUMINAZIONE DI LAVORO LUZ DEL TRABAJO WORKING LIGHTING
- 9.8 ILLUMINAZIONE DI LAVORO (LED 2000Lm) LUZ DEL TRABAJO (LED 2000Lm) WORKING LIGHTING (LED 2000Lm)
- 9.9 PROIETTORE GIREVOLE DI RICONOSCIMENTO FARO ROTATORIO ROTATING BEACON
- 9.10 CABLE-SET CABLE- JUEGO CABLE-SET
- 9.11 PRESA CAJA DE ENCHUFE SOCKET PLUG
- 9.12 FISSAGGIO FIJACIÓN MOUNTING
- 9.13 CONTATTORE PRINCIPALE CONTACTOR PRINCIPAL MAIN CONTACTOR
- 9.14 SUPPORTO SOPORTE BRACKET
- 9.15 SUPPORTO SOPORTE BRACKET
- 9.16 ELECTRONICS ELECTRONICA ELECTRONICS
- 9.17 FISSAGGIO (250W) FIJACIÓN (250W) MOUNTING (250W)
- 9.18 TRASFORMATORE DI TENSIONE (250W) TRANSFORMADOR DE TENSIÓN (250W) TENSION CONVERTER (250W)
- 9.19 FISSAGGIO (400W) FIJACIÓN (400W) MOUNTING (400W)
- 9.20 TRASFORMATORE DI TENSIONE (400W) TRANSFORMADOR DE TENSIÓN (400W) TENSION CONVERTER (400W)
- 9.21 CIRCUITO DI CARICA CIRCUITO DE CARGA CHARGING CIRCUIT
- 9.22 ELECTRONICS ELECTRONICA ELECTRONICS
- 9.23 PEDALE DELL’ACCELERATORE ACELERADOR DE PEDAL ACCELERATOR PEDAL
- 9.24 CABLAGGIO PRINCIPALE (<Serial No.3034631) ARNÉS PRINCIPAL (<Serial No.3034631) MAIN HARNESS (<Serial No.3034631)
- 9.25 CABLAGGIO PRINCIPALE (>Serial No.3034632) ARNÉS PRINCIPAL (>Serial No.3034632) MAIN HARNESS (>Serial No.3034632)
- 9.26 TRASFORMATORE DI TENSIONE TRANSFORMADOR DE TENSIÓN TENSION CONVERTER
- 9.27 TRASFORMATORE DI TENSIONE TRANSFORMADOR DE TENSIÓN TENSION CONVERTER
- 9.28 TRASFORMATORE DI TENSIONE TRANSFORMADOR DE TENSIÓN TENSION CONVERTER
- 9.29 FASCIO DI CABLAGGIO MAZO DE CABLES WIRING HARNESS
- 9.30 FASCIO DI CABLAGGIO MAZO DE CABLES WIRING HARNESS
- 9.31 FASCIO DI CABLAGGIO MAZO DE CABLES WIRING HARNESS
- 9.32 F.D.C. SEDE MAZO DE CABLES ASIENTO WIRING HARNESS SEAT
- 9.33 FASCIO DI CABLAGGIO SEDILE DI GUIDA MAZO DE CABLES ASIENTO DEL CONDUCTOR WIRING HARNESS OPERATOR’S SEAT
- 9.34 FASCIO DI CABLAGGIO ILLUMINAZIONE MAZO DE CABLES LUZ WIRING HARNESS LIGHTING
- 9.35 FASCIO DI CABLAGGIO ILLUMINAZIONE MAZO DE CABLES LUZ WIRING HARNESS LIGHTING
- 9.36 KIT RICOSTRUCZIONE – OMOLOGAZIONE KIT EQUIPAMIENTO – HOMOLOGACIÓN RETROFIT KIT – HOMOLOGATION
- 9.37 FASCIO DI CABLAGGIO MAZO DE CABLES WIRING HARNESS

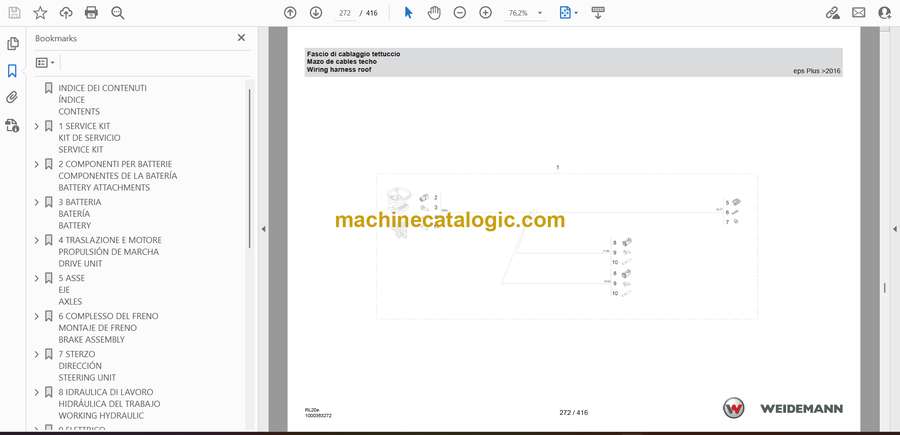

- 9.38 FASCIO DI CABLAGGIO TETTUCCIO (eps Plus >2016) MAZO DE CABLES TECHO (eps Plus >2016) WIRING HARNESS ROOF (eps Plus >2016)
- 9.39 FASCIO DI CABLAGGIO MAZO DE CABLES WIRING HARNESS
10 PNEUMATICO NEUMÁTICO TYRE
- 10.1 PNEUMATICO (215x 630) NEUMÁTICO (215x 630) TYRE (215x 630)
- 10.2 PNEUMATICO (270x 790) NEUMÁTICO (270x 790) TYRE (270x 790)
- 10.3 PNEUMATICO (270x 930) NEUMÁTICO (270x 930) TYRE (270x 930)
- 10.4 PNEUMATICO (380x 970) NEUMÁTICO (380x 970) TYRE (380x 970)
- 10.5 PARAFANGO (small) ALERO (small) WHEEL COVER (small)
- 10.6 PARAFANGO (wide) ALERO (wide) WHEEL COVER (wide)
- 10.7 TRACK WIDENER ENSANCHADOR DE VÍAS TRACK WIDENER
11 TELAIO BASTIDOR FRAME
- 11.1 TELAIO PARTE ANTERIORE BASTIDOR PARTE DELANTERA FRONT PART FRAME
- 11.2 PARTE PARTI POSTERIORI (<Serial No.:3042011) BASTIDOR TRASERO (<Serial No.:3042011) REAR PART CHASSIS (<Serial No.:3042011)
- 11.3 PARTE PARTI POSTERIORI (>Serial No.:3042012) BASTIDOR TRASERO (>Serial No.:3042012) REAR PART CHASSIS (>Serial No.:3042012)
- 11.4 SNODO DI PIEGATURA ARTICULACIÓN DE PANDEO PIVOT BLOCK
- 11.5 SERBATOIO IDRAULICO DEPÓSITO HIDRAÚLICO HYDRAULIC TANK
- 11.6 FISSAGGIO FIJACIÓN MOUNTING
- 11.7 FRIZIONE (Self-securing coupling) ACOPLAMIENTO (Self-securing coupling) COUPLING (Self-securing coupling)
12 RIVESTIMENTO REVESTIMIENTO TRIM
- 12.1 COFANO MOTORE CUBIERTA DE MOTOR ENGINE HOOD
- 12.2 CERNIERA COFANO BISAGRA HINGE
- 12.3 AMMORTIZZATORE PNEUMATICO (A GAS) MUELLE DE ACELERADOR GAS STRUT
- 12.4 CHIUSURA DEL COFANO MOTORE CERRADURA DE CUBIERTA DE MOTOR BONNET LOCK
- 12.5 LOCKING PLATE BLOQUEO DE LA PLACA LOCKING PLATE
13 IMPIANTO DI CARICAMENTO/BRACCIO PRINCIPA SISTEMA DE CARGA/BRAZO DE ELEVACIO+BALAC LOADING SYSTEM/ARMSYSTEM
- 13.1 IMPIANTO DI CARICAMENTO/BRACCIO PRINCIPA (STANDARD) SISTEMA DE CARGA/BRAZO DE ELEVACIO+BALAC (STANDARD) LOADING SYSTEM/ARMSYSTEM (STANDARD)
- 13.2 IMPIANTO DI CARICAMENTO/BRACCIO PRINCIPA (HIGH LIFTING HEIGHT) SISTEMA DE CARGA/BRAZO DE ELEVACIO+BALAC (HIGH LIFTING HEIGHT) LOADING SYSTEM/ARMSYSTEM (HIGH LIFTING HEIGHT)
- 13.3 PIASTRA A CAMBIO RAPIDO (WM-MECH.) PLANCHA DE CAMBIO RÁPIDO (WM-MECH.) QUICKHITCH PLATE (WM-MECH.)
- 13.4 PIASTRA A CAMBIO RAPIDO (WM-HYDR.) PLANCHA DE CAMBIO RÁPIDO (WM-HYDR.) QUICKHITCH PLATE (WM-HYDR.)
- 13.5 PIASTRA A CAMBIO RAPIDO (EUROKAT) PLANCHA DE CAMBIO RÁPIDO (EUROKAT) QUICKHITCH PLATE (EUROKAT)
- 13.6 PIASTRA A CAMBIO RAPIDO (SMS) PLANCHA DE CAMBIO RÁPIDO (SMS) QUICKHITCH PLATE (SMS)
- 13.7 PIASTRA A CAMBIO RAPIDO (Compact mechanical lock) PLANCHA DE CAMBIO RÁPIDO (Compact mechanical lock) QUICKHITCH PLATE (Compact mechanical lock)
- 13.8 PIASTRA A CAMBIO RAPIDO (Compact hydraulic lock <Ser.No.: 3065021) PLANCHA DE CAMBIO RÁPIDO (Compact hydraulic lock <Ser.No.: 3065021) QUICKHITCH PLATE (Compact hydraulic lock <Ser.No.: 3065021)
- 13.9 PIASTRA A CAMBIO RAPIDO (Compact hydraulic lock >Ser.No.: 3065022) PLANCHA DE CAMBIO RÁPIDO (Compact hydraulic lock >Ser.No.: 3065022) QUICKHITCH PLATE (Compact hydraulic lock >Ser.No.: 3065022)
- 13.10 PIASTRA A CAMBIO RAPIDO (HAUER-HV) PLANCHA DE CAMBIO RÁPIDO (HAUER-HV) QUICKHITCH PLATE (HAUER-HV)
- 13.11 PIASTRA A CAMBIO RAPIDO (WM-ECS DN10) PLANCHA DE CAMBIO RÁPIDO (WM-ECS DN10) QUICKHITCH PLATE (WM-ECS DN10)
- 13.12 ATTACCO RAPIDO IDRAULICAMENTE (ECS Machine side) ENGANCHE RÁPIDO HIDRÁULICAMENTE (ECS Machine side) QHS HYDRAULICALLY (ECS Machine side)
- 13.13 ATTACCO RAPIDO IDRAULICAMENTE (ECS Attachment) ENGANCHE RÁPIDO HIDRÁULICAMENTE (ECS Attachment) QHS HYDRAULICALLY (ECS Attachment)
- 13.14 SPESSORE DI RASAMENTO DISCO DE AJUSTE FITTING DISC
14 PEDANA PLANCHA DE PASO STEP PLATE
- 14.1 PEDANA (<Serial No.:3024012) PLANCHA DE PASO (<Serial No.:3024012) STEP PLATE (<Serial No.:3024012)
- 14.2 PEDANA (>Serial No.:3042012) PLANCHA DE PASO (>Serial No.:3042012) STEP PLATE (>Serial No.:3042012)
- 14.3 TETTOIA (Safety roof driver) TECHO PROTCTOR (Safety roof driver) PROTECTING ROOF (Safety roof driver)
- 14.4 LUNOTTO POSTERIORE CRISTAL TRASERO REAR WINDOW
- 14.5 PORTIERA DELLA CABINA (right) PUERTA DE CABINA (right) CAB DOOR (right)
- 14.6 PORTIERA DELLA CABINA (left) PUERTA DE CABINA (left) CAB DOOR (left)
- 14.7 TETTOIA (Safety roof driver foldable) TECHO PROTCTOR (Safety roof driver foldable) PROTECTING ROOF (Safety roof driver foldable)
- 14.8 TETTOIA (eps Plus ab 2016) TECHO PROTCTOR (eps Plus ab 2016) PROTECTING ROOF (eps Plus ab 2016)
- 14.9 IDRAULICA (eps Plus ab 2016) HIDRÁULICA (eps Plus ab 2016) HYDRAULICS (eps Plus ab 2016)
- 14.10 SEDILE MSG 20 ASIENTO MSG 20 SEAT MSG 20
- 14.11 SEDILE DI GUIDA A SOSPENSIONE PN ASIENTO DEL CONDUCTOR DE RESORTE AIRSUSP.SEAT
- 14.12 FODERA FUNDA SLIP-COVER
- 14.13 BOX DEI DOCUMENTI CAJA DE DOCUMENTOS DOCUMENTS BOX
- 14.14 BRACCIOLO APOYABRAZOS ARM REST
15 OPZIONE OPCIÓN OPTION
- 15.1 KIT RICOSTRUCZIONE KIT EQUIPAMIENTO RETROFIT KIT
- 15.2 COATING RECUBRIMIENTO COATING
- 15.3 INGRASSATORE A SIRINGA ACEITERA A PRESIÓN GREASE PRESS
- 15.4 ACCESSORI ACCESORIO ACCESSORIES
- 15.5 BORSA BOLSA BAG
- 15.6 S. TARGA SOPORTE PLACA DE MATRÍCULA BRACKET IMMATRICULATION PLATE
16 ACCESSORI ACCESORIO ACCESSORIES
- 16.1 EARTH SHOVEL PALA DE TRACTOR EARTH SHOVEL
- 16.2 FORCA PER PALLET HORQUILLA DE PALETAS PALLET FORKS
- 16.3 CROCODILE TEETH PINZAS DE COCODRILO CROCODILE TEETH
17 DOCUMENTAZIONE DELLE MACCHINE DOCUMENTACIÓN DE MÁQUINAS MACHINE DOCS.
- 17.1 ETTICHETTA ADESIVA ETIQUETA ADHESIVA STICKER
- 17.2 DOCUMENTAZIONE DELLE MACCHINE (<Serial No.: 3042012) DOCUMENTACIÓN DE MÁQUINAS (<Serial No.: 3042012) MACHINE DOCS. (<Serial No.: 3042012)
- 17.3 DOCUMENTAZIONE DELLE MACCHINE (>Serial No.: 3042012) DOCUMENTACIÓN DE MÁQUINAS (>Serial No.: 3042012) MACHINE DOCS. (>Serial No.: 3042012)
- 17.4 ISTRUZIONI INSTRUCCIONES INSTRUCTION
