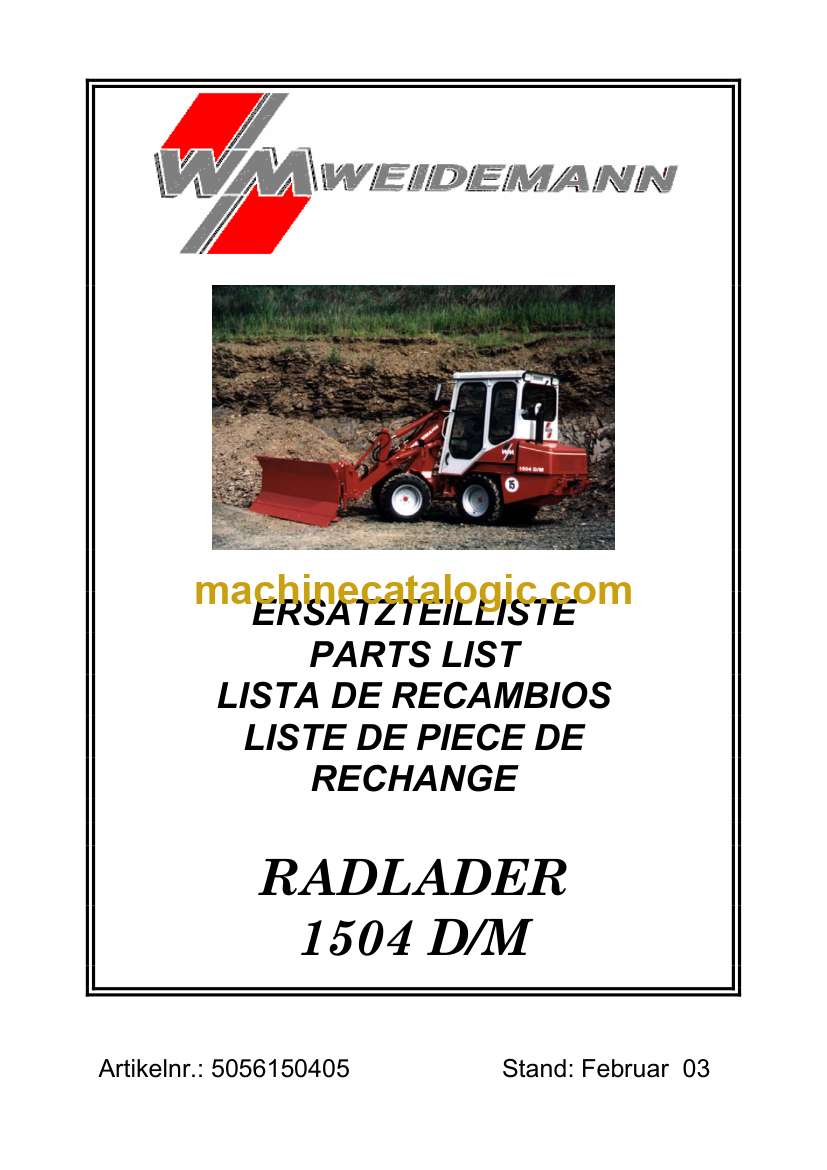

Weidemann 1504 D/M Radlader Parts Catalog

Weidemann 1504 D-M Radlader Parts Catalog

A Weidemann 1504 D/M wheel loader usually lives in tight farm yards, small construction sites, and material yards, loading feed, gravel, or pallets all day. This parts catalog is what I pull up when I need to see exactly how an assembly is built and which version of a part belongs on your specific machine. If, for example, you’ve got a leaking lift cylinder or a sloppy loader joint, I use this book to trace every seal, bushing, and pin so we don’t miss a small piece that stops the whole repair.

Applications & Use Cases

Identify correct part variants when there were mid‑series changes to axles, hydraulics, or cab components.
Use exploded views to see how pins, shims, and spacers stack so reassembly matches factory alignment.
Verify seal kits and O-rings for cylinders, valves, and pumps before opening the hydraulic system.
Cross-check hardware like special bolts, washers, and locking elements that are easy to overlook.
Plan orders so all wear parts for a service job arrive together, reducing machine downtime.

FAQ

Q: Can I use this catalog on a tablet in the workshop?

A: Yes, it’s practical on a tablet; you can zoom into the exploded views to read part callouts clearly.

Q: Is it worth printing pages from this catalog?

A: Many techs print the specific assemblies they’re working on, then mark notes or circle the parts to order.

Safety Note

Always verify parts visually on the machine and depressurize hydraulic systems before disassembly.

📘 Show Index

Weidemann 1504 D-M Radlader Index:

8-9 Wichtige Hinweise Important Notices Notices Importantes Observaciones Importantes
10-11 Filtersatz filter set Jeu de filtres Juego del filtros
1 12-17 Vorder- und Hinterwagen Front and rear cariiage Partie avant et arriere Parte Delantera Y Trasera
2 18-21 Mittelgelenk Central joint Pivot Centrale Rótula central
4 22-27 Kabine Unterteil cabin lower part cabine partie infer. cabina parte inferior
3 28-37 Kabine Oberteil cabin upper part cabine partie super. cabina parte superior
38-39 Heizung I heating I chauffage I calentamiento I
40-41 Heizung II heating II chauffage II calentamiento II
5 42-45 Motorhaube engine bonnet capot capó
46-49 Dämmatten insulating material material isolant material de insonorización
6 50-53 Schwinge I HV Loading arm I HV Bras chargeur I HV Brazo de carga I HV
54-57 Schwinge II HV Loading arm II HV Bras chargeur II HV Brazo de carga II HV
7 58-65 Motor engine moteur motor
66-69 Auspuff + Luftfilteranlage exhaust and air filter system echappement et systeme filtre
d’air
escape ysistema del filtro de aire
70-71 Gasbetätigung accelerator accelérateur acelerador
72-73 Inchbetätigung inch control commande inch actividad inch

74-79 Kraftstoffanlage Fuel system Systeme de combustible Dépositó de carburante
9 80-85 Elektrische Anlage I electrical system I systeme electrique I sistema electrico I
86-93 Elektrische Anlage II m. SG electrical system II systeme electrique II sistema electrico II
10 94-97 Armaturenlenksäule I grau dashboard I grey tableau de bord I gris tablero de mando I gris
98-101 Armaturenlenksäule II
schwarz
dashboard II Black tableau de bord II noir tablero de mando II negro
102 Stromlaufplan electrical wiring diagramme schéme de couplage électriq. dagrama de circuito eléctrico
103 Hydrauliklaufplan Hydraulic wiring diagramme Schéme de couplage hydr. Diagrama de circuito hidráulico
11 104-107 Verstellpumpe Variable displacement pump Pompe à débit variable Bomba de caudal variable
108-117 Fahrhydraulik I o. SG Driving hydraulic I Transmission hydraul. I Transmission hidráulica I
118-127 Fahrhydraulik II m. SG Driving hydraulic II Transmission hydraul. II Transmission hidráulica II
12 128-135 Lenkanlage Steering system Systeeme de direction sistema de dirección
13 136-145 Hydraulikanlage DN 12 HV I Hydraulic System DN 12 I Système hydraulique DN 12 I Sistema hidráulica DN 12 I
146-153 Hydraulikanlage DN 12 HV II Hydraulic System DN 12 II Système hydraulique DN 12 II Sistema hidráulica DN 12 II
154-159 Kreuzsteuerventil Cross steering valve distributeur hydraul. válvula de mando en cruz
14 160-165 Bremsanlage Brake system Système des freins Sistema de frenos
166-171 Vorderachse bis 09.98 Front axle Essieu avant Eje delantera

172-177 Vorderachse ab 09.98 Front axle Essieu avant Eje delantera
15 178-183 Achsantrieb hinten o.SG bis
09/98
Rear gear box Boite de vitesse ar. Caja de cambios tras.
184-189 Achsantrieb hinten m.SG ab
09/98
Rear gear box Boite de vitesse ar. Caja de cambios tras.
16 190-193 Erdschaufel Bucket earth Godet Cuchara de tierra
194-201 Uni-Schaufel universal bucket pelle universelle cuchara universal
202-203 Palettengabel bis 10.97 pallet forks palettiseur horquilla de palet
204-205 Palettengabel ab 10.97 pallet forks palettiseur horquilla de palet
