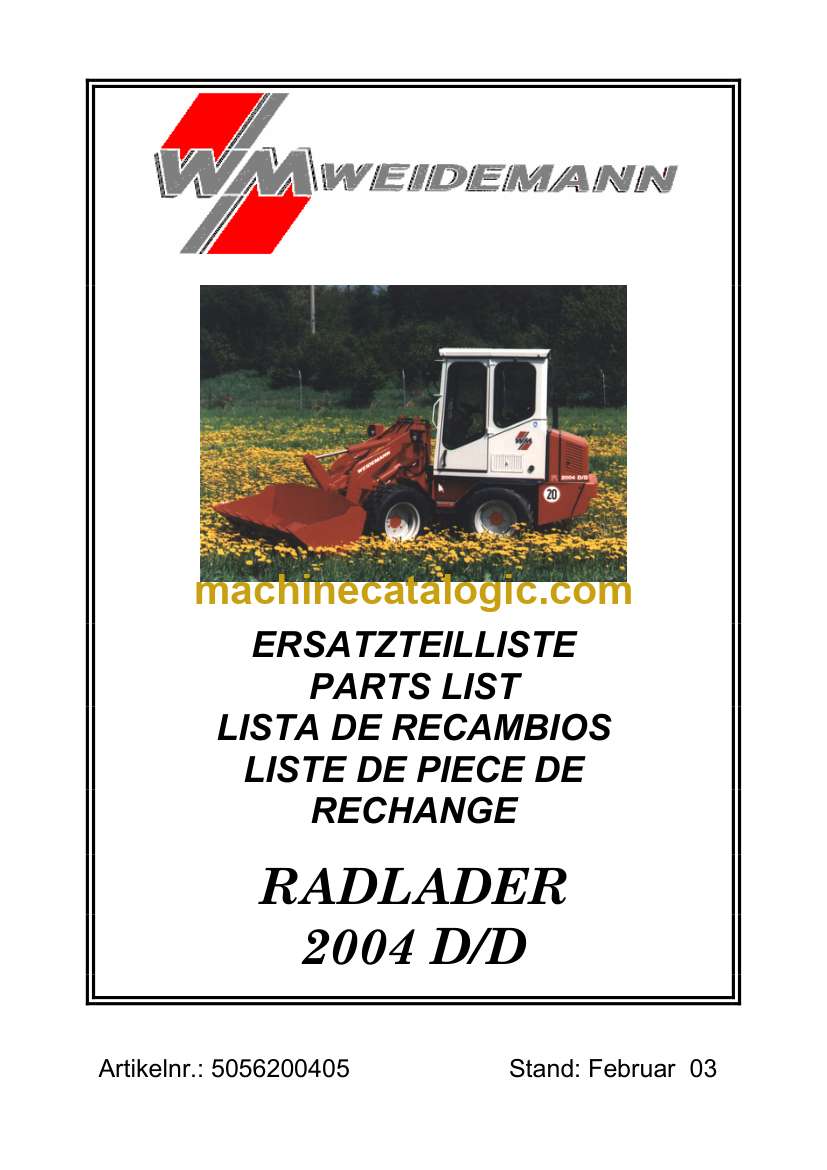

Weidemann 2004 D/D Radlader Parts Catalog

Weidemann 2004 D-D Radlader Parts Catalog (5056200405)

A Weidemann 2004 D/D wheel loader spends its life in tight yards, barns, and construction sites, shuttling pallets, feed, and bulk material. This parts catalog is what I’d keep open when I’m rebuilding an axle, chasing a hydraulic leak, or swapping out worn pins and bushings. When, for example, you find play in the front carriage or a cracked hose block, this book lets you pinpoint the exact version of the component and every seal and fastener that goes with it so you don’t tear it down twice.

Applications & Use Cases

Trace assemblies from the front and rear carriage down to individual pins, shims, and bushings before disassembly.
Confirm the correct revision of a part when several similar valves, cylinders, or brackets exist for different build years.
Verify all sealing elements—O-rings, gaskets, dust caps—so nothing gets missed on a hydraulic or axle repair.
Cross-check hardware (bolts, washers, circlips) to make sure you have a complete kit laid out before starting the job.
Order the right filters and service items for scheduled maintenance without guessing from generic catalogs.

FAQ

Q: Can I use this catalog on a tablet at the machine?

A: Yes, it’s practical to keep it on a tablet or laptop so you can zoom into exploded views right beside the loader.

Q: Is it worth printing pages from this catalog?

A: Many techs print just the relevant assemblies and take them to the bench to mark parts and notes during teardown.

Safety Note

Always verify parts against the machine’s identification plate and follow the manufacturer’s safety instructions before any work.

📘 Show Index

Weidemann 2004 D-D Radlader Index:

10-11 Filtersatz filter set jeu de filtres juego de filtros
1 12-19 Vorder- und Hinterwagen Front and rear carriage Partie avant et arriere Parte Delantera y trasera
2 20-23 Mittelgelenk Central joint Pivot Centrale Rótula central
3 24-31 Kabine Unterteil Cabin lower part Cabine partie inférieur Cabina parte inferior
32-39 Kabine Oberteil Cabin upper part Cabina partie superior Cabina parte superior
4 40-43 Kippvorrichtung Tipping device Dispositif de culbutage Dispositif basculante
44-47 Heizung I Heating I Chauffage I Calefacción I
48-49 Heizung II Heating II Chauffage II Calefacción II
50-53 Motorhaube engine bonnet capot capó

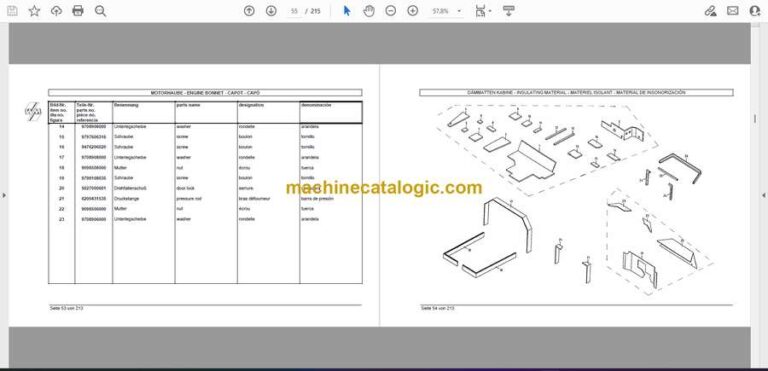

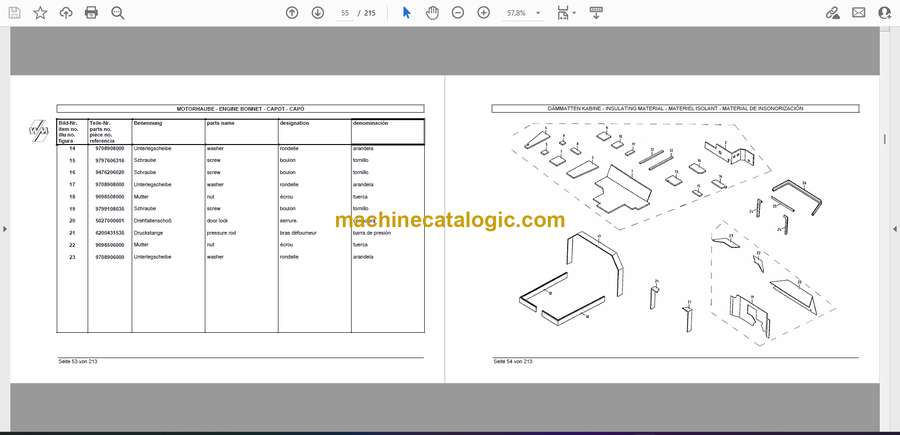

54-59 Dämmatten Insulating material Materiel isolant
marchepied
Material de insonorizacion
5 60-65 Schwinge I HV Loading arm HV Bras chargeur HV Brazo de cargo HV
66-69 Schwinge II HV Loading arm HV Bras chargeur HV Brazo de cargo HV
6 70-75 Motor und Anbauteile Engine and parts Moteur et pieces Motor y piezas
76-79 Auspuff und Luftfilter Exhaust and air filter Echappement et filtre d´air Escape y filtro de aire
80-81 Gasbetätigung accelerator accelerateur acelerador

82-85 Kraftstofftank Fuel tank Réservoir de carburant Depósito de carburante
8 86-91 Elektr. Anlage Electric system
diagramme
Systéme électriqe
électrique
Sistema electrico
eléctrico
9 92-95 Amaturenlenksäule Dashboard Tableau de bord Tablero de mando
96 Elektro-Schaltplan Elektrical wiring Scheme de couplage Diagrama de circuito
10 97 Hydraulikschaltplan Hydraulic wiring
diagramme
Scheme de couplage
hydraulique
Diagrama de circuito
98-101 Verstellpumpe Variable displacement
pump
Pompe á débit variable Bomba de caudal variable
102-113 Fahrhydraulik I Driving hydraulic I Transmission hydraulique I Transmision hidraulica I
114-125 Fahrhydraulik II Driving hydraulic II Transmission hydraulique II Transmision hidraulica II
11 126-135 Lenkanlage Steering system Systém de direction Sistema de dirección
12 136-145 Hydraulikanlagen DN 10 Hydraulic system DN 10 Systeme hydraulique
DN 10
Sistema hydraulica DN 10
146-155 Hydraulikanlagen DN 12 Hydraulic system DN 12 Systeme hydraulique
DN 12
Sistema hydraulica DN 12
156-163 Hydraulikanlage Standard
2 Dreiwegehähne
Hydraulic system standard
2 three way tap
Système hydraulique
standard vanne á 3 voies
Sistema hidráulica standard
grifo de 3 vìas
164-169 Kreuzsteuerventil Cross steering valve Commande hydraulique Valvula de mando en cruz

170-179 Bremsanlage Brake system Systéme des freins Sistema de frenos
13 180-187 Achsantrieb vorn Front gear box Boîte de vitesse av. Caja de cambios del.
14 188-193 Achsantrieb hinten Rear gear box Boîte de vitesse ar. Caja de cambios tras.
15 196-197 Erdschaufel Bucket earth Godet Cuchara de tierra
198-203 Uni-Schaufel I Bucket I Godet I Cuchara I
204-211 Uni-Schaufel II Bucket II Godet II Cuchara II
212-213 Palettengabel Pallet forks Palettiseur Horquillas de palet
