Format: PDF (Printable Document)
File Language: it, es, en
File Pages: 603
File Size: 9.09 MB (Speed Download Link)
Brand: Weidemann
Model: 2070CX50LP Tele Wheel Loader
Book No: 2070CX50LPT_06 _2008

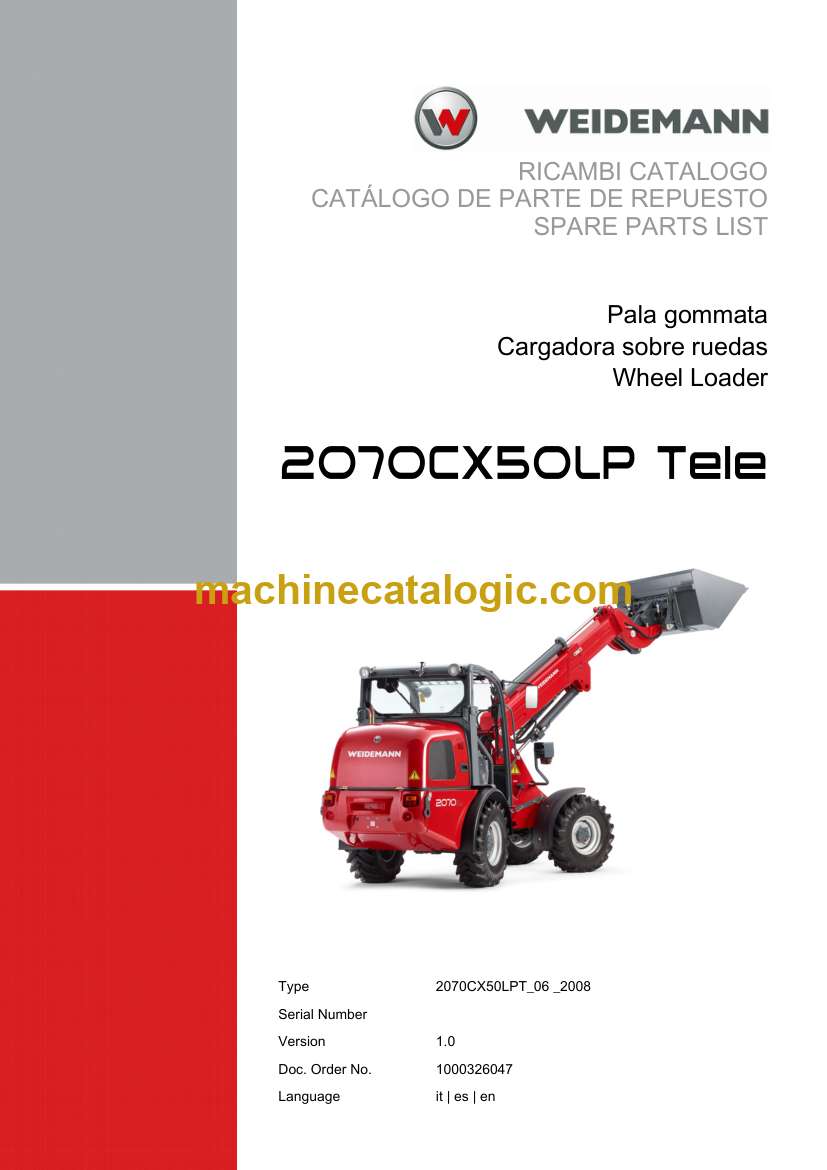

Type of Document: Spare Parts Catalog
$ 45
On a Weidemann 2070CX50LP tele wheel loader that spends its life shuttling pallets, feed, or bulk material around tight farmyards and construction sites, this parts catalog is what I’d keep open while the machine is stripped down. It lets you match exactly what’s fitted on your loader to the right replacement parts, especially when there have been running changes. If, for example, you bend a telescopic boom section or find play in the headstock, this book helps you trace every pin, bushing, shim, and seal so nothing gets missed when you put it back together.
Applications & Use Cases
FAQ
Q: Can I use this catalog on a tablet in the workshop?

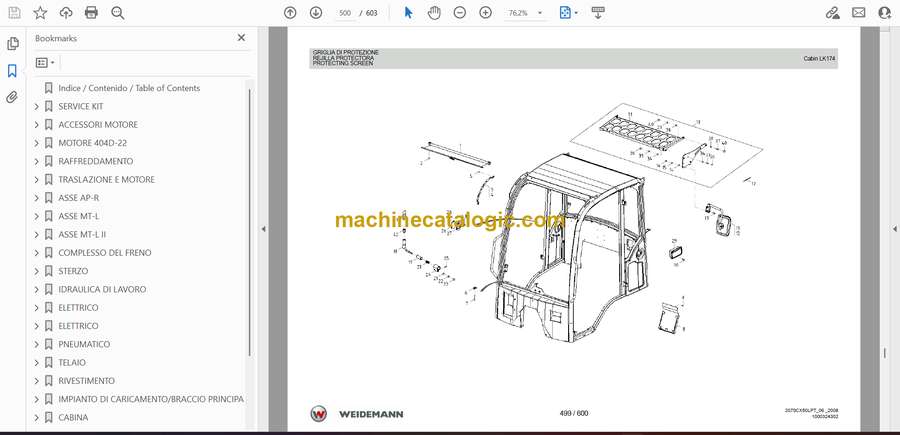

A: Yes, it’s practical to zoom in on exploded views and part numbers right at the machine.
Q: Is it worth printing sections of this catalog?
A: Many techs print the relevant assemblies so they can mark notes, circle parts, and keep it beside the job.
Safety Note
Always isolate the machine, secure raised components, and follow lockout procedures before inspecting or replacing any parts.
