Weidemann 3002 D/P Wheel Loader Parts Catalog

Format: PDF (Printable Document)

File Language: English

File Pages: 387

File Size: 11.55 MB (Speed Download Link)

Brand: Weidemann

Model: 3002 D-P Wheel Loader

Type of Document: Parts Catalog

Categories: PDF, Weidemann

$ 45

Weidemann 3002 D/P Wheel Loader Parts Catalog

Weidemann 3002 D-P Wheel Loader Parts Catalog

The Weidemann 3002 D/P wheel loader usually lives in tight farm yards, small construction sites, and material yards, loading manure, gravel, pallets, and feed all day. This parts catalog is what I keep beside me when I’m tearing down or rebuilding assemblies and need to match the exact parts revision on an older machine. If, for example, you’re chasing a sloppy loader arm or a leaking hydraulic joint, this book lets you trace the correct pins, bushings, seals, and fittings so you don’t guess or order the wrong style.

Applications & Use Cases

Identify the correct exploded assembly when stripping down axles, loader arms, or the front frame.
Cross-check small wear items—O-rings, shims, circlips—that are easy to miss during ordering.
Distinguish between different production versions so hoses, cylinders, and brackets actually fit your serial range.
Verify all related hardware (bolts, washers, lock nuts) before reassembly, avoiding repeated trips to the dealer.
Plan a preventive maintenance parts list—filters, belts, common seals—before a scheduled shutdown.

FAQ

Q: Can I use this catalog on a tablet in the workshop?

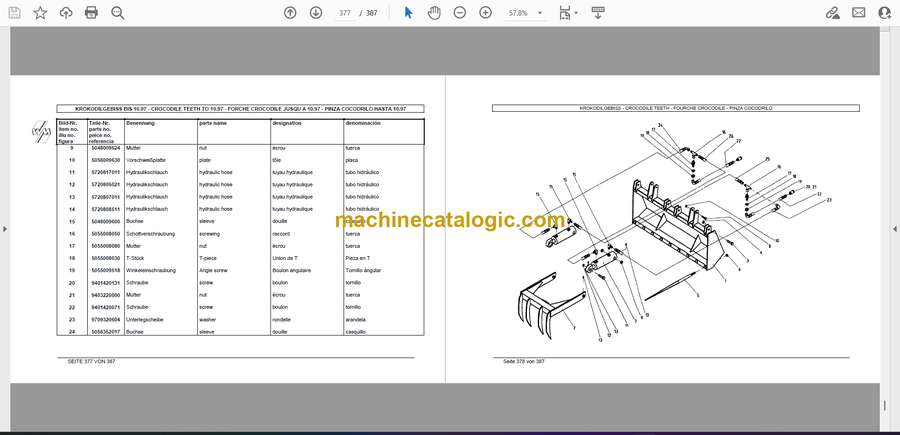

A: Yes, it’s practical to zoom in on exploded views on a tablet or laptop, which helps confirm small parts and routing.

Q: Is it worth printing sections of this catalog?

A: Many techs print the relevant assemblies for a job, mark them with notes or torque reminders, and keep them with the work order.

Safety Note

Always isolate the machine, relieve hydraulic pressure, and follow lockout procedures before removing or installing any parts.
